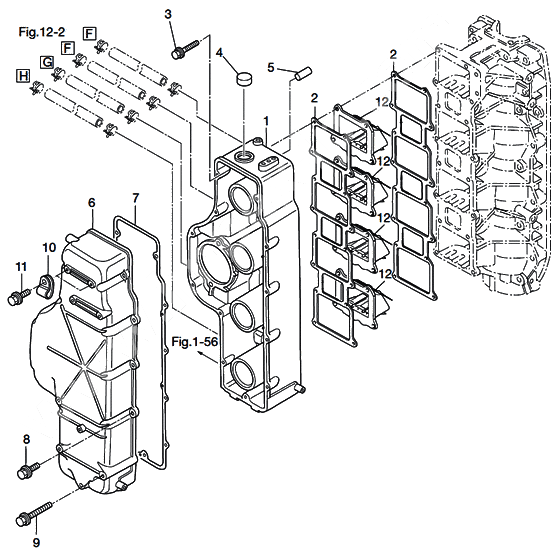

Air chamber для Tohatsu MD115A2 - 2012 года выпуска
-
№АртикулНазвание
-
13T1B02240-0 Air chamberAir chamber
-
23C7-02104-1 Gasket inlet manifoldGasket inlet manifold
-
33V1-60001-1 Bolt 6-35 precoatedBolt 6-35 precoated
-
3V2-60001-0 Bolt 6-35 precoatedBolt 6-35 precoated
-
4345-76092-0 GrommetGrommet
-
53GF-01139-0 GrommetGrommet
-
63T1B02244-0 Cover air chamberCover air chamber
-
73T1-02245-0 Gasket air chamber coverGasket air chamber cover
-
8910103-5625 BoltBolt
-
9910103-5665 BoltBolt
-
103P0-06915-0 ClampClamp
-
119101E3-5612 Bolt & washerBolt & washer
-
123A3-02100-0 Reed Valve Ass'yReed Valve Ass'y
