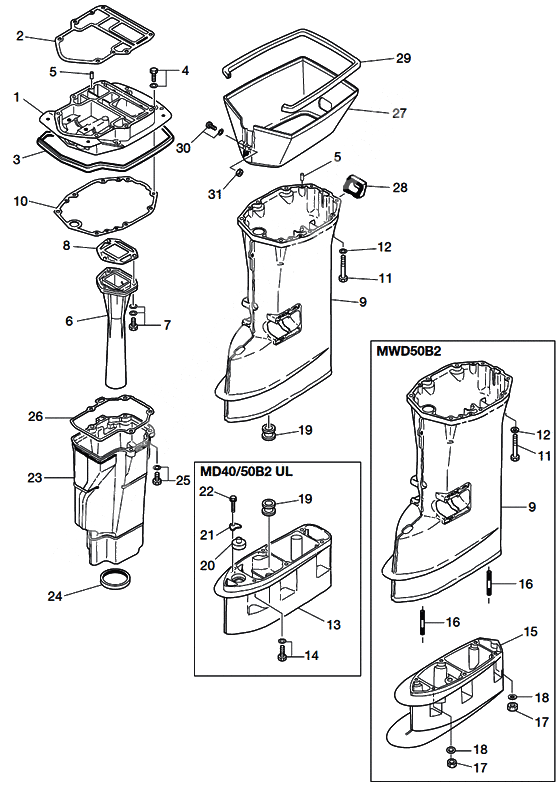

Drive shaft housing для Tohatsu MD40B2 - 2012 года выпуска
-
№АртикулНазвание
-
13C8Q01301-0 Engine baseEngine base
-
23C8-01303-4 Gasket engine baseGasket engine base
-
33C8-67116-0 Seal Rubber Engine BaseSeal Rubber Engine Base
-
4910103-5625 BoltBolt
-
5345-01111-0 Dowel Pin 6-12Dowel Pin 6-12
-
63E3-02311-0 Exhaust PipeExhaust Pipe
-
73C8-02319-0 BoltBolt
-
83C8-02312-2 Exhaust Pipe GasketExhaust Pipe Gasket
-
93C8Q61192-3 Drive shaft housing l (amb)
MD FOR TRANSOM L & UL / MWD FOR TRANSOM ULDrive shaft housing l (amb)
MD FOR TRANSOM L & UL / MWD FOR TRANSOM UL -
3C8Q61192-2 Drive shaft housing l (amb)Drive shaft housing l (amb)
-
103C8-61012-2 Gasket drive shaft housingGasket drive shaft housing
-
119161F4-0880 BoltBolt
-
129401E3-0800 WasherWasher
-
940103-0800 WasherWasher
-
133C8Q61110-0 Extension housing xl (amb)
MD40/50B2 FOR TRANSOM ULExtension housing xl (amb)
MD40/50B2 FOR TRANSOM UL -
149101E3-5835 Bolt & washer
MD40/50B2 FOR TRANSOM ULBolt & washer
MD40/50B2 FOR TRANSOM UL -
169153E3-0825 Stud Bolt
MWD50B2Stud Bolt
MWD50B2 -
17930103-0800 Nut
MWD50B2Nut
MWD50B2 -
189402E3-0800 Washer
MWD50B2Washer
MWD50B2 -
940203-0800 WasherWasher
-
19346-65204-0 Lock Rubber Water Pipe
MD40/50B2 FOR TRANSOM S & LLock Rubber Water Pipe
MD40/50B2 FOR TRANSOM S & L -
20346-66037-0 Holder Cam Rod
MD40/50B2 FOR TRANSOM ULHolder Cam Rod
MD40/50B2 FOR TRANSOM UL -
21353-66024-0 Stopper
MD40/50B2 FOR TRANSOM ULStopper
MD40/50B2 FOR TRANSOM UL -
22910103-6612 Bolt
MD40/50B2 FOR TRANSOM ULBolt
MD40/50B2 FOR TRANSOM UL -
233C8-61180-0 Exhaust HousingExhaust Housing
-
243C8-61182-0 Grommet exhaust housingGrommet exhaust housing
-
253C8-61184-0 BoltBolt
-
263C8-61181-2 Exhaust Housing GasketExhaust Housing Gasket
-
273C8Q61210-0 Splash pan (amb)Splash pan (amb)
-
3C8Q61210-1 Splash pan (amb)Splash pan (amb)
-
283C8-61212-0 Grommet Splash PanGrommet Splash Pan
-
293C8-61213-0 Seal Rubber Splash PanSeal Rubber Splash Pan
-
309215E3-5540 ScrewScrew
-
31930403-0500 Nylon NutNylon Nut
