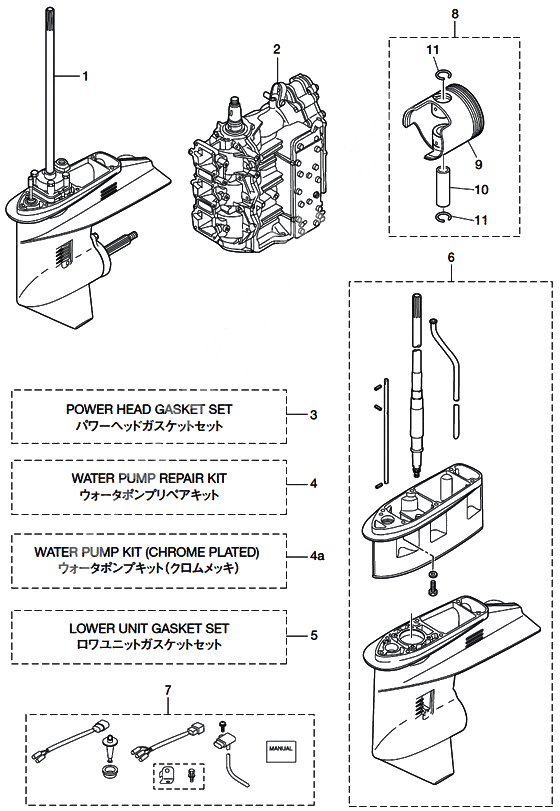

Assembly & kit parts для Tohatsu MD50B2 - 2012 года выпуска
-
№АртикулНазвание
-
13T5Q87301-3 Lower unit assy s (amb)
MD40/50B2 FOR TRANSOM SLower unit assy s (amb)
MD40/50B2 FOR TRANSOM S -
3T5Q87301-1 Lower unit assy s (amb)Lower unit assy s (amb)
-
13T5Q87302-3 Lower unit assy l (amb)
MD40/50B2 FOR TRANSOM LLower unit assy l (amb)
MD40/50B2 FOR TRANSOM L -
3T5Q87302-4 Lower unit assy l (amb)Lower unit assy l (amb)
-
13T5Q87304-3 Lower unit assy ul (amb)
MD40/50B2 FOR TRANSOM ULLower unit assy ul (amb)
MD40/50B2 FOR TRANSOM UL -
23GFB87090-3 Engine short block kitEngine short block kit
-
33T5-87121-6 Power Head Gasket SetPower Head Gasket Set
-
3346-01216-0 O-RingO-Ring
-
33B7-02235-0 O-Ring AO-Ring A
-
33B7-02236-0 O???? bO???? b
-
3353-00108-0 O-RingO-Ring
-
33C8-01215-0 Oil Seal 16-28-7Oil Seal 16-28-7
-
33C8-01303-4 Gasket engine baseGasket engine base
-
33C8-02305-2 New partNew part
-
33T5-00122-0 Oil Seal, 25-40-8Oil Seal, 25-40-8
-
33T5-01005-0 Gasket,Cylinder HeadGasket,Cylinder Head
-
33T5-01024-0 Gasket,head CoverGasket,head Cover
-
33T5-01032-0 Gasket, Thermostat CapGasket, Thermostat Cap
-
33T5-02104-1 Gasket inlet manifoldGasket inlet manifold
-
3T5-02104-2 Gasket inlet manifoldGasket inlet manifold
-
33T5-02245-0 Gasket, Air Box CoverGasket, Air Box Cover
-
43T5-87322-3 Water pump repair kitWater pump repair kit
-
4332-65022-0 Key, pump impellerKey, pump impeller
-
43C8-65021-2 Impeller water pumpImpeller water pump
-
43C8-65025-0 GUIDE PLATE,PUMPGUIDE PLATE,PUMP
-
43C8-65029-2 Gasket Pump Guide PlateGasket Pump Guide Plate
-
43T5-65011-0 Liner, Water Pump CaseLiner, Water Pump Case
-
43T5-65018-2 Gasket, Water Pump CaseGasket, Water Pump Case
-
49101E3-5855 BoltBolt
-
910103-5855 BoltBolt
-
4A3Z5-65231-0 Water pump kit (chrome)Water pump kit (chrome)
-
3Z5-65231-1 Water pump kit (chrome)Water pump kit (chrome)
-
4A3C8-65021-2 Impeller water pumpImpeller water pump
-
4A3Z5-65238-0 Pump case liner (chrome)
CHROME PLATEDPump case liner (chrome)
CHROME PLATED -
4A3T5-65018-2 Gasket, Water Pump CaseGasket, Water Pump Case
-
4A3C8-65239-0 Guide plate,chrome plated
CHROME PLATEDGuide plate,chrome plated
CHROME PLATED -
4A3C8-65029-2 Gasket Pump Guide PlateGasket Pump Guide Plate
-
53T5-87321-2 Lower Unit Gasket SetLower Unit Gasket Set
-
5332-60006-0 Gasket (8.1x15.1)Gasket (8.1x15.1)
-
5332-66021-0 O-RingO-Ring
-
5334-60223-0 Oil seal, 22-36-10Oil seal, 22-36-10
-
5345-60103-0 O-RingO-Ring
-
5345-65015-0 O-RingO-Ring
-
53B7-60016-1 Gasket, 10.1-15-1Gasket, 10.1-15-1
-
53C8-02312-2 Exhaust Pipe GasketExhaust Pipe Gasket
-
53C8-60223-0 Packing 17-33-6Packing 17-33-6
-
53C8-61012-2 Gasket drive shaft housingGasket drive shaft housing
-
53C8-61181-2 Exhaust Housing GasketExhaust Housing Gasket
-
53C8-65029-2 Gasket Pump Guide PlateGasket Pump Guide Plate
-
53C8-66032-0 O-RingO-Ring
-
53T5-65018-2 Gasket, Water Pump CaseGasket, Water Pump Case
-
63C8Q87314-1 Extension housing kit (amb)
MD40/50B2 FOR TRANSOM L->ULExtension housing kit (amb)
MD40/50B2 FOR TRANSOM L->UL -
63C8Q61110-0 Extension housing xl (amb)Extension housing xl (amb)
-
69101E3-5835 Bolt & washerBolt & washer
-
63C8Q60090-0 Gear case ul (amb)
SUB WATER PIPEGear case ul (amb)
SUB WATER PIPE -
6346-65204-0 Lock Rubber Water PipeLock Rubber Water Pipe
-
63C8-64303-0 Drive Shaft ULDrive Shaft UL
-
63C8-66014-0 Cam Rod ULCam Rod UL
-
6951407-0312 Spring WasherSpring Washer
-
6346-66037-0 Holder Cam RodHolder Cam Rod
-
6353-66024-0 StopperStopper
-
6910103-6612 BoltBolt
-
6951403-0312 Spring WasherSpring Washer
-
63C8-65120-0 Water Pipe ULWater Pipe UL
-
73GF-10230-0 Altitude adjustment kit
HIGH ALTITUDEAltitude adjustment kit
HIGH ALTITUDE -
83GF-87130-0 Piston repair kit (std)
STDPiston repair kit (std)
STD -
83GF-87131-0 Piston repair kit (0.5 o/s)
OPTPiston repair kit (0.5 o/s)
OPT -
93GF-00001-1 PISTON, STANDARD
STDPISTON, STANDARD
STD -
93GF-00004-1 Piston (0.5mm o/z)
OPTPiston (0.5mm o/z)
OPT -
103C8-00021-1 Piston PinPiston Pin
-
11334-00024-1 Clip, Piston PinClip, Piston Pin
