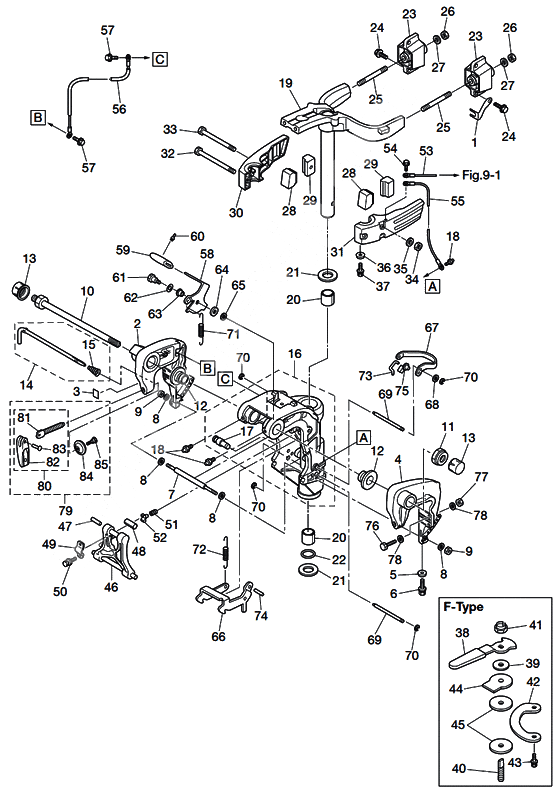

Bracket (manual) для Tohatsu MFS15C - 2012 года выпуска
-
№АртикулНазвание
-
13R3-65205-0 Rook Plate, Water PipeRook Plate, Water Pipe
-
23BJQ62112-0 Clamp bracket right (starboard)
STARBOARD SIDEClamp bracket right (starboard)
STARBOARD SIDE -
33H8-72049-0 Labe
FOR MF & EF/EFTLabe
FOR MF & EF/EFT -
43BJQ62113-0 Clamp bracket left (port)
PORT SIDEClamp bracket left (port)
PORT SIDE -
5338-60218-2 New partNew part
-
6910103-5620 BoltBolt
-
73V6-62117-0 Distance PieceDistance Piece
-
89401E3-0600 Washer
DISTANCE PIECEWasher
DISTANCE PIECE -
940113-0600 WasherWasher
-
99301E3-0600 NutNut
-
930103-0600 NutNut
-
103AC-62191-0 Swivel bracket bolt
BRACKET BOLTSwivel bracket bolt
BRACKET BOLT -
11346-62124-1 Bracket nutBracket nut
-
12349-62126-0 Bushing, Bracket BoltBushing, Bracket Bolt
-
13346-62127-0 Cap,Bracket Bolt
FOR MF/EFCap,Bracket Bolt
FOR MF/EF -
143BJ-62123-0 Thrust rod assy (w-spring)Thrust rod assy (w-spring)
-
15369-62122-2 Spring Thrust RodSpring Thrust Rod
-
163BJQ62309-0 Swivel bracket assySwivel bracket assy
-
173BA-66314-0 PinPin
-
18344-67177-1 Grease NippleGrease Nipple
-
193BKQ62010-0 Steering shaft assySteering shaft assy
-
203R3-62417-0 BushingBushing
-
213H8-62423-1 Surust PlateSurust Plate
-
223H8-62415-0 O-RingO-Ring
-
233BJ-61301-0 Rubber mount (upper)
FOR TRANSOM S & LRubber mount (upper)
FOR TRANSOM S & L -
233BA-61301-0 Rubber mount (upper)
FOR TRANSOM ULRubber mount (upper)
FOR TRANSOM UL -
249101E3-5830 BoltBolt
-
910103-5830 BoltBolt
-
253R3-61313-1 Stud BoltStud Bolt
-
26930403-1000 Nylon NutNylon Nut
-
279401E3-1000 WasherWasher
-
283BJ-61336-0 Damper (lower)Damper (lower)
-
293BJ-61302-0 Rubber mount (lower)Rubber mount (lower)
-
303BJQ61401-0 Mount bracket right (starboard)
STARBOARD SIDEMount bracket right (starboard)
STARBOARD SIDE -
313BJQ61402-0 Mount bracket left (port)
PORT SIDEMount bracket left (port)
PORT SIDE -
329101E3-0855 BoltBolt
-
910103-0855 BoltBolt
-
339101E3-0885 BoltBolt
-
9161E3-0885 BoltBolt
-
349301E3-0800 NutNut
-
930103-0800 NutNut
-
353P0-66233-0 New partNew part
-
36338-60218-2 New partNew part
-
37910103-5620 BoltBolt
-
383AA-62441-0 Handle,Co-Pilot
FOR F-TYPEHandle,Co-Pilot
FOR F-TYPE -
393R3-62443-0 Washer
FOR F-TYPEWasher
FOR F-TYPE -
403R3-62445-0 Bolt
FOR F-TYPEBolt
FOR F-TYPE -
413V5-62442-0 Nylon Nut(2T)M8 P1.25
FOR F-TYPENylon Nut(2T)M8 P1.25
FOR F-TYPE -
423R3-62447-0 Plate, Co Pilot
FOR F-TYPEPlate, Co Pilot
FOR F-TYPE -
439101E3-5616 Bolt & washer
FOR F-TYPEBolt & washer
FOR F-TYPE -
443R3-62448-1 Washer, Co Pilot
FOR F-TYPEWasher, Co Pilot
FOR F-TYPE -
453R3-62449-0 Disk, Co Pilot
FOR F-TYPEDisk, Co Pilot
FOR F-TYPE -
463G2Q62993-1 Tilt stopper (amb)Tilt stopper (amb)
-
47951403-0540 Spring PinSpring Pin
-
951403-0535 Spring PinSpring Pin
-
48350-62437-0 Bushing Tilt StopperBushing Tilt Stopper
-
49350-62439-1 Set Plate Tilt StopperSet Plate Tilt Stopper
-
509101E3-5818 BoltBolt
-
910103-5818 BoltBolt
-
513C8-62421-1 Spring Friction PlateSpring Friction Plate
-
52346-62438-0 Set PieceSet Piece
-
53398-62396-1 Ground Wire
MOUNT BRACKET-DRIVE SHAFT HOUSINGGround Wire
MOUNT BRACKET-DRIVE SHAFT HOUSING -
54910103-5610 BoltBolt
-
55398-62396-1 Ground Wire
MOUNT BRACKET-SWIVEL BRACKETGround Wire
MOUNT BRACKET-SWIVEL BRACKET -
56398-62396-1 Ground Wire
CLAMP BRACKET-SWIVEL BRACKETGround Wire
CLAMP BRACKET-SWIVEL BRACKET -
57910103-5612 BoltBolt
-
583BA-66311-0 Lever reverse lockLever reverse lock
-
593AL-66333-0 Lock lever gripLock lever grip
-
60346-66334-0 StopperStopper
-
613AL-05254-0 Shoulder boltShoulder bolt
-
629401E3-0800 WasherWasher
-
940103-0800 WasherWasher
-
633AL-05212-0 BushingBushing
-
643AA-83719-0 WasherWasher
-
653R0-66308-0 WasherWasher
-
663BA-66322-0 Reverse LockReverse Lock
-
673BA-66313-0 Arm reverse lockArm reverse lock
-
683BA-63207-0 CollarCollar
-
693G2-66324-0 Shaft Reverse Lock BShaft Reverse Lock B
-
70945303-0500 E-RingE-Ring
-
713BA-66323-0 Spring reverse lock leverSpring reverse lock lever
-
723BA-66315-0 Spring reverse lockSpring reverse lock
-
733BA-66305-0 Link reverse lockLink reverse lock
-
74951403-0535 Spring WasherSpring Washer
-
75345-05223-1 Rod Snap,3.5-2Rod Snap,3.5-2
-
769101E3-0885 Bolt
OPTBolt
OPT -
9161E3-0885 BoltBolt
-
779301E3-0800 Nut
OPTNut
OPT -
930103-0800 NutNut
-
789401E3-0800 Washer
OPTWasher
OPT -
940103-0800 WasherWasher
-
793AAQ62105-0 Clamp screw kit (w/pad & bolt)Clamp screw kit (w/pad & bolt)
-
803AAQ62108-0 Clamp screw assy (no pad)Clamp screw assy (no pad)
-
813AA-62106-0 Clamp screwClamp screw
-
82332Q62102-1 Handle clamp screwHandle clamp screw
-
833C8-62104-2 RivetRivet
-
3C8-62104-1 RivetRivet
-
84332-62101-1 Pad clamp screw (threaded style)Pad clamp screw (threaded style)
-
853C8-62107-0 Shoulder boltShoulder bolt
