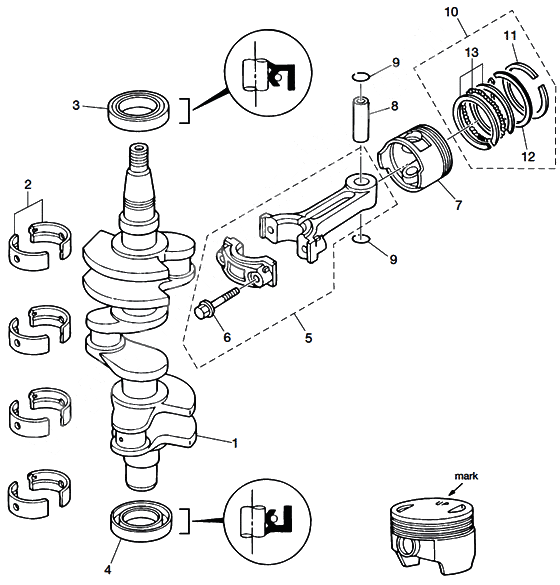

Piston & crank shaft для Tohatsu MFS30B - 2012 года выпуска
-
№АртикулНазвание
-
13AC-00030-1 Crankshaft assyCrankshaft assy
-
23AE-07407-0 Bearing (red)
RED / SEE SERVICE MANUALBearing (red)
RED / SEE SERVICE MANUAL -
23AE-07408-0 Bearing (blue)
BLUE / SEE SERVICE MANUALBearing (blue)
BLUE / SEE SERVICE MANUAL -
33R0-00122-0 Oil Seal,38-50-8
UPPEROil Seal,38-50-8
UPPER -
43R0-00121-0 Oil Seal.30-50-8
LOWEROil Seal.30-50-8
LOWER -
53R0-00040-0 Conncting Rod Ass'yConncting Rod Ass'y
-
63H6-00059-0 Bolt, Connecting RodBolt, Connecting Rod
-
73AE-00001-1 Piston std f9.9c/15c/20cPiston std f9.9c/15c/20c
-
83AE-00021-0 Piston PinPiston Pin
-
93H6-00024-0 Clip, Piston PinClip, Piston Pin
-
103FS-87123-0 Ring set, pistonRing set, piston
-
113AC-00011-0 Top ring
1STTop ring
1ST -
123AC-00012-0 2-nd ring
2ND2-nd ring
2ND -
133AC-00013-0 3-d ring
OIL3-d ring
OIL
