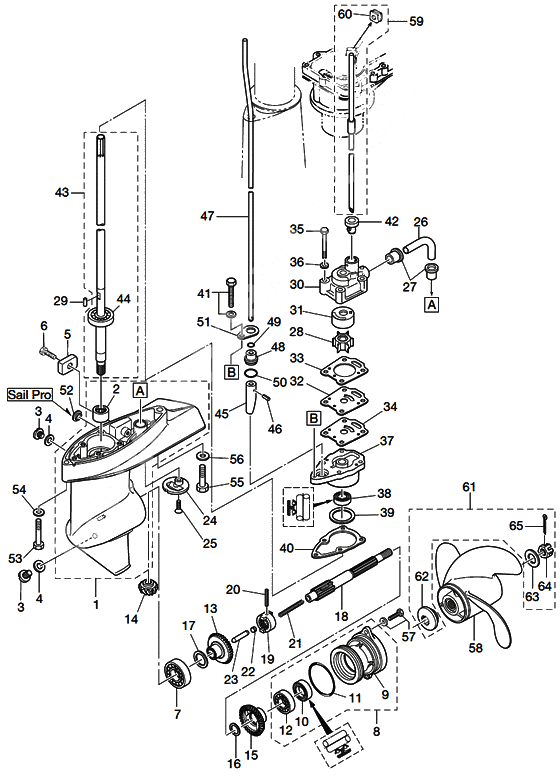

Gear case для Tohatsu MFS6C - 2012 года выпуска

№

Артикул

Название
1

369Q60000-3 Gear case (amb)
STD

Gear case (amb)
STD

14 990 ₽
1

399Q60000-3 Gear case assy 6b sail pro ul (amb)
FOR 6PS / SAIL PRO

Gear case assy 6b sail pro ul (amb)
FOR 6PS / SAIL PRO

14 990 ₽
2

369-60211-0 Needle Bearing

Needle Bearing

2 830 ₽
3

332-60005-2 Oil Plug Water Plug

Oil Plug Water Plug

1 050 ₽
4

332-60006-0 Gasket (8.1x15.1)

Gasket (8.1x15.1)

200 ₽
5

3H6-60218-0 Anode

Anode

980 ₽
6

910103-0616 Bolt

Bolt

140 ₽
7

9601-0-6004 Ball Bearing

Ball Bearing

2 440 ₽
8

369Q87323-1 Propeller shaft housing assy (amb)

Propeller shaft housing assy (amb)

9 170 ₽
9

369Q60101-1 Propeller shaft housing (amb)

Propeller shaft housing (amb)

7 050 ₽
10

369-60111-0 Oil Seal

Oil Seal

1 230 ₽
11

345-65015-0 O-Ring

O-Ring

360 ₽
12

9601-0-6002 Ball Bearing

Ball Bearing

2 440 ₽
13

369-64010-2 Bevel Gear A Ass'y (with Bushing)

Bevel Gear A Ass'y (with Bushing)

7 890 ₽
14

369-64020-2 Bevel Gear B

Bevel Gear B

0 ₽
15

369-64030-2 Bevel Gear C

Bevel Gear C

0 ₽
16

369-64032-0 Washer

Washer

630 ₽
17

369-64014-0 Shim 21-28-0.1

Shim 21-28-0.1

660 ₽
17

369-64015-0 Shim 21-28-0.15

Shim 21-28-0.15

660 ₽
18

369-64211-1 Propeller Shaft

Propeller Shaft

13 170 ₽
19

301-64215-1 Clutch

Clutch

5 370 ₽
20

301-64217-0 Pin Clutch

Pin Clutch

260 ₽
21

393-64221-0 Spring Clutch

Spring Clutch

410 ₽
22

369-64222-0 Spring holder clutch

Spring holder clutch

470 ₽
23

369-64223-0 Push Rod Clutch

Push Rod Clutch

1 220 ₽
24

369-60206-0 Water Strainer

Water Strainer

740 ₽
25

921803-0620 Stud Bolt

Stud Bolt

150 ₽
26

369-65035-0 Water Pipe Lower

Water Pipe Lower

440 ₽
27

369-65036-0 Seal Rubber Water Pipe Lower

Seal Rubber Water Pipe Lower

510 ₽
28

369-65021-1 Крыльчатка водной помпы

Крыльчатка водной помпы

2 660 ₽
29

369-65022-0 Key water pump impeller

Key water pump impeller

270 ₽
30

369-65016-0 Water Pump Case

Water Pump Case

3 800 ₽
31

369-65011-0 Liner Water Pump Case

Liner Water Pump Case

1 080 ₽
32

369-65025-0 Guide Plate Water Pump

Guide Plate Water Pump

650 ₽
33

369-65018-0 Gasket water pump case

Gasket water pump case

250 ₽
34

369-65029-0 Gasket Pump Guide Plate

Gasket Pump Guide Plate

540 ₽
35

9161E3-0645 Bolt

Bolt

170 ₽
36

940103-0600 Washer

Washer

110 ₽
37

369-65017-1 Pump Case Lower

Pump Case Lower

3 810 ₽
38

369-60223-0 Oil Seal

Oil Seal

890 ₽
39

369-64081-1 Shim, 26. 5-34. 8-0.1

Shim, 26. 5-34. 8-0.1

710 ₽
39

369-64082-1 Shim, 26. 5-34. 8-0.15

Shim, 26. 5-34. 8-0.15

920 ₽
40

369-65020-0 Gasket Water Pump Case Lower

Gasket Water Pump Case Lower

680 ₽
41

910103-5625 Bolt

Bolt

170 ₽
42

369-65014-0 Seal rubber lower water pipe

Seal rubber lower water pipe

570 ₽
43

369-64301-0 Drive Shaft S
FOR TRANSOM S

Drive Shaft S
FOR TRANSOM S

17 590 ₽
43

369-64302-0 Drive shaft l
FOR TRANSOM L

Drive shaft l
FOR TRANSOM L

17 020 ₽
43

369-64303-0 Drive Shaft UL
FOR TRANSOM UL

Drive Shaft UL
FOR TRANSOM UL

10 980 ₽
44

9601-0-6300 Ball Bearing

Ball Bearing

2 750 ₽
45

369-66011-0 Clutch Cam

Clutch Cam

2 380 ₽
46

951407-0310 Spring Washer

Spring Washer

210 ₽
47

369-66012-1 Cam rod s
FOR TRANSOM S

Cam rod s
FOR TRANSOM S

1 810 ₽
47

369-66013-1 Cam Rod L
FOR TRANSOM L

Cam Rod L
FOR TRANSOM L

1 900 ₽
47

369-66014-2 Cam Rod UL
FOR TRANSOM UL

Cam Rod UL
FOR TRANSOM UL

2 050 ₽
48

369-66031-0 Bushing Cam Rod

Bushing Cam Rod

1 220 ₽
49

369-66021-1 O?????2.5-4.9

O?????2.5-4.9

320 ₽
50

332-66032-0 O?????2.4-15.4

O?????2.4-15.4

320 ₽
51

369-66033-0 Stopper Cam Rod Bushing

Stopper Cam Rod Bushing

360 ₽
52

3DK-61016-0 Grommet
FOR 6PS / SAIL PRO

Grommet
FOR 6PS / SAIL PRO

270 ₽
53

9161E3-0645 Bolt

Bolt

170 ₽
54

9401E3-0600 Washer

Washer

120 ₽
940113-0600 Washer

Washer

140 ₽
55

9161E3-0835 Bolt

Bolt

290 ₽
56

9401E3-0800 Washer

Washer

120 ₽
940103-0800 Washer

Washer

120 ₽
57

9101E3-5616 Bolt & washer

Bolt & washer

320 ₽
58

399B64512-1 Prop 4/5/6hp 8.375in dia x 6in pitch (elephant ear)
FOR SAIL PRO L & UL / STD 3X200X152

Prop 4/5/6hp 8.375in dia x 6in pitch (elephant ear)
FOR SAIL PRO L & UL / STD 3X200X152

12 250 ₽
58

3R1B64514-1 Prop 4/5/6hp (7.7 dia. x 7 pitch)
4PS S & L / STD 3X198X178

Prop 4/5/6hp (7.7 dia. x 7 pitch)
4PS S & L / STD 3X198X178

16 840 ₽
58

3R1B64516-1 Prop 4/5/6hp (7.7 dia. x 8 pitch)
5/6PS S/L / STD 3×198×203

Prop 4/5/6hp (7.7 dia. x 8 pitch)
5/6PS S/L / STD 3×198×203

0 ₽
58

369B64518-1 Prop 4/5/6hp (7.9 dia. x 9 pitch)
OPT 3X200X229

Prop 4/5/6hp (7.9 dia. x 9 pitch)
OPT 3X200X229

22 030 ₽
59

369-65100-0 Water pipe s
FOR TRANSOM S

Water pipe s
FOR TRANSOM S

3 850 ₽
59

369-65110-0 Water Pipe L
FOR TRANSOM L

Water Pipe L
FOR TRANSOM L

2 180 ₽
59

369-65120-0 Water Pipe UL
FOR TRANSOM UL

Water Pipe UL
FOR TRANSOM UL

1 520 ₽
60

369-65195-0 Grommet, Water Pipe Upper

Grommet, Water Pipe Upper

180 ₽
61

3H6-87326-0 Propeller Hardwear Kit

Propeller Hardwear Kit

1 800 ₽
62

3AS-64230-0 Thrust holder propeller

Thrust holder propeller

1 660 ₽
63

369-64124-0 Washer

Washer

840 ₽
64

369-64121-0 Nut Propeller

Nut Propeller

1 230 ₽
65

951503-0318 New part

New part

240 ₽
