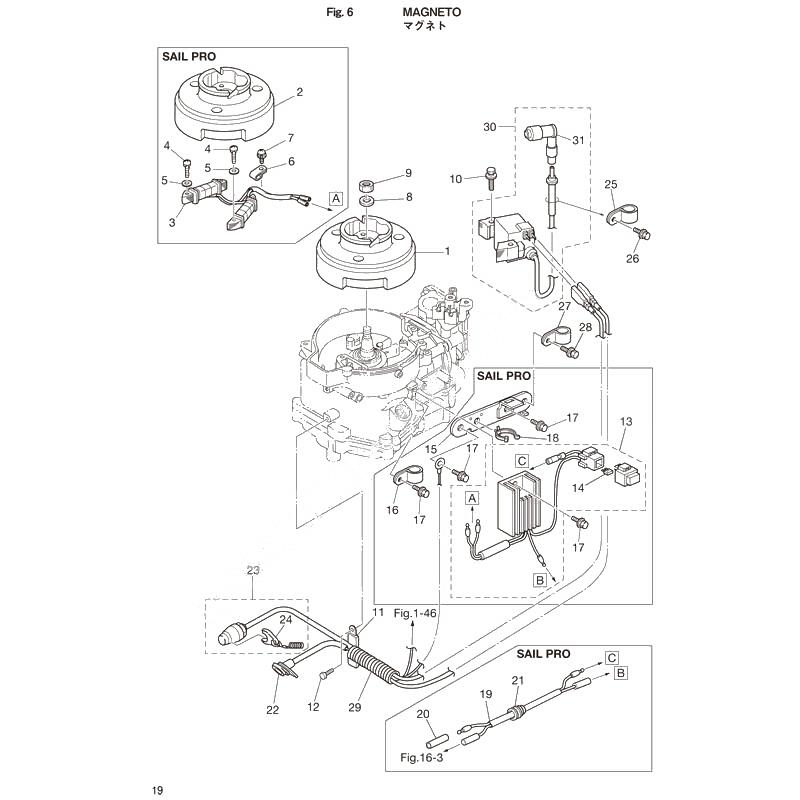

Magneto для Tohatsu MFS6CS - 2012 года выпуска
-
№АртикулНазвание
-
13AS-06009-0 フライホイルカップ MF54 (マーク48)
MF54 マーク 48 スタンダードフライホイルカップ MF54 (マーク48)
MF54 マーク 48 スタンダード -
8940121-1200 WasherWasher
-
9369-00132-0 Nut MagnetoNut Magneto
-
10910103-5630 BoltBolt
-
11309-06972-0 Clamp,6.5-47.5PClamp,6.5-47.5P
-
12910103-5612 BoltBolt
-
223GR-71040-0 Pilot lamp assyPilot lamp assy
-
233GR-06870-0 Stop switch assyStop switch assy
-
24353-06821-0 Lock, lanyard stop switchLock, lanyard stop switch
-
25345-06915-0 Clamp 6.5-14Clamp 6.5-14
-
26910103-5612 BoltBolt
-
27345-06915-0 Clamp 6.5-14Clamp 6.5-14
-
28910103-5612 BoltBolt
-
293H6-06133-0 Protector,wire HarnessProtector,wire Harness
-
303GR-06041-0 Igniter w/resistance cap c modelsIgniter w/resistance cap c models
-
313H6-06999-0 Plug Cap (Registance)Plug Cap (Registance)
