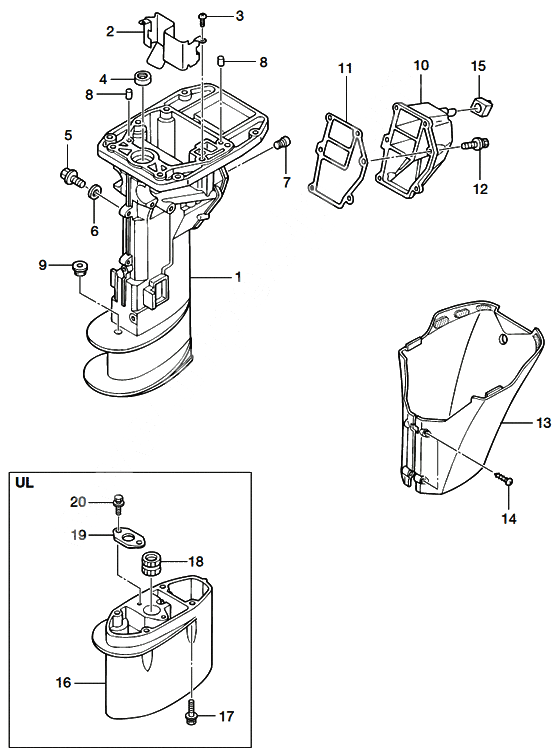

Drive shaft housing для Tohatsu MFS9.8A3 - 2012 года выпуска
-
№АртикулНазвание
-
13V1Q61020-1 Drive shaft housing s (amb)
FOR TRANSOM SDrive shaft housing s (amb)
FOR TRANSOM S -
13V1Q61030-0 Drive shaft housing l (amb)
FOR TRANSOM L & ULDrive shaft housing l (amb)
FOR TRANSOM L & UL -
3V1Q61030-1 Drive shaft housing l (amb)Drive shaft housing l (amb)
-
23V1-07440-1 Guide PlateGuide Plate
-
3921503-6510 Stud BoltStud Bolt
-
43B2-01215-0 Oil seal 12-28-5Oil seal 12-28-5
-
53R3-07405-1 Bolt, DrainBolt, Drain
-
63R3-07406-0 WasherWasher
-
73H6-07257-0 Exhaust PlugExhaust Plug
-
8345-01111-0 Dowel Pin 6-12Dowel Pin 6-12
-
9369-66043-1 Grommet Cam RodGrommet Cam Rod
-
103V1-61208-0 Cover,Idol PortCover,Idol Port
-
113V1-61220-0 Gasket,Idle PortGasket,Idle Port
-
129101E3-5620 Bolt & washerBolt & washer
-
133V1Q61225-0 Apron (amb)Apron (amb)
-
143F3-02423-0 Screw 5-30Screw 5-30
-
153V1-61212-0 Grommet,Idle PortGrommet,Idle Port
-
163B2Q61110-2 Extension housing ul (amb)
FOR TRANSOM ULExtension housing ul (amb)
FOR TRANSOM UL -
173V2-60001-0 Bolt 6-35 precoated
FOR TRANSOM ULBolt 6-35 precoated
FOR TRANSOM UL -
183B2-60003-1 Bushing Drive Shaft Housing
FOR TRANSOM ULBushing Drive Shaft Housing
FOR TRANSOM UL -
193V1-64332-0 Stopoer,Bushing
FOR TRANSOM ULStopoer,Bushing
FOR TRANSOM UL -
209101E3-5612 Bolt & washer
FOR TRANSOM ULBolt & washer
FOR TRANSOM UL
