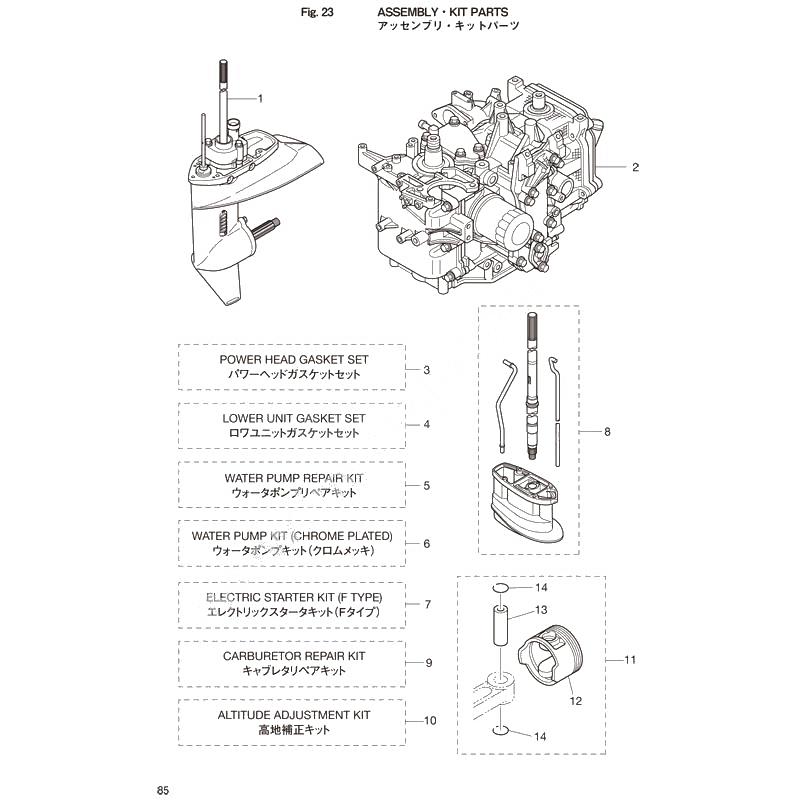

Assembly kit parts для Tohatsu MFS9.9C - 2012 года выпуска
-
№АртикулНазвание
-
13BHQ87304-0 ロワユニットアッシ (UL)
トランサムULモデルロワユニットアッシ (UL)
トランサムULモデル -
23BJB87090-3 Engine short block kitEngine short block kit
-
33H8-07025-0 Oil Seal,18-35-8Oil Seal,18-35-8
-
4362-02312-2 Gasket, Exhaust Pipe
4ストのエンジンには使用不可Gasket, Exhaust Pipe
4ストのエンジンには使用不可 -
59101E3-5652 New partNew part
-
6362-65239-0 Guide Plate Water Pump(chrome)
クロームプレートGuide Plate Water Pump(chrome)
クロームプレート -
73BH-06133-0 ProtectorProtector
-
8951407-2512 Spring WasherSpring Washer
-
9921503-0408 Screw
9.9psScrew
9.9ps -
113FS-87130-0 Piston repair kitPiston repair kit
-
123AE-00001-1 PistonPiston
-
133AE-00021-0 Piston PinPiston Pin
-
143H6-00024-0 Clip, Piston PinClip, Piston Pin
Все узлы модели:
- • Assembly kit parts
- Bottom cowl
- Bracket (manual)
- Carburetor
- Component parts of remote control
- Cylinder crank case
- Cylinder head oil pump
- Drive shaft housing
- Fuel tank
- Gear case
- Intake manifold fuel pump
- Magneto electric parts
- Optional parts accessories
- Piston crank shaft
- Pulley timing belt
- Recoil starter
- Remote control parts
- Shift
- Tiller handle
- Top cowl
