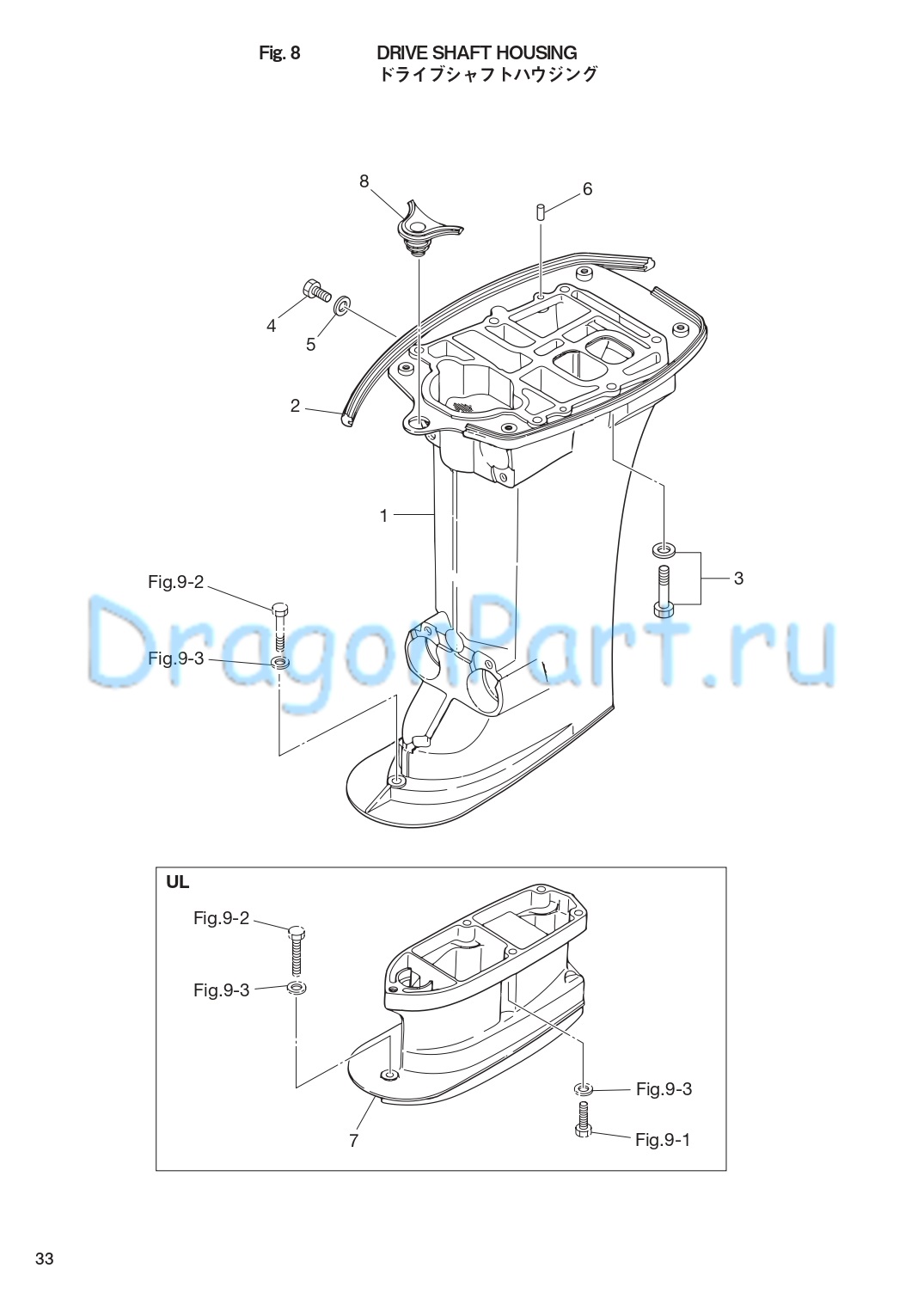

DRIVE SHAFT HOUSING для Tohatsu 25JET - 2013 года выпуска
-
№АртикулНазвание
-
1346Q61191-3 DRIVE SHAFT HOUSING (S)
for Transom “S” & 25JETDRIVE SHAFT HOUSING (S)
for Transom “S” & 25JET -
1346Q61192-3 DRIVE SHAFT HOUSING (L)
for Transom “L” & “UL”DRIVE SHAFT HOUSING (L)
for Transom “L” & “UL” -
2346-67116-0 ENGINE BASEMENT SEALENGINE BASEMENT SEAL
-
39101E3-5840 BOLTBOLT
-
49106E3-0808 BOLTBOLT
-
5332-60006-0 GASKET 8.1-15-1GASKET 8.1-15-1
-
6345-01111-0 DOWEL PIN 6-12DOWEL PIN 6-12
-
7346Q61110-5 EXTENSION HOUSING
for Transom “UL”EXTENSION HOUSING
for Transom “UL” -
8346-66226-0 GROMMETGROMMET
