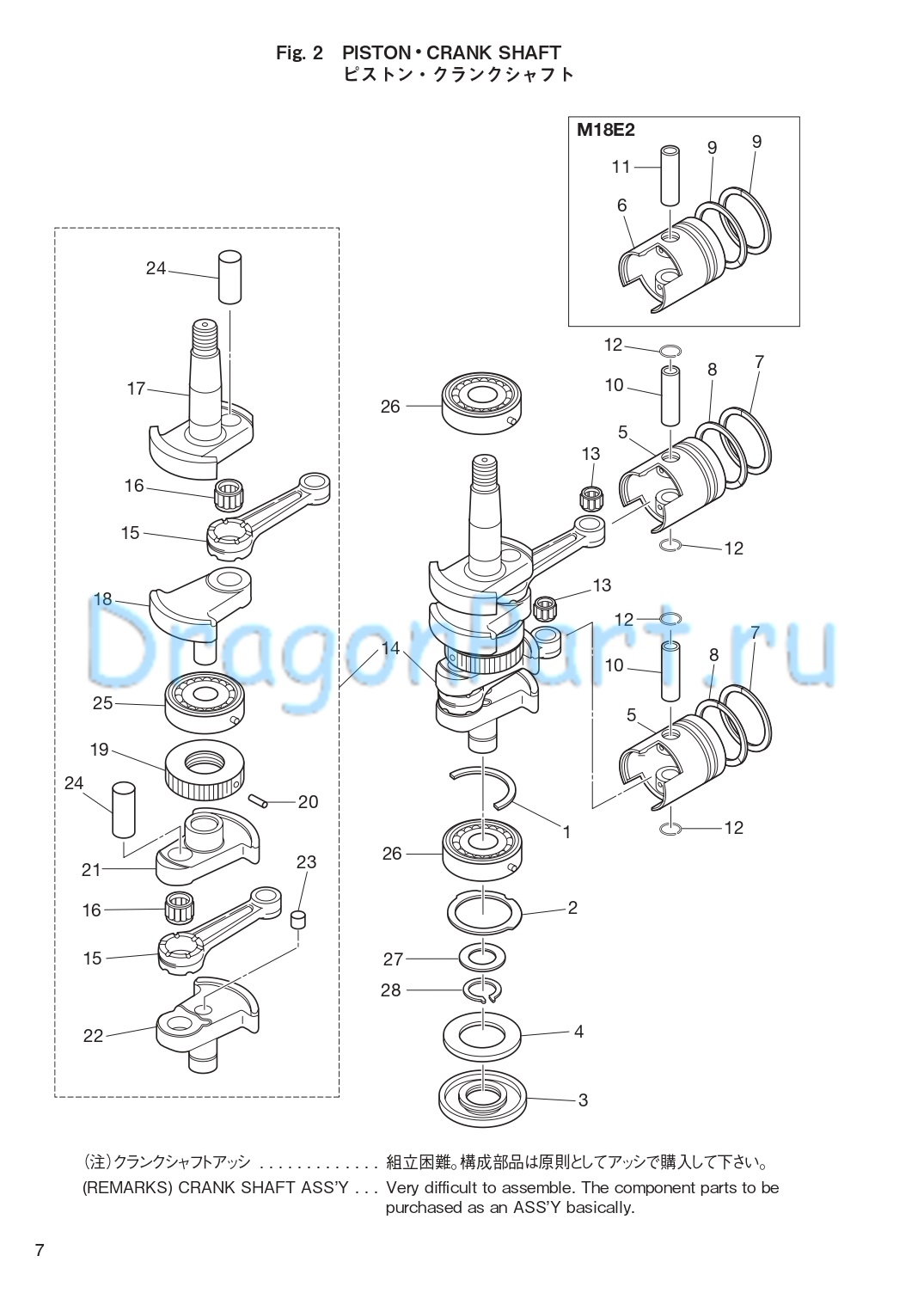

PISTON CRANK SHAFT для Tohatsu M15D2 - 2013 года выпуска
-
№АртикулНазвание
-
1350-00115-0 Thrust PlateThrust Plate
-
2350-00107-0 Thrust PlateThrust Plate
-
3350-01215-5 Oil Seal 25-62-9.5Oil Seal 25-62-9.5
-
4362-00128-0 Oil Sealing RingOil Sealing Ring
-
5351-00001-2 Piston
STD for M15D2, M9.9D2Piston
STD for M15D2, M9.9D2 -
5351-00004-2 Piston (0.5 O/S)
OPT for M15D2, M9.9D2Piston (0.5 O/S)
OPT for M15D2, M9.9D2 -
73G2-00011-0 Piston Ring
STD 1st for M15D2, M9.9D2Piston Ring
STD 1st for M15D2, M9.9D2 -
73G2-00014-0 Piston Ring (0.5 O/S)
OPT for M15D2, M9.9D2 1stPiston Ring (0.5 O/S)
OPT for M15D2, M9.9D2 1st -
8351-00011-0 Piston Ring
STD 2nd for M15D2, M9.9D2Piston Ring
STD 2nd for M15D2, M9.9D2 -
8351-00014-0 Piston Ring (0.5 O/S)
OPT for M15D2, M9.9D2 2ndPiston Ring (0.5 O/S)
OPT for M15D2, M9.9D2 2nd -
10332-00021-1 Piston Pin
for M15D2, M9.9D2Piston Pin
for M15D2, M9.9D2 -
12350-00024-1 Piston Pin ClipPiston Pin Clip
-
133M3-00042-0 Roller Bearing 14-18-20Roller Bearing 14-18-20
-
143M2-00069-1 Crankshaft Sub-Ass'yCrankshaft Sub-Ass'y
-
15350-00040-0 * Connecting Rod* Connecting Rod
-
163G4-00043-0 * Roller Bearing 20-26-16* Roller Bearing 20-26-16
-
173M2-00031-1 * Crankshaft A* Crankshaft A
-
18350-00032-1 * Crankshaft B* Crankshaft B
-
19350-00051-1 * Labyrinth Packing* Labyrinth Packing
-
20951407-0308 * Spring Pin 3-8* Spring Pin 3-8
-
21350-00033-1 * Crankshaft C* Crankshaft C
-
22350-00034-2 * Crankshaft D* Crankshaft D
-
23350-00062-0 * Sealing Plug* Sealing Plug
-
24350-00061-1 * Crank Pin* Crank Pin
-
259603-3-6305 * Ball Bearing 6305
Center* Ball Bearing 6305
Center -
269603-3-6305 Ball Bearing 6305
Upper, LowerBall Bearing 6305
Upper, Lower -
27346-00116-0 Spacer 25.2-34-1.6Spacer 25.2-34-1.6
-
28945102-2500 C-RingC-Ring
