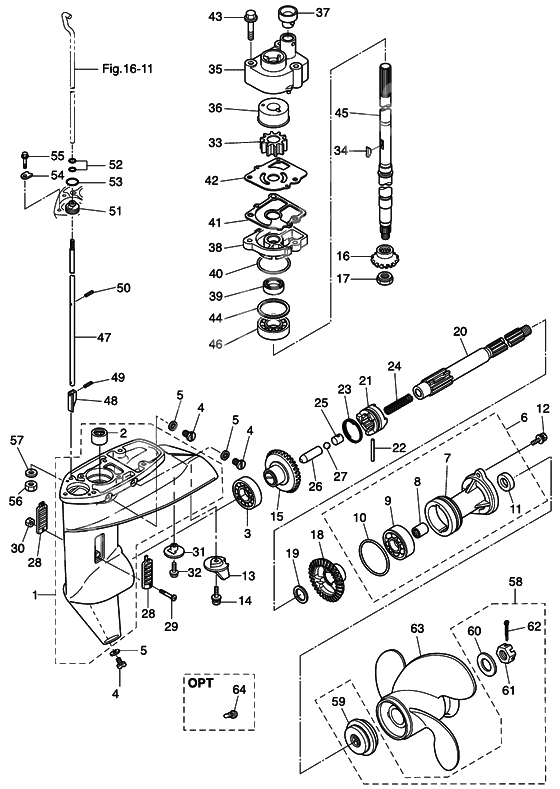

Gear case для Tohatsu MFS15C - 2013 года выпуска

№

Артикул

Название
1

3BJQ60000-1 Gear case

Gear case

39 660 ₽
2

3BJ-60211-0 Needle Bearing

Needle Bearing

7 510 ₽
3

3BJ-60215-0 Ball bearing 6205hs

Ball bearing 6205hs

3 830 ₽
4

332-60005-2 Oil Plug Water Plug

Oil Plug Water Plug

1 050 ₽
5

332-60006-0 Gasket (8.1x15.1)

Gasket (8.1x15.1)

200 ₽
6

3BJQ60100-1 Propeller shaft housing assy

Propeller shaft housing assy

14 190 ₽
7

3BKQ60101-1 Propeller shaft housing

Propeller shaft housing

6 340 ₽
3BKQ60101-0 Propeller shaft housing

Propeller shaft housing

6 000 ₽
8

362-60211-0 Needle Bearing

Needle Bearing

3 350 ₽
9

3BJ-60215-0 Ball bearing 6205hs

Ball bearing 6205hs

3 830 ₽
10

121-32071-0 O-Ring

O-Ring

420 ₽
11

346-65013-0 Oil' seal, 17-30-9

Oil' seal, 17-30-9

1 160 ₽
12

3BJ-60108-0 Pre-Coated Bolt

Pre-Coated Bolt

210 ₽
13

3V1-60217-0 Trim Tab

Trim Tab

1 450 ₽
14

910103-5620 Bolt

Bolt

170 ₽
15

3BJ-64010-0 Bevel Gear Ass'y (A)

Bevel Gear Ass'y (A)

22 080 ₽
16

3BJ-64020-0 Bevel Gear B

Bevel Gear B

12 140 ₽
17

346-64027-1 Nut, Bevel Gear B

Nut, Bevel Gear B

1 850 ₽
18

3BJ-64030-0 Bevel Gear C

Bevel Gear C

20 670 ₽
19

350-64032-0 Washer

Washer

960 ₽
20

362-64211-2 Propeller shaft 14 spline

Propeller shaft 14 spline

10 670 ₽
21

3BJ-64215-0 Clutch

Clutch

11 800 ₽
22

350-64218-0 Clutch Pin

Clutch Pin

540 ₽
23

350-64219-0 Snap Clutch

Snap Clutch

360 ₽
24

332-64221-0 New part

New part

630 ₽
25

350-64222-1 Spring holder clutch

Spring holder clutch

1 600 ₽
26

3BJ-64223-0 Clutch push rod

Clutch push rod

910 ₽
27

965002-0803 Steel ball, 3/8

Steel ball, 3/8

150 ₽
28

362-60206-1 Water Strainer

Water Strainer

340 ₽
29

921503-0430 Stud Bolt

Stud Bolt

120 ₽
30

930403-0400 Nylon Nut

Nylon Nut

210 ₽
31

369-60206-0 Water Strainer

Water Strainer

740 ₽
32

9218E3-0620 Screw

Screw

170 ₽
33

334-65021-0 Крыльчатка водной помпы

Крыльчатка водной помпы

3 600 ₽
34

350-65022-0 New part

New part

490 ₽
35

350-65016-1 New part

New part

3 450 ₽
36

350-65011-1 New part

New part

1 070 ₽
37

350-65014-0 New part

New part

630 ₽
38

3BJ-65017-0 Water pump case lower

Water pump case lower

2 520 ₽
39

332-60223-0 Oil Seal

Oil Seal

930 ₽
40

336-62415-0 O-Ring

O-Ring

410 ₽
41

3FS-65029-0 Gasket guide plate

Gasket guide plate

330 ₽
42

350-65025-0 New part

New part

620 ₽
43

9101E3-5652 Bolt & washer

Bolt & washer

600 ₽
44

346-64081-0 Shim, 35-41.9-0.1

Shim, 35-41.9-0.1

620 ₽
44

346-64082-0 Shim, 35-41.9-0.15

Shim, 35-41.9-0.15

950 ₽
44

346-64083-0 Shim, 35-41.9-0.3

Shim, 35-41.9-0.3

900 ₽
44

346-64084-0 Shim, 35-41.9-0.5

Shim, 35-41.9-0.5

950 ₽
45

3BK-64301-0 Drive Shaft (S)
FOR TRANSOM S

Drive Shaft (S)
FOR TRANSOM S

19 050 ₽
45

3BK-64302-0 Drive shaft l
FOR TRANSOM L

Drive shaft l
FOR TRANSOM L

19 090 ₽
45

3BK-64303-0 Drive Shaft UL
FOR TRANSOM UL

Drive Shaft UL
FOR TRANSOM UL

20 510 ₽
46

3BJ-60213-0 Ball Bearing 7302A

Ball Bearing 7302A

4 760 ₽
47

3BH-66012-0 Cam Rod (S)
FOR TRANSOM S

Cam Rod (S)
FOR TRANSOM S

2 130 ₽
47

3BH-66013-0 Cam rod (l)
FOR TRANSOM L

Cam rod (l)
FOR TRANSOM L

2 300 ₽
47

3BH-66014-0 Cam rod (ul)
FOR TRANSOM UL

Cam rod (ul)
FOR TRANSOM UL

2 650 ₽
48

3AC-66011-1 Clutch Cam

Clutch Cam

4 430 ₽
49

951407-0312 Spring Washer

Spring Washer

210 ₽
50

951407-2512 Spring Pin

Spring Pin

210 ₽
51

398-66031-0 Bushing Cam Rod

Bushing Cam Rod

2 440 ₽
52

332-66021-0 O-Ring

O-Ring

360 ₽
53

336-62415-0 O-Ring

O-Ring

410 ₽
54

332-66033-0 Retainer Cam Shift

Retainer Cam Shift

110 ₽
55

9101E3-5512 Bolt

Bolt

120 ₽
910103-5512 Bolt

Bolt

120 ₽
56

9301E3-0800 Nut

Nut

150 ₽
930103-0800 Nut

Nut

420 ₽
57

3P0-66233-0 New part

New part

190 ₽
58

3V9-87326-0 Propeller Hardwear Kit

Propeller Hardwear Kit

2 720 ₽
59

362-64231-0 Thrust Holder

Thrust Holder

3 220 ₽
60

346-64124-5 Washer

Washer

670 ₽
61

346-64121-5 ナット、プロペラ

ナット、プロペラ

1 470 ₽
62

951503-0322 Split pin, 3-22

Split pin, 3-22

270 ₽
63

362B64107-1 Prop 9.91518 20 hp (9.2 dia. x 6.9 pitch) black
OPT 3 X 234 X 155

Prop 9.91518 20 hp (9.2 dia. x 6.9 pitch) black
OPT 3 X 234 X 155

18 230 ₽
362B64105-0 Prop 9.91518 20 hp (9.2 dia. x 6.9 pitch) black

Prop 9.91518 20 hp (9.2 dia. x 6.9 pitch) black

56 680 ₽
63

362B64105-1 Prop 9.91518 20 hp (9.2 dia. x 6.9 pitch) black
OPT 3 X 234 X 174

Prop 9.91518 20 hp (9.2 dia. x 6.9 pitch) black
OPT 3 X 234 X 174

18 190 ₽
362B64105-0 Prop 9.91518 20 hp (9.2 dia. x 6.9 pitch) black

Prop 9.91518 20 hp (9.2 dia. x 6.9 pitch) black

56 680 ₽
63

3BAB64516-1 Propeller (8) 3 x 9.25 x 8 (f15c/20c)
9.9PS L&UL / STD 3 X 235 X 203

Propeller (8) 3 x 9.25 x 8 (f15c/20c)
9.9PS L&UL / STD 3 X 235 X 203

9 990 ₽
63

3BAB645181 Propeller 3 x 9.25 x 9
15/20PS L &UL 9.9PS S / STD 3 X 235 X 229

Propeller 3 x 9.25 x 9
15/20PS L &UL 9.9PS S / STD 3 X 235 X 229

0 ₽
63

3BAB64521-1 Винт гребной 3х9,25х10
15/20PS S / STD 3 X 235 X 254

Винт гребной 3х9,25х10
15/20PS S / STD 3 X 235 X 254

16 830 ₽
63

3BAB64524-1 Propeller (11.5) 3 x 9.25 x 11.5 (f15c/20c)
OPT 3 X 235 X 292

Propeller (11.5) 3 x 9.25 x 11.5 (f15c/20c)
OPT 3 X 235 X 292

9 270 ₽
63

3Z0B64514-3 Propeller (7) 4 blade x 10 x 7 (f15/20c)
OPT 4 X 254 X 178

Propeller (7) 4 blade x 10 x 7 (f15/20c)
OPT 4 X 254 X 178

18 030 ₽
64

346-60984-0 Plug Sub Water Pipe
OPT

Plug Sub Water Pipe
OPT

1 170 ₽
