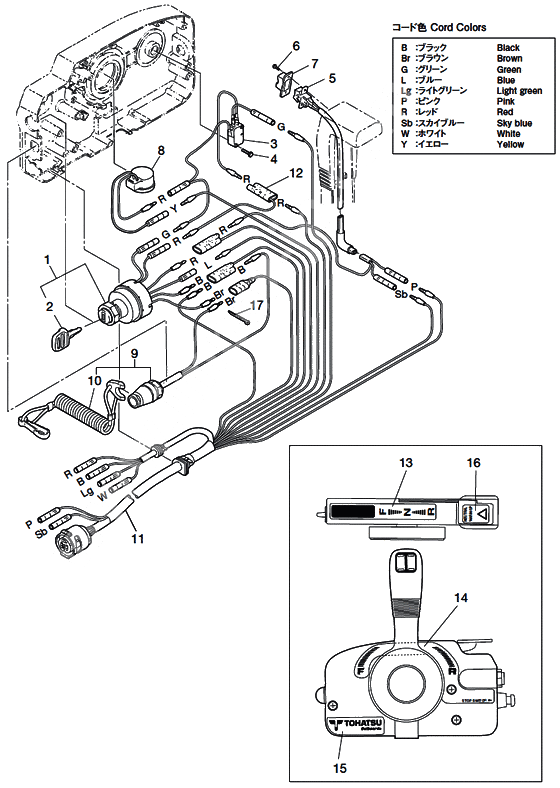

Component parts of remote control (electric parts) для Tohatsu MFS20C - 2013 года выпуска
-
№АртикулНазвание
-
1353-76020-3 Main Switch Ass'yMain Switch Ass'y
-
23F3-76217-0 Key, main switchKey, main switch
-
23F3-76218-0 Key, Main Switch (Earmark)Key, Main Switch (Earmark)
-
23F3-76219-0 Key, Main Switch (Earmark)Key, Main Switch (Earmark)
-
33A3-76086-1 Neutral Switch Remote ControlNeutral Switch Remote Control
-
4921503-0315 Stud BoltStud Bolt
-
53A3-72560-0 Switch Ass'y (p) P-T/T
RC5A / FOR EPTSwitch Ass'y (p) P-T/T
RC5A / FOR EPT -
6921503-0206 Stud Bolt
RC5A / FOR EPTStud Bolt
RC5A / FOR EPT -
73A3-72591-0 Switch Cover P-T/T
RC5A / FOR EPTSwitch Cover P-T/T
RC5A / FOR EPT -
83C8-76171-0 Over-heat BuzzerOver-heat Buzzer
-
93A3-06830-0 Emergency Stop Switch B Ass'yEmergency Stop Switch B Ass'y
-
10353-06821-0 Lock, lanyard stop switchLock, lanyard stop switch
-
113A3-76115-1 Cord assy b (20 ft.)Cord assy b (20 ft.)
-
12353-72546-0 Assist Cord(Red)Assist Cord(Red)
-
133N5-84336-0 Decal (shift position)Decal (shift position)
-
143N5-84465-0 Decal shift position sideDecal shift position side
-
153N5-84333-0 Decal (tohatsu)Decal (tohatsu)
-
163N5-84331-0 Decal (lever)Decal (lever)
-
173A3-84398-0 Band Lead WireBand Lead Wire
