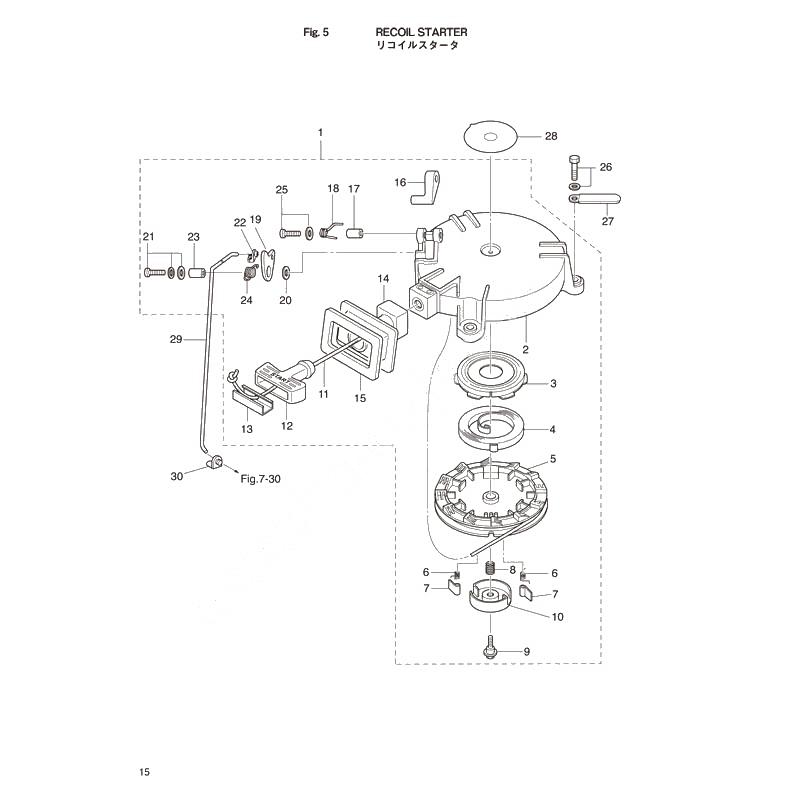

Recoil starter для Tohatsu MFS6CSP - 2013 года выпуска
-
№АртикулНазвание
-
13GR-05090-1 Recoil starter assy.Recoil starter assy.
-
3GR-05090-0 Recoil starter assy.Recoil starter assy.
-
23R1-05105-0 Starter CaseStarter Case
-
33R1-05125-0 Case, Stater SpringCase, Stater Spring
-
43R1-05004-0 Stater SpringStater Spring
-
53R1-05104-0 ReelReel
-
63R1-05012-0 Return SpringReturn Spring
-
73R1-05003-1 RatchetRatchet
-
83R1-05007-0 Friction SpringFriction Spring
-
93R1-05138-1 Bolt, Starter ShaftBolt, Starter Shaft
-
103R1-05006-2 Friction PlateFriction Plate
-
3R1-05006-1 Friction PlateFriction Plate
-
113AA-05013-0 Stater RopeStater Rope
-
123R1-05019-0 Starter HandleStarter Handle
-
133R1-05131-1 Rope anchorRope anchor
-
143GR-05116-0 Sealing plate starterSealing plate starter
-
153GR-67503-0 スタ-タシ-ルスタ-タシ-ル
-
163GR-05252-0 Starter LockStarter Lock
-
173R1-05255-0 Coller Starter Lock ShaftColler Starter Lock Shaft
-
183R1-05216-0 Spring, Starter LockSpring, Starter Lock
-
193GR-05253-0 Cam starter lockCam starter lock
-
20940103-0600 WasherWasher
-
21921503-7616 ScrewScrew
-
22345-05223-1 Rod Snap,3.5-2Rod Snap,3.5-2
-
233R1-05215-0 collar,6.1-8-6.5collar,6.1-8-6.5
-
243R1-05258-0 Spring, Starter Lock CamSpring, Starter Lock Cam
-
25921503-5430 ScrewScrew
-
263AD-06864-0 New partNew part
-
27309-06972-0 Clamp,6.5-47.5PClamp,6.5-47.5P
-
283R0-72181-0 Caution Label BCaution Label B
-
293GR-05217-1 Rod, starter lockRod, starter lock
-
30345-05223-1 Rod Snap,3.5-2Rod Snap,3.5-2
