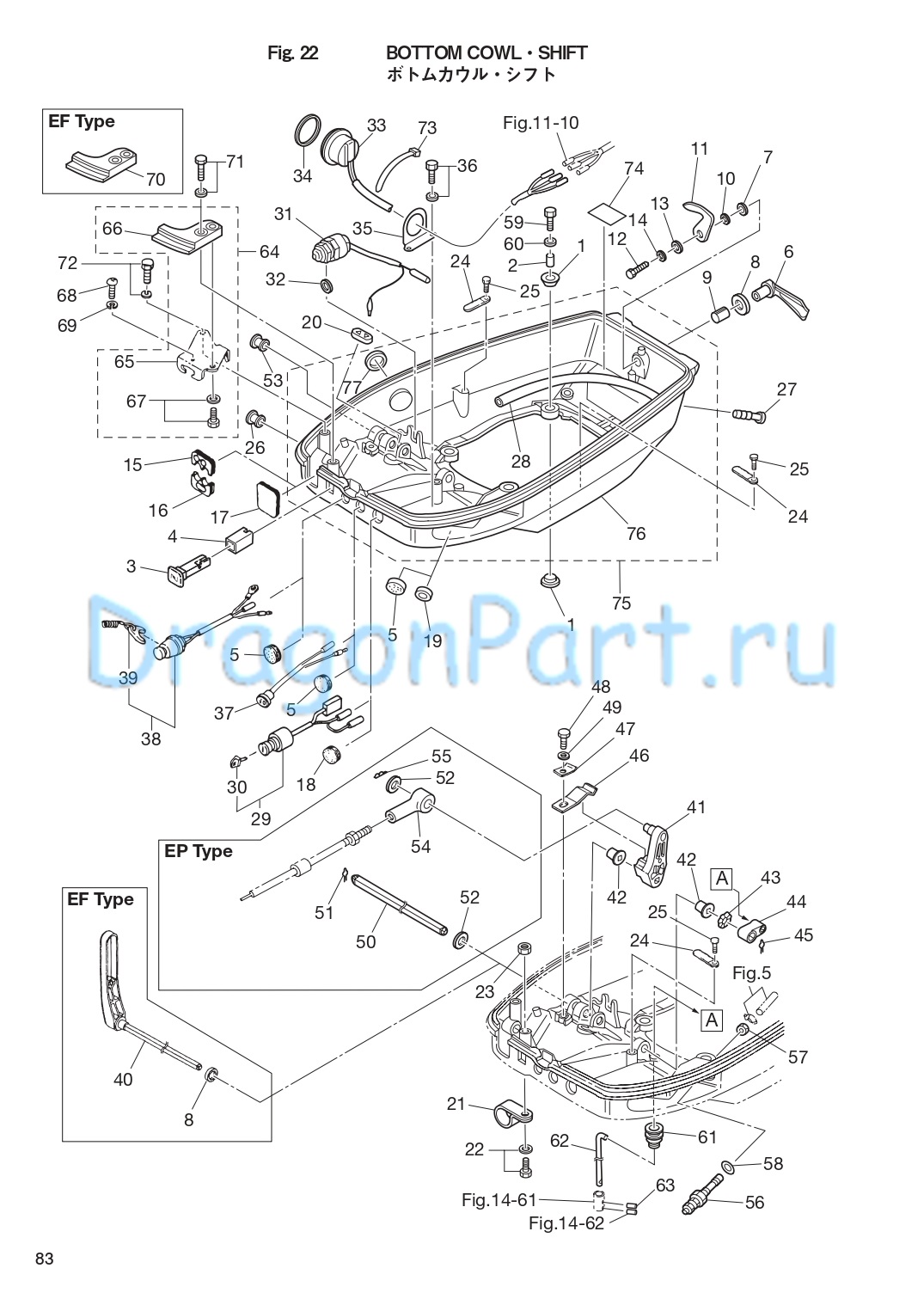

BOTTOM COWL SHIFT для Tohatsu MX50D2 - 2013 года выпуска
-
№АртикулНазвание
-
1346-67113-0 MOUNT 8.5-14-2.5MOUNT 8.5-14-2.5
-
2346-67114-1 SPACER 6.2-9-15.7SPACER 6.2-9-15.7
-
33C8-67151-1 CHOKE RODCHOKE ROD
-
43C8-67156-0 BUSHINGBUSHING
-
5345-67117-0 GROMMET 17-2.7
for EPO Model PTT Cord, Pilot Lamp, Stop SwichGROMMET 17-2.7
for EPO Model PTT Cord, Pilot Lamp, Stop Swich -
63C8Q67141-0 HOOK LEVERHOOK LEVER
-
73C8-67146-0 WASHER 14-22-1WASHER 14-22-1
-
8338-67147-0 SEAL RING
Hook Lever, Shift Lever for MF/EF TypeSEAL RING
Hook Lever, Shift Lever for MF/EF Type -
9369-67105-0 HOOK LEVER BUSHINGHOOK LEVER BUSHING
-
10941403-1400 WAVE WASHER ｄ=14WAVE WASHER ｄ=14
-
113C8-67142-1 COVER HOOKCOVER HOOK
-
12910103-0612 BOLTBOLT
-
133C8-66308-0 WASHER 6-16-1.5WASHER 6-16-1.5
-
14941303-0600 SPRING WASHERSPRING WASHER
-
173C8-67162-1 GROMMET
for MF/EF TypeGROMMET
for MF/EF Type -
18345-76092-0 GROMMET
for MF/EP TypeGROMMET
for MF/EP Type -
203C8-63621-0 GROMMET
for MF/EF TypeGROMMET
for MF/EF Type -
21345-06915-0 CLAMP 6.5-14L
for MF TypeCLAMP 6.5-14L
for MF Type -
22910103-5612 BOLT
for MF TypeBOLT
for MF Type -
23930103-0600 NUT
for MF TypeNUT
for MF Type -
24309-06972-0 CLAMP 6.5-47.5P
for MF/EPO ModelCLAMP 6.5-47.5P
for MF/EPO Model -
25910103-0610 BOLT
for MF & EPO/EFTO ModelBOLT
for MF & EPO/EFTO Model -
263B2-67187-0 GROMMETGROMMET
-
273T1-01138-0 NIPPLENIPPLE
-
2898AB-50-260 HOSE
98AB-501000HOSE
98AB-501000 -
383C8-06820-0 STOP SWITCH ASSY
for MF/EF TypeSTOP SWITCH ASSY
for MF/EF Type -
39353-06821-0 * STOP SWITCH LANYARD ASSY* STOP SWITCH LANYARD ASSY
-
403E3-66110-0 SHIFT LEVER
for MF/EF TypeSHIFT LEVER
for MF/EF Type -
413C8-66122-1 SHIFT ARMSHIFT ARM
-
42350-67101-0 BUSHINGBUSHING
-
43941403-1200 WAVE WASHER ｄ=12WAVE WASHER ｄ=12
-
443C8-66225-0 SHIFT ROD LEVER
for M40/50D2, MX50D2SHIFT ROD LEVER
for M40/50D2, MX50D2 -
443S7-66225-0 SHIFT ROD LEVER
for MW50D2, MWX50D2SHIFT ROD LEVER
for MW50D2, MWX50D2 -
45951703-0800 SNAP RETAINER ｄ=8
for MF/EF TypeSNAP RETAINER ｄ=8
for MF/EF Type -
463C8-66112-0 SHIFT LEVER STOPPERSHIFT LEVER STOPPER
-
473C8-66116-0 SHIFT LEVER STOPPERSHIFT LEVER STOPPER
-
489101F4-0610 BOLTBOLT
-
49940103-0600 WASHERWASHER
-
563B2-70260-1 FUEL CONNECTOR (MALE)FUEL CONNECTOR (MALE)
-
57332-70261-0 NUT 10-P1.25NUT 10-P1.25
-
58336-70112-0 GASKET 10.2-16-0.5GASKET 10.2-16-0.5
-
599101E3-0630 BOLTBOLT
-
60346-67115-0 WASHER 6.5-21-1WASHER 6.5-21-1
-
61345-66226-0 GROMMET 17-3GROMMET 17-3
-
623C8-66211-0 SHIFT RODSHIFT ROD
-
63951403-0312 SPRING PIN 3-12SPRING PIN 3-12
-
703C8Q76118-0 CLAMP
for MF/EF TypeCLAMP
for MF/EF Type -
71910103-5625 BOLT
ALLBOLT
ALL -
74360-72025-0 SPARK PLUG DECAL
B8HS10SPARK PLUG DECAL
B8HS10 -
753C8Q67110-0 BOTTOM COWL W/GROMMET
except EPTO ModelBOTTOM COWL W/GROMMET
except EPTO Model -
773F3-72618-0 * GROMMET
except EPTO Model* GROMMET
except EPTO Model
Все узлы модели:
- CYLINDER CRANK CASE
- PISTON CRANK SHAFT
- INTAKE MAINFOLD REED VALVE
- INTAKE SILENCER CARBURETOR
- FUEL LINE
- THROTTLE
- RECOIL STARTER
- MAGNETO
- ELECTRIC PARTS (STARTER MOTOR)
- ELECTRIC PARTS (C.D. UNIT)
- DRIVE SHAFT HOUSING
- GEAR CASE (M40/50D2)
- GEAR CASE (DRIVE SHAFT) MW50D2/MWX50D2
- GEAR CASE (PROPELLER SHAFT) MW50D2/MWX50D2
- BRACKET (MANUAL TILT)
- MANUAL TILT
- TILLER HANDLE
- • BOTTOM COWL SHIFT
- TOP COWL
- FUEL TANK
- ACCESSORIES
- OPTIONAL PARTS (1)
- OPTIONAL PARTS (4)
- ASSEMBLY KIT
