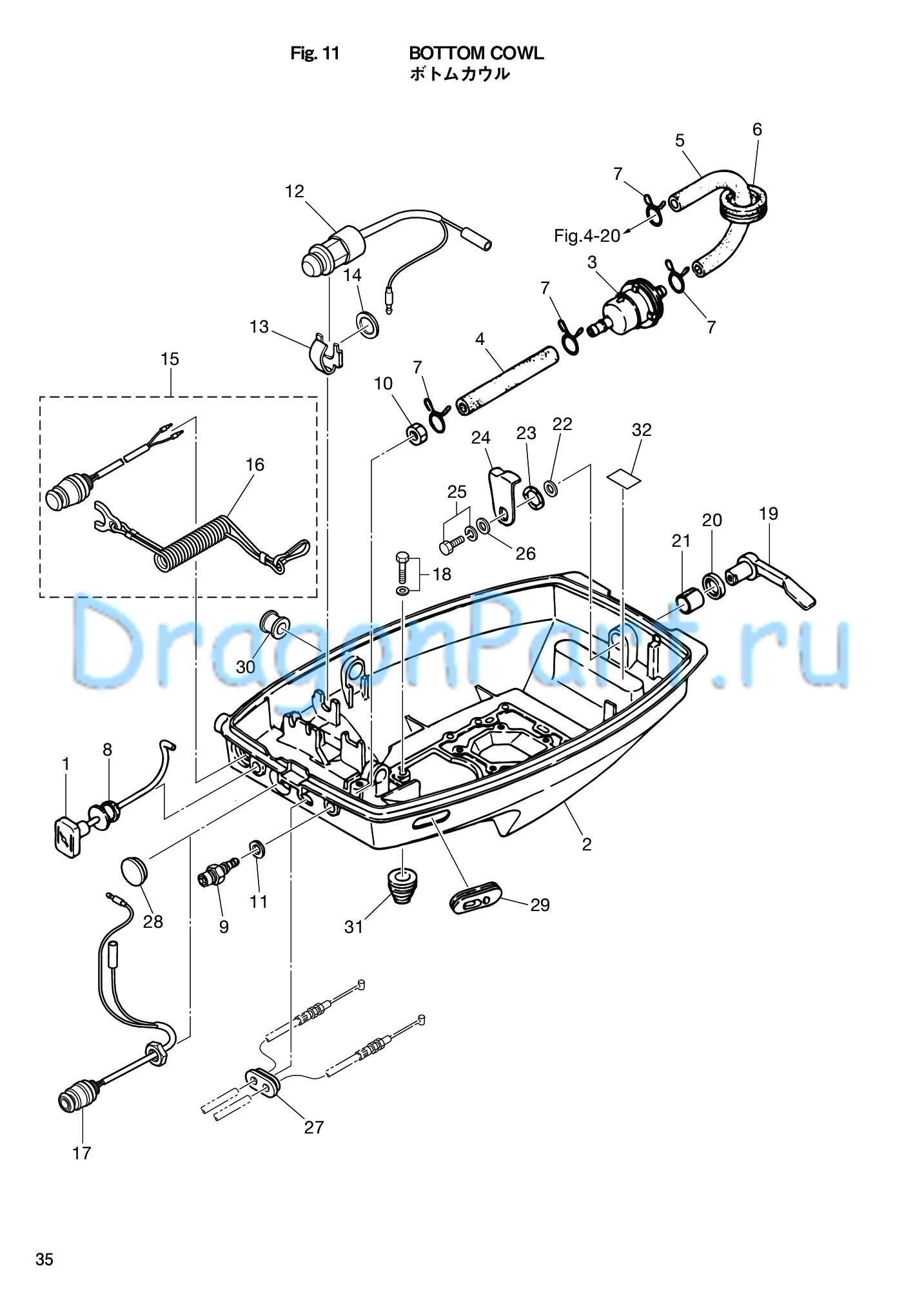

BOTTOM COWL для Tohatsu M8B - 2014 года выпуска
-
№АртикулНазвание
-
13B2-67151-0 CHOKE ROD"CHOKE ROD"
-
23B2Q67100-1 BOTTOM COWL"
Motor CoverBOTTOM COWL"
Motor Cover -
3369-02230-0 FUEL FILTER ASSY"FUEL FILTER ASSY"
-
498AB-50-075 HOSE"
F/Connector - F/Filter 98AB-501000HOSE"
F/Connector - F/Filter 98AB-501000 -
53B2-02212-0 FUEL HOSE"
Fuel Filter - CarburetorFUEL HOSE"
Fuel Filter - Carburetor -
6345-76023-0 GROMMET 22-2.5"GROMMET 22-2.5"
-
7338-02215-0 CLIP ?10"CLIP ?10"
-
8369-67104-0 CHOKE ROD BUSHING"CHOKE ROD BUSHING"
-
93B2-70260-1 FUEL CONNECTOR (MALE)FUEL CONNECTOR (MALE)
-
10332-70261-0 NUT 10-P1.25"NUT 10-P1.25"
-
11336-70112-0 GASKET 10.2-16-0.5GASKET 10.2-16-0.5
-
15398-06830-0 STOP SWITCH ASSY
for MF/EFSTOP SWITCH ASSY
for MF/EF -
16353-06821-0 * STOP SWITCH LANYARD ASSY
for MF/EF* STOP SWITCH LANYARD ASSY
for MF/EF -
189101E3-5620 BOLTBOLT
-
19369Q67141-1 HOOK LEVERHOOK LEVER
-
20338-67147-0 SEAL RINGSEAL RING
-
21369-67105-0 HOOK LEVER BUSHINGHOOK LEVER BUSHING
-
223C8-67146-0 WASHER 14-22-1WASHER 14-22-1
-
23941403-1400 WAVE WASHER d=14WAVE WASHER d=14
-
24369-67142-0 COVER HOOKCOVER HOOK
-
25910103-6612 BOLTBOLT
-
263C8-66308-0 WASHER 6-16-1.5WASHER 6-16-1.5
-
273B2-63621-0 GROMMET
for MF/EFGROMMET
for MF/EF -
28345-67117-0 GROMMET 17-2.7
for EPGROMMET 17-2.7
for EP -
29353-67162-0 GROMMETGROMMET
-
303B2-67187-0 GROMMETGROMMET
-
31345-66226-0 GROMMET 17-3GROMMET 17-3
-
32369-72025-0 SPARK PLUG DECAL
BP7HS10SPARK PLUG DECAL
BP7HS10 -
32369-72026-0 SPARK PLUG DECAL
BPR7HS10SPARK PLUG DECAL
BPR7HS10
