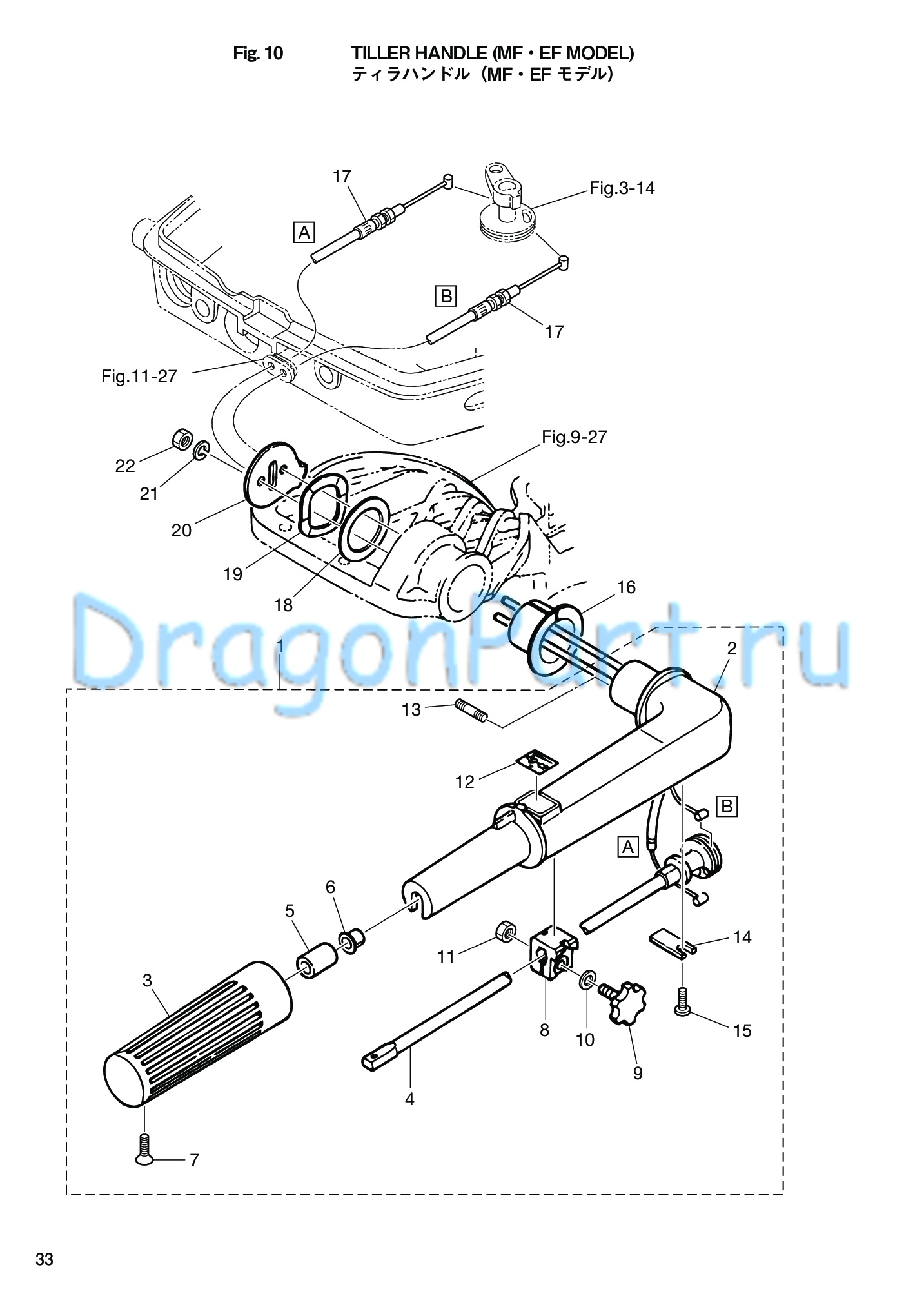

TILLER HANDLE для Tohatsu M9.8B - 2014 года выпуска
-
№АртикулНазвание
-
13B2Q63005-1 TILLER HANDLE SUB-ASSY"TILLER HANDLE SUB-ASSY"
-
23B2Q63011-1 * TILLER HANDLE"* TILLER HANDLE"
-
3350-63012-1 * GRIP"* GRIP"
-
43B2-63041-0 * THROTTLE SHAFT"* THROTTLE SHAFT"
-
5345-63048-0 * THROTTLE SHAFT DAMPER"* THROTTLE SHAFT DAMPER"
-
6350-63046-0 * BUSHING 8.4-10-11"* BUSHING 8.4-10-11"
-
7920803-0518 * SCREW"* SCREW"
-
83B2-63035-1 * FRICTION PIECE"* FRICTION PIECE"
-
93B2-63034-0 * ADJUSTING SCREW"* ADJUSTING SCREW"
-
10940103-0600 * WASHER"* WASHER"
-
11930103-0600 * NUT"* NUT"
-
12369-72019-1 * THROTTLE DECAL"* THROTTLE DECAL"
-
133B2-63104-1 * STUD"* STUD"
-
143B2-63063-0 * THROTTLE SHAFT SUPPORT"* THROTTLE SHAFT SUPPORT"
-
159215E3-0612 * SCREW"* SCREW"
-
163B2-63102-0 BUSHING"BUSHING"
-
173B2-63600-1 THROTTLE WIRE"THROTTLE WIRE"
-
183B2-63108-0 WASHER 30-45-1"WASHER 30-45-1"
-
193B2-63109-0 WAVE WASHER 30-45-1.2"WAVE WASHER 30-45-1.2"
-
203B2-63103-0 STEERING HANDLE STOPPER"STEERING HANDLE STOPPER"
-
21941303-0600 SPRING WASHER"SPRING WASHER"
-
22930103-0600 NUT"NUT"
