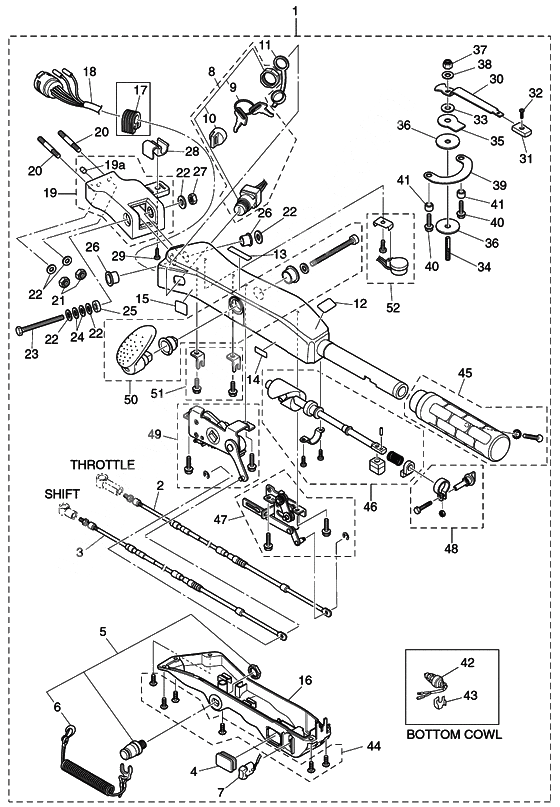

Tiller handle (multi-function) для Tohatsu MFS30B - 2014 года выпуска
-
№АртикулНазвание
-
13AHQ63000-0 Multi function tiller handle f25/30bMulti function tiller handle f25/30b
-
23AH-63600-0 Throttle WireThrottle Wire
-
33AH-66196-0 Shift cableShift cable
-
43AH-63624-0 GrommetGrommet
-
5398-06830-0 Safety Switch Ass'ySafety Switch Ass'y
-
6353-06821-0 Lock, lanyard stop switchLock, lanyard stop switch
-
73AH-72615-0 Ptt switch assyPtt switch assy
-
83GF-76020-0 Main SwitchMain Switch
-
93GF-76217-0 Key-#943Key-#943
-
93GF-76218-0 Key-#944Key-#944
-
93GF-76219-0 Key-#945Key-#945
-
103GF-76205-0 Main switch key capMain switch key cap
-
113T5-76022-0 Cap, Main SwitchCap, Main Switch
-
123GF-72019-0 Throttle decalThrottle decal
-
133GF-67578-0 Shift decalShift decal
-
143GF-72200-0 Stop switch decalStop switch decal
-
153AH-84339-0 Instruction decalInstruction decal
-
163GF-63320-0 Tiller handle coverTiller handle cover
-
173GF-63624-0 GrommetGrommet
-
183AH-76119-0 Cord assy, tiller handle kit, d25/30bCord assy, tiller handle kit, d25/30b
-
193AHQ62000-0 Steering bracket assy, d25/30bSteering bracket assy, d25/30b
-
19A3GF-65012-0 Dowel pin, tiller handleDowel pin, tiller handle
-
209153E3-1040 StudStud
-
21930403-1000 Nylon NutNylon Nut
-
229401E3-1000 WasherWasher
-
233GF-63201-0 BoltBolt
-
243GF-63305-0 Conical spring washerConical spring washer
-
253GF-63025-0 SpacerSpacer
-
263GF-63102-0 BushingBushing
-
273GF-63310-0 Lock nutLock nut
-
283GF-62004-0 Cord holderCord holder
-
293T5-06437-0 Tapping Screw, 6-16Tapping Screw, 6-16
-
303AC-62441-0 Friction lever, d25/30bFriction lever, d25/30b
-
313AC-63012-0 GripGrip
-
32346-66334-0 StopperStopper
-
333R3-62443-0 WasherWasher
-
343R3-62445-0 BoltBolt
-
353R3-62448-1 Washer, Co PilotWasher, Co Pilot
-
363R3-62449-0 Disk, Co PilotDisk, Co Pilot
-
37930403-0800 Nylon NutNylon Nut
-
389401E3-0800 WasherWasher
-
940103-0800 WasherWasher
-
393AC-62447-0 Plate co-pilotPlate co-pilot
-
40910103-5616 BoltBolt
-
413AC-63619-0 CollarCollar
-
42361-76080-0 Нейтральный переключательНейтральный переключатель
-
43398-76083-0 Actuator Neutral SwitchActuator Neutral Switch
-
443GF-63205-0 Screw setScrew set
-
453GF-63193-0 Grip parts kitGrip parts kit
-
463GF-63062-0 Throttle shaft kitThrottle shaft kit
-
473GF-63067-0 Throttle link assy
945303-0400 E-RING X1Throttle link assy
945303-0400 E-RING X1 -
483GF-63032-0 Throttle friction assyThrottle friction assy
-
493GF-66160-0 Shift unit assy
945303-0400 E-RING X1Shift unit assy
945303-0400 E-RING X1 -
503GF-66158-0 Shift lever kitShift lever kit
-
513GF-66198-0 Cable bracket kitCable bracket kit
-
523GF-76175-0 Buzzer kitBuzzer kit
