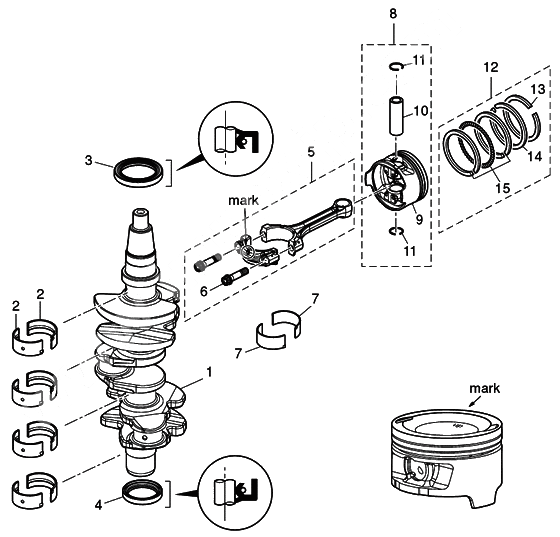

Piston & crank shaft для Tohatsu MFS50A - 2014 года выпуска
-
№АртикулНазвание
-
13KY-00030-0 Crankshaft assyCrankshaft assy
-
23KY-07707-0 Plain shaft bearing (brown)
BROWN / SEE SERVICE MANUALPlain shaft bearing (brown)
BROWN / SEE SERVICE MANUAL -
23KY-07708-0 Plain shaft bearing (black)
BLACK / SEE SERVICE MANUALPlain shaft bearing (black)
BLACK / SEE SERVICE MANUAL -
23KY-07750-0 Plain shaft bearing (blue)
BLUE / SEE SERVICE MANUALPlain shaft bearing (blue)
BLUE / SEE SERVICE MANUAL -
33KY-00122-0 Oil seal, 50-68-9
UPPEROil seal, 50-68-9
UPPER -
43KY-00121-0 Oil seal, 38-50-8
LOWEROil seal, 38-50-8
LOWER -
53KY-00040-0 Connecting rod assyConnecting rod assy
-
63KY-00059-0 Connecting rod boltConnecting rod bolt
-
73KY-00080-0 Big end bearing (brown)
BROWN / SEE SERVICE MANUALBig end bearing (brown)
BROWN / SEE SERVICE MANUAL -
73KY-00081-0 Big end bearing (black)
BLACK / SEE SERVICE MANUALBig end bearing (black)
BLACK / SEE SERVICE MANUAL -
73KY-00082-0 Big end bearing (blue)
BLUE / SEE SERVICE MANUALBig end bearing (blue)
BLUE / SEE SERVICE MANUAL -
83KY-87130-0 Piston repair kit (std)
STDPiston repair kit (std)
STD -
83KY-87131-0 Piston repair kit (o/s)
OPTPiston repair kit (o/s)
OPT -
93KY-00001-0 Piston (std)
STDPiston (std)
STD -
93KY-00004-0 Piston (o/s)
OPTPiston (o/s)
OPT -
103KY-00021-0 Piston PinPiston Pin
-
113LC-00024-0 Piston pin clipPiston pin clip
-
123KY-87123-0 Piston ring set (std)
STDPiston ring set (std)
STD -
123KY-87124-0 Piston ring set (o/s)
OPTPiston ring set (o/s)
OPT -
133KY-00011-0 Piston ring, 1st (std)
1ST / STDPiston ring, 1st (std)
1ST / STD -
133KY-00014-0 Piston ring, 1st (o/s)
OPTPiston ring, 1st (o/s)
OPT -
143KY-00012-0 Piston ring, 2nd (std)
2ND / STDPiston ring, 2nd (std)
2ND / STD -
143KY-00015-0 Piston ring, 2nd (o/s)
2ND / OPTPiston ring, 2nd (o/s)
2ND / OPT -
153KY-00013-0 Piston ring, oil (std)
OIL / STDPiston ring, oil (std)
OIL / STD -
153KY-00016-0 Piston ring, oil (o/s)
OIL / OPTPiston ring, oil (o/s)
OIL / OPT -
13KY-00030-0 Crankshaft assyCrankshaft assy
-
23KY-07707-0 Plain shaft bearing (brown)
BROWN / SEE SERVICE MANUALPlain shaft bearing (brown)
BROWN / SEE SERVICE MANUAL -
23KY-07708-0 Plain shaft bearing (black)
BLACK / SEE SERVICE MANUALPlain shaft bearing (black)
BLACK / SEE SERVICE MANUAL -
23KY-07750-0 Plain shaft bearing (blue)
BLUE / SEE SERVICE MANUALPlain shaft bearing (blue)
BLUE / SEE SERVICE MANUAL -
33KY-00122-0 Oil seal, 50-68-9
UPPEROil seal, 50-68-9
UPPER -
43KY-00121-0 Oil seal, 38-50-8
LOWEROil seal, 38-50-8
LOWER -
53KY-00040-0 Connecting rod assyConnecting rod assy
-
63KY-00059-0 Connecting rod boltConnecting rod bolt
-
73KY-00080-0 Big end bearing (brown)
BROWN / SEE SERVICE MANUALBig end bearing (brown)
BROWN / SEE SERVICE MANUAL -
73KY-00081-0 Big end bearing (black)
BLACK / SEE SERVICE MANUALBig end bearing (black)
BLACK / SEE SERVICE MANUAL -
73KY-00082-0 Big end bearing (blue)
BLUE / SEE SERVICE MANUALBig end bearing (blue)
BLUE / SEE SERVICE MANUAL -
83KY-87130-0 Piston repair kit (std)
STDPiston repair kit (std)
STD -
83KY-87131-0 Piston repair kit (o/s)
OPTPiston repair kit (o/s)
OPT -
93KY-00001-0 Piston (std)
STDPiston (std)
STD -
93KY-00004-0 Piston (o/s)
OPTPiston (o/s)
OPT -
103KY-00021-0 Piston PinPiston Pin
-
113LC-00024-0 Piston pin clipPiston pin clip
-
123KY-87123-0 Piston ring set (std)
STDPiston ring set (std)
STD -
123KY-87124-0 Piston ring set (o/s)
OPTPiston ring set (o/s)
OPT -
133KY-00011-0 Piston ring, 1st (std)
1ST / STDPiston ring, 1st (std)
1ST / STD -
133KY-00014-0 Piston ring, 1st (o/s)
OPTPiston ring, 1st (o/s)
OPT -
143KY-00012-0 Piston ring, 2nd (std)
2ND / STDPiston ring, 2nd (std)
2ND / STD -
143KY-00015-0 Piston ring, 2nd (o/s)
2ND / OPTPiston ring, 2nd (o/s)
2ND / OPT -
153KY-00013-0 Piston ring, oil (std)
OIL / STDPiston ring, oil (std)
OIL / STD -
153KY-00016-0 Piston ring, oil (o/s)
OIL / OPTPiston ring, oil (o/s)
OIL / OPT
