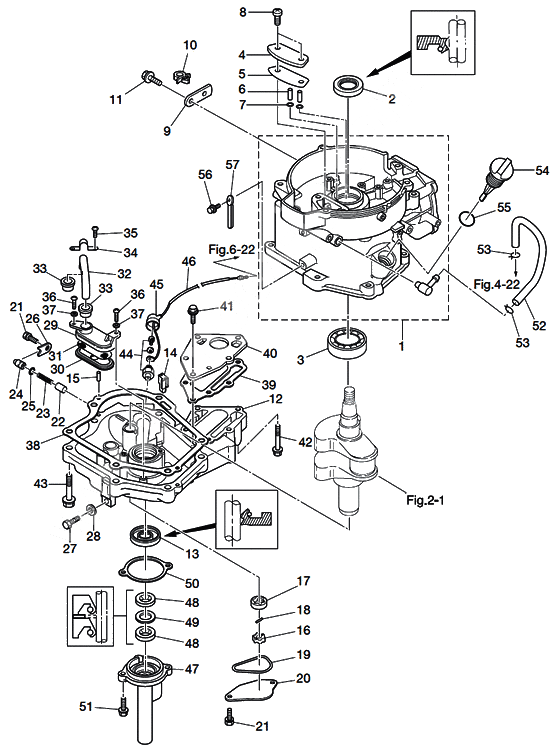

Cylinder & oil pan для Tohatsu MFS5C - 2014 года выпуска
-
№АртикулНазвание
-
13GRB01184-1 Cylinder 4/5/6c 4-st. (amb)Cylinder 4/5/6c 4-st. (amb)
-
23AB-00121-0 Oil SealOil Seal
-
39601-3-6205 Ball BearingBall Bearing
-
43ASB07431-0 Cap breather chamber 4/5/6bCap breather chamber 4/5/6b
-
53AS-07432-0 Gasket breather capGasket breather cap
-
63R1-07439-0 Collar, Breather(5A new)Collar, Breather(5A new)
-
7941403-0500 WasherWasher
-
8921521-6616 Stud BoltStud Bolt
-
93GR-63505-0 Holder cableHolder cable
-
103GR-06973-0 ClampClamp
-
11910103-5612 BoltBolt
-
123AS-07709-0 Oil pan nsf4/5/6a b cOil pan nsf4/5/6a b c
-
133GR-00122-0 Oil SealOil Seal
-
143H6-07404-0 Gromet, Oil PanGromet, Oil Pan
-
15345-01111-0 Dowel Pin 6-12Dowel Pin 6-12
-
163H6-07601-0 Rotor, Oil PumpInnerRotor, Oil PumpInner
-
173H6-07602-0 Rotor,oil Pump OuterRotor,oil Pump Outer
-
183H6-07603-0 Pin, Oil PumpPin, Oil Pump
-
193R1-07605-0 O-ring Oil PumpO-ring Oil Pump
-
203H6-07606-0 Cover, Oil PumpCover, Oil Pump
-
21910121-6616 Bolt
OIL PUMP COVER / PLUNGER COVERBolt
OIL PUMP COVER / PLUNGER COVER -
223H6-07621-0 Plunger, ControlPlunger, Control
-
233H6-07622-0 Spring, PressureSpring, Pressure
-
243H6-07623-0 Spring WasherSpring Washer
-
25345-66021-0 O-RingO-Ring
-
263H6-67115-0 Cover, PlungerCover, Plunger
-
273H6-07705-1 Bolt drainBolt drain
-
283H6-07406-0 WasherWasher
-
293H6-07411-0 Body, StrainerBody, Strainer
-
303H6-07412-0 Cup, StrainerCup, Strainer
-
313H6-07413-0 Mesh StrainerMesh Strainer
-
323H6-07415-0 Pipe, StrainerPipe, Strainer
-
333H6-07416-0 Stopper, StrainerStopper, Strainer
-
343H6-07417-0 Stopper, StrainrStopper, Strainr
-
35921521-6512 Stud BoltStud Bolt
-
363C8-02420-0 Bolt 5-16 PrecoatedBolt 5-16 Precoated
-
37940121-0500 WasherWasher
-
383H6-07402-0 Gasket, Oil PanGasket, Oil Pan
-
393H6-02305-0 Gasket, Exh.plateGasket, Exh.plate
-
403H6-02302-1 Elate, ExhaustElate, Exhaust
-
419101F4-5620 BoltBolt
-
910114-5620 BoltBolt
-
429101F4-5640 BoltBolt
-
910114-5640 BoltBolt
-
43910124-5840 BoltBolt
-
443H6-07611-0 Switch, Oil PressureSwitch, Oil Pressure
-
453H6-07612-0 Grommet, oil pressure switchGrommet, oil pressure switch
-
463GR-07613-0 Lead wire oil pressure switch (l=390mm)Lead wire oil pressure switch (l=390mm)
-
47369-01210-4 Head, Crank CaseHead, Crank Case
-
483GR-01215-0 Oil SealOil Seal
-
49369-01217-0 SpacerSpacer
-
50369-01214-0 Gasket Crank Case HeadGasket Crank Case Head
-
51910103-5620 BoltBolt
-
523R1-07435-0 Breezer Pipe(5A New)Breezer Pipe(5A New)
-
533C7-02215-0 ClipClip
-
543H6-07421-0 Filler Cap, Engine- OilFiller Cap, Engine- Oil
-
553H6-07422-0 New partNew part
-
56910103-5612 BoltBolt
-
57309-06972-0 Clamp,6.5-47.5PClamp,6.5-47.5P
