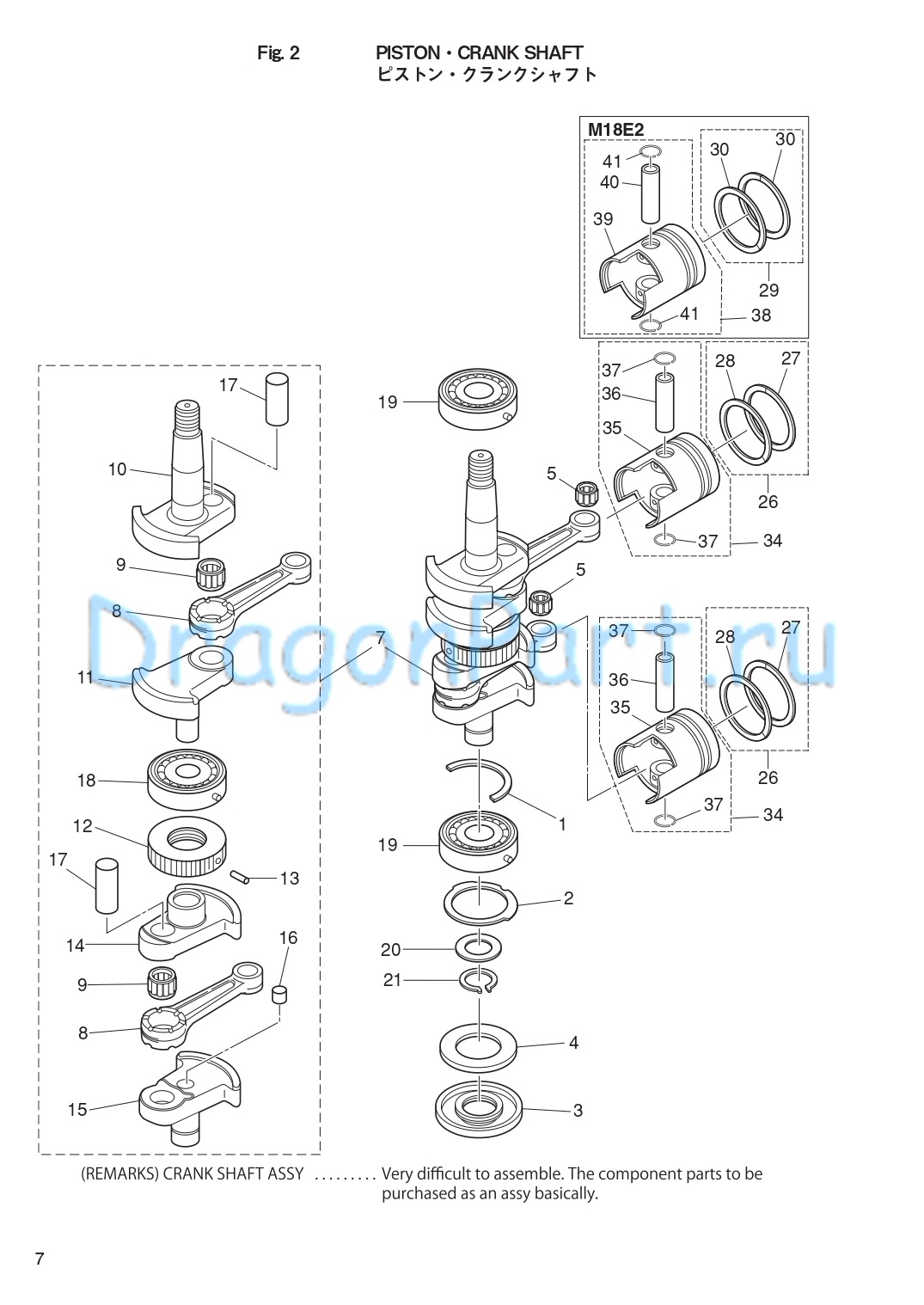

PISTON CRANK SHAFT для Tohatsu M18E2 - 2015 года выпуска
-
№АртикулНазвание
-
1350-00115-0 THRUST PLATE
for M18E2 & M15/9.9D2THRUST PLATE
for M18E2 & M15/9.9D2 -
2350-00107-0 THRUST PLATETHRUST PLATE
-
33M2-00122-0 OIL SEAL 25-62-9.5
for M18E2 & M15/9.9D2OIL SEAL 25-62-9.5
for M18E2 & M15/9.9D2 -
4362-00128-0 OIL SEALING RING
for M18E2 & M15/9.9D2OIL SEALING RING
for M18E2 & M15/9.9D2 -
53M3-00042-0 ROLLER BEARING 14-18-20
for M18E2 & M15/9.9D2ROLLER BEARING 14-18-20
for M18E2 & M15/9.9D2 -
73M2-00069-1 CRANKSHAFT SUB-ASSYCRANKSHAFT SUB-ASSY
-
8350-00040-0 CONNECTINGRODCONNECTINGROD
-
93G4-00043-0 ROLLERBEARING 20-26-16ROLLERBEARING 20-26-16
-
103M2-00031-1 CRANKSHAFT ACRANKSHAFT A
-
11350-00032-1 CRANKSHAFT BCRANKSHAFT B
-
12350-00051-1 LABYRINTH PACKINGLABYRINTH PACKING
-
13951407-0308 SPRING PIN 3-8SPRING PIN 3-8
-
14350-00033-1 CRANKSHAFT CCRANKSHAFT C
-
15350-00034-2 CRANKSHAFT DCRANKSHAFT D
-
16350-00062-0 SEALING PLUGSEALING PLUG
-
17350-00061-1 CRANK PINCRANK PIN
-
189603-3-6305 BALL BEARING
CenterBALL BEARING
Center -
199603-3-6305 BALL BEARING
Upper, LowerBALL BEARING
Upper, Lower -
20346-00116-0 SPACER 25.2-34-1.6SPACER 25.2-34-1.6
-
21945102-2500 C-RINGC-RING
-
293M4-87123-0 PISTON RING SET
STD for M18E2PISTON RING SET
STD for M18E2 -
293M4-87124-0 PISTON RING SET (0.5 O/S)
OPT for M18E2PISTON RING SET (0.5 O/S)
OPT for M18E2 -
30350-00011-0 PISTON RING
STD for M18E2PISTON RING
STD for M18E2 -
30350-00014-0 PIST0N RING (0.5 0/S)
OPT for M18E2PIST0N RING (0.5 0/S)
OPT for M18E2 -
383M4-87130-0 PISTON REPAIR KIT
STD for M18E2PISTON REPAIR KIT
STD for M18E2 -
383M4-87131-0 PISTON REPAIR KIT (0.5 O/S)
OPT for M18E2PISTON REPAIR KIT (0.5 O/S)
OPT for M18E2 -
39350-00001-1 PISTON
STD for M18E2PISTON
STD for M18E2 -
39350-00004-1 PISTON (0.5 O/S)
OPT for M18E2PISTON (0.5 O/S)
OPT for M18E2 -
40350-00021-1 PISTON PIN
for M18E2PISTON PIN
for M18E2 -
41350-00024-1 PISTON PIN CLIP
for M18E2PISTON PIN CLIP
for M18E2
