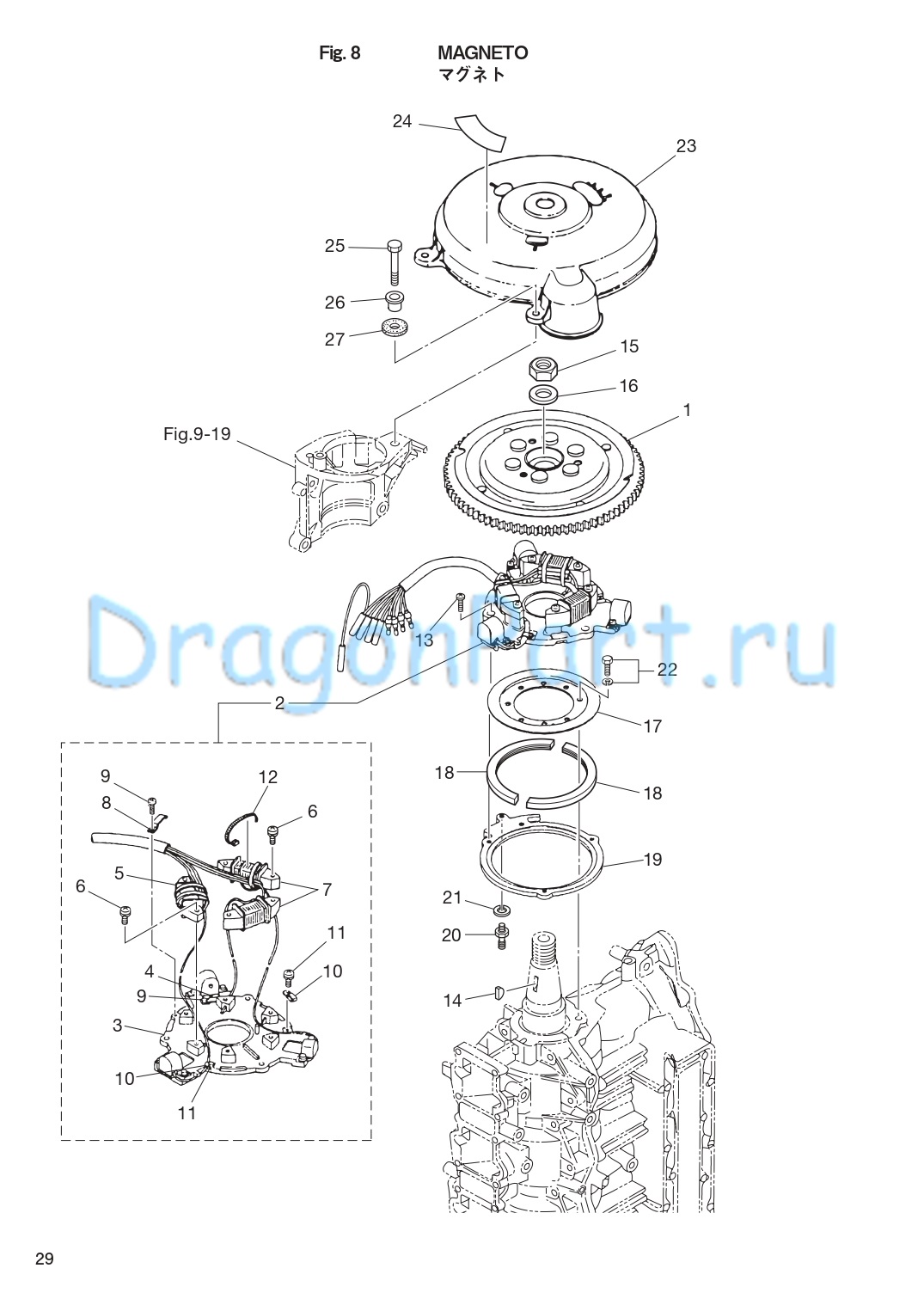

MAGNETO для Tohatsu M40D2 - 2015 года выпуска
-
№АртикулНазвание
-
13C8-06101-1 FLYWHEEL W/RING GEAR
F4T405-72FLYWHEEL W/RING GEAR
F4T405-72 -
23C8-06103-3 COIL PLATE ASSY W/ALTERNATORCOIL PLATE ASSY W/ALTERNATOR
-
33C8-06130-2 * PULSAR COIL & PLATE ASSY* PULSAR COIL & PLATE ASSY
-
43B7-06131-0 * PULSAR HOLDER* PULSAR HOLDER
-
53C8-06120-1 * EXCITER COIL* EXCITER COIL
-
6921521-6630 * SCREW* SCREW
-
73C8-06123-1 * ALTERNATOR ASSY* ALTERNATOR ASSY
-
83B7-06135-0 * HOLDER* HOLDER
-
9921521-0406 * SCREW* SCREW
-
103B7-06132-0 * CLAMP* CLAMP
-
11921521-6406 * SCREW* SCREW
-
123B7-06133-0 * BAND* BAND
-
13921503-6510 SCREWSCREW
-
14334-00131-0 KEY
MagnetoKEY
Magneto -
15353-00132-0 NUT 18-P1.5NUT 18-P1.5
-
16353-00133-0 WASHER 19-34-3WASHER 19-34-3
-
173C8-63722-0 GUIDE PLATEGUIDE PLATE
-
183C8-63725-0 GUIDE PLATE COVERGUIDE PLATE COVER
-
193C8-63723-0 SETTING RINGSETTING RING
-
20346-05228-1 BALL JOINTBALL JOINT
-
21941303-0600 SPRING WASHERSPRING WASHER
-
22910121-6616 BOLTBOLT
-
233C8-06301-0 RING GEAR COVER
for EP TypeRING GEAR COVER
for EP Type -
243C7-72182-2 CAUTION DECAL (C)CAUTION DECAL (C)
-
25910103-0625 BOLT
for EP TypeBOLT
for EP Type -
263GF-06304-0 COLLAR 9.1-16-10.8
for EP TypeCOLLAR 9.1-16-10.8
for EP Type -
273B7-06305-0 RUBBER MOUNT 9-16-4.3
for EP TypeRUBBER MOUNT 9-16-4.3
for EP Type
