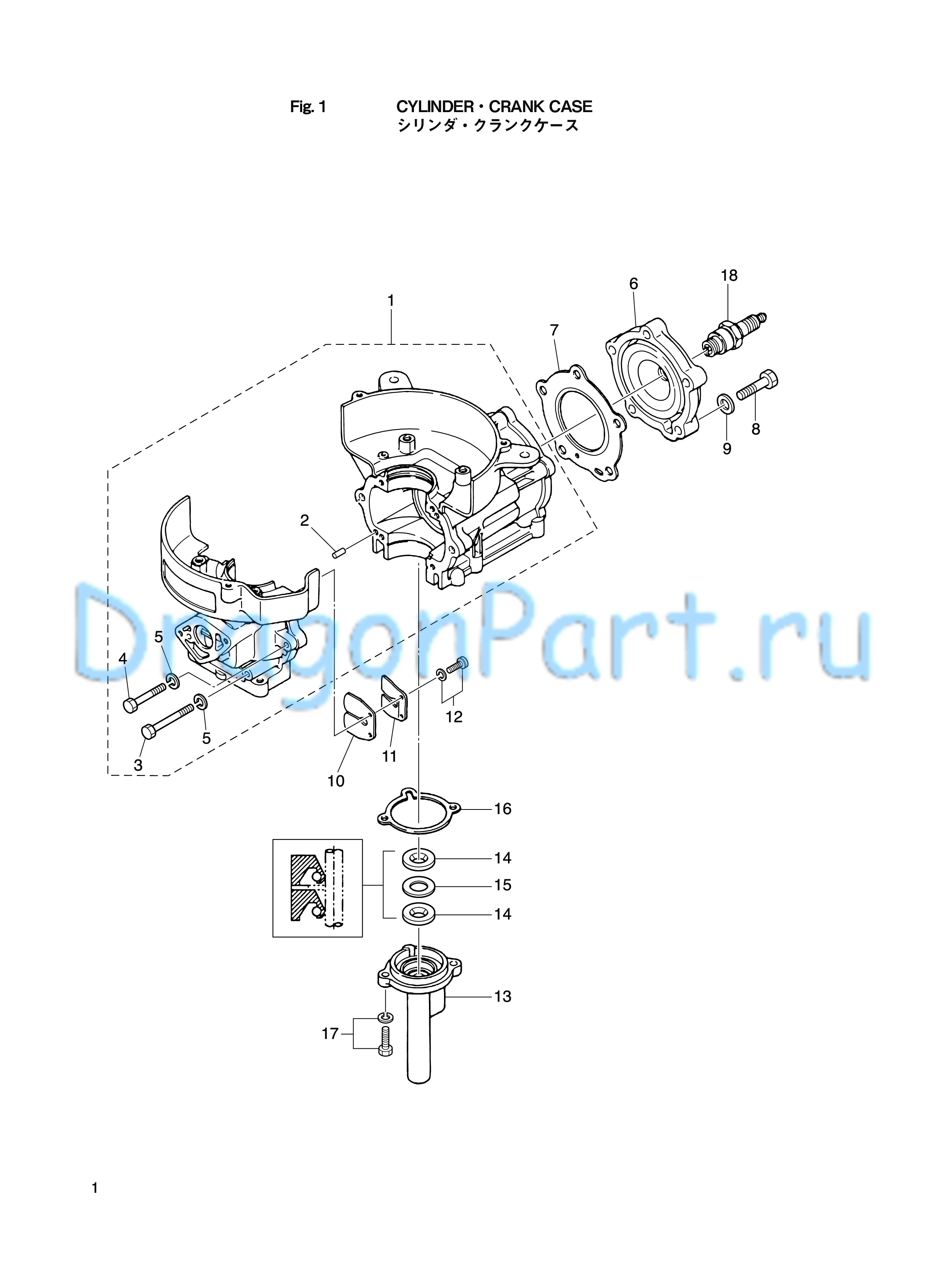

CYLINDER CRANK CASE для Tohatsu M5B - 2015 года выпуска
-
№АртикулНазвание
-
1369B01100-2 CYL BLOCK & CRANKCASE ASSYCYL BLOCK & CRANKCASE ASSY
-
2345-01111-0 * DOWEL PIN 6-12* DOWEL PIN 6-12
-
3916124-0653 * BOLT* BOLT
-
4916124-0630 * BOLT* BOLT
-
5941322-0600 * SPRING WASHER* SPRING WASHER
-
6369B01001-1 CYLINDER HEADCYLINDER HEAD
-
7369-01005-2 CYLINDER HEAD GASKETCYLINDER HEAD GASKET
-
89161F4-0835 BOLTBOLT
-
9940124-0800 WASHERWASHER
-
10369-02111-0 REED VALVEREED VALVE
-
11369-02113-0 REED VALVE STOPPER
for M5BREED VALVE STOPPER
for M5B -
12921521-6410 SCREWSCREW
-
13369-01210-4 CRANKCASE HEADCRANKCASE HEAD
-
14369-01215-0 OIL SEAL 10.1-25-7OIL SEAL 10.1-25-7
-
15369-01217-0 SPACER 19-24.8-1SPACER 19-24.8-1
-
16369-01214-0 CRANKCASE HEAD GASKETCRANKCASE HEAD GASKET
-
17910103-6620 BOLTBOLT
-
189701-1-1014 SPARK PLUG (BPR7HS10)
NGKSPARK PLUG (BPR7HS10)
NGK
