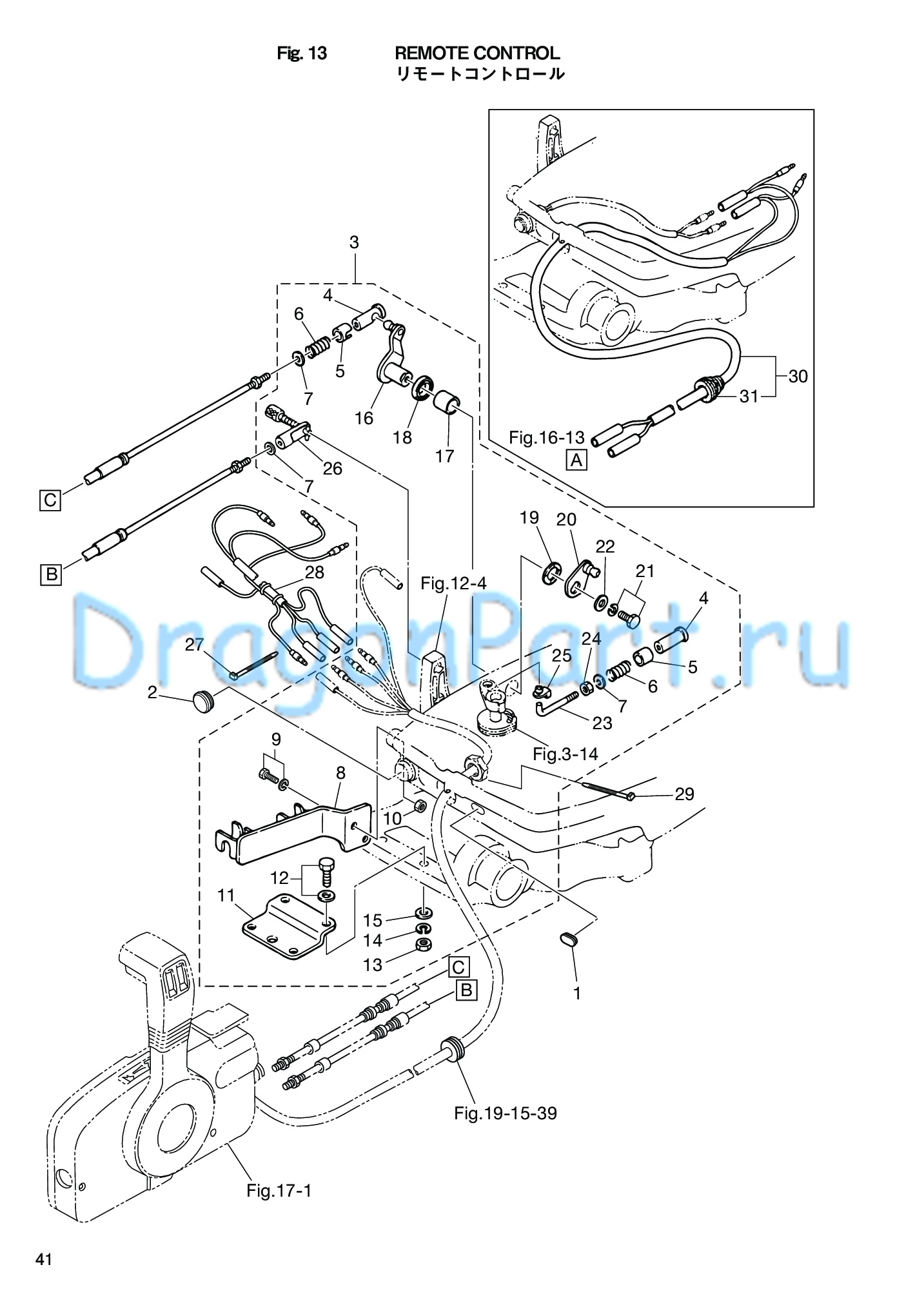

REMOTE CONTROL для Tohatsu M8B - 2015 года выпуска
-
№АртикулНазвание
-
13B2-63624-0 GROMMET
for EPGROMMET
for EP -
33B2-83880-3 REMOTE CONTROL FITTING ASSY
for EPREMOTE CONTROL FITTING ASSY
for EP -
43A1-83722-0 * BALL JOINT HOLDER* BALL JOINT HOLDER
-
5332-83723-0 * HOLDER CAP* HOLDER CAP
-
6332-83724-0 * SPRING* SPRING
-
7332-83725-0 * WASHER 5.5-14-1.2* WASHER 5.5-14-1.2
-
83B2-83820-0 * CABLE CLIP ASSY* CABLE CLIP ASSY
-
9910103-6616 * BOLT* BOLT
-
10930103-0600 * NUT* NUT
-
11369-83830-2 * STEERING HOOK PLATE* STEERING HOOK PLATE
-
12910103-5830 * BOLT* BOLT
-
13930103-0800 * NUT* NUT
-
14941303-0800 * SPRING WASHER* SPRING WASHER
-
15940103-0800 * WASHER* WASHER
-
16369-83726-0 * THROTTLE LEVER* THROTTLE LEVER
-
17369-67105-0 * HOOK LEVER BUSHING* HOOK LEVER BUSHING
-
18338-67147-0 * SEAL RING* SEAL RING
-
19941403-1400 * WAVE WASHER d=14* WAVE WASHER d=14
-
203B2-83887-1 * THROTTLE LEVER* THROTTLE LEVER
-
21910103-6612 * BOLT* BOLT
-
223C8-66308-0 * WASHER 6-16-1.5* WASHER 6-16-1.5
-
233B2-83863-1 * THROTTLE LEVER ROD* THROTTLE LEVER ROD
-
243B2-83865-0 * NUT 10-32UNF* NUT 10-32UNF
-
25345-05224-0 * ROD SNAP 5-2.5* ROD SNAP 5-2.5
-
263A1-83710-1 * CABLE JOINT ASSY* CABLE JOINT ASSY
-
27353-84398-0 BAND 100
for EPBAND 100
for EP -
283B2-76166-0 ASSIST CORD COMPLETE
for EPASSIST CORD COMPLETE
for EP -
29353-84398-0 BAND 100
for EPBAND 100
for EP -
303B2-83857-0 REMOTE CONTROL STOP CORD ASSY L=3900
OPTREMOTE CONTROL STOP CORD ASSY L=3900
OPT -
303K9-83857-0 REMOTE CONTROL STOP CORD ASSY L=5900
OPTREMOTE CONTROL STOP CORD ASSY L=5900
OPT -
31345-66226-0 * GROMMET 17-3
OPT* GROMMET 17-3
OPT
