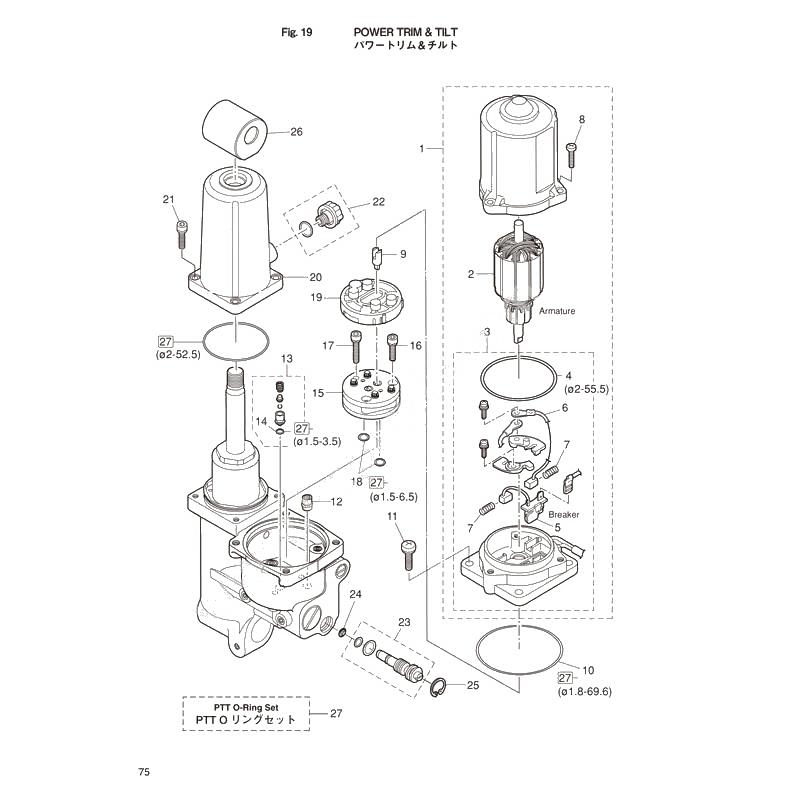

Power trim & tilt для Tohatsu MD50B2 - 2015 года выпуска
-
№АртикулНазвание
-
13Z5-77180-0 Motor Ass'y
PTTモデルMotor Ass'y
PTTモデル -
23Z5-77190-0 Armature assyArmature assy
-
33Z5-77192-0 Motor Brackrt Ass'yMotor Brackrt Ass'y
-
43Z5-77182-0 O-Ring 2-55.5O-Ring 2-55.5
-
53Z5-77191-0 BreakerBreaker
-
63E0-77183-0 BrushBrush
-
73E0-77184-0 Spring BrushSpring Brush
-
8921503-0520 ScrewScrew
-
93Z5-77166-0 CouplingCoupling
-
103B7-77167-0 O-RingO-Ring
-
113Z5-77194-0 ScrewScrew
-
123Z5-77460-0 Valve Ass'yValve Ass'y
-
133Z5-77450-0 Relief Balve Ass'yRelief Balve Ass'y
-
143R0-77451-0 O-Ring,1.5-3.5O-Ring,1.5-3.5
-
153B7-77430-0 PumpPump
-
163B7-77432-1 BoltBolt
-
173B7-77431-1 BoltBolt
-
183B7-77433-0 O-RingO-Ring
-
193B7-77434-1 Filter BFilter B
-
203Z5-77165-1 リザーブタンクリザーブタンク
-
213Z5-77159-0 BoltBolt
-
223Z5-77221-0 Cap Ass'y
OリングCap Ass'y
Oリング -
233Z5-77175-0 Manual Balve Ass'y
Oリング x2Manual Balve Ass'y
Oリング x2 -
243R0-77173-0 Seal WasherSeal Washer
-
253Z5-77171-0 C-RingC-Ring
-
263Z5-77367-0 Joint MetalJoint Metal
-
273Z5-77225-0 O-Ring SetO-Ring Set
