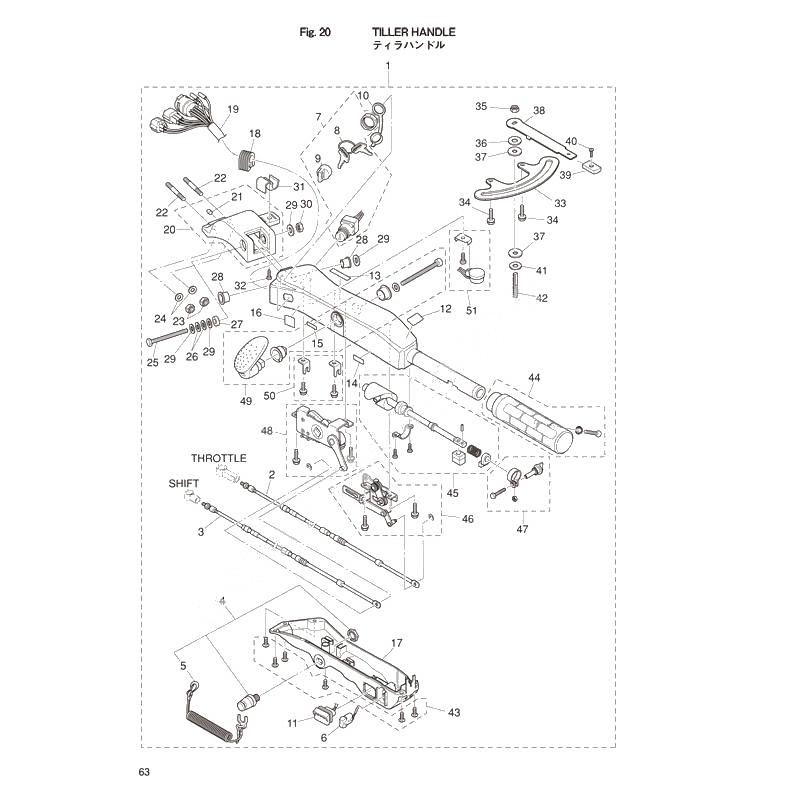

Tiller handle для Tohatsu MFS40A - 2015 года выпуска
-
№АртикулНазвание
-
13KYQ63000-0 Tiller handle kitTiller handle kit
-
23KY-63600-0 スロットルワイヤスロットルワイヤ
-
33KY-66196-0 Shift cableShift cable
-
4398-06830-0 Safety Switch Ass'ySafety Switch Ass'y
-
5353-06821-0 Lock, lanyard stop switchLock, lanyard stop switch
-
63AH-72615-0 PTTスイッチアッシ (B)PTTスイッチアッシ (B)
-
73GF-76020-0 Main SwitchMain Switch
-
83GF-76219-0 メインスイッチキー NO.945メインスイッチキー NO.945
-
93GF-76205-0 Main switch key capMain switch key cap
-
103T5-76022-0 Cap, Main SwitchCap, Main Switch
-
113GF-71040-0 Pilot lamp assyPilot lamp assy
-
123GF-72019-0 Throttle decalThrottle decal
-
133GF-67578-1 Decal shiftDecal shift
-
143GF-72198-0 Warning lamp decalWarning lamp decal
-
153GF-72200-0 Stop switch decalStop switch decal
-
163GF-84339-0 Instruction decalInstruction decal
-
173GF-63320-0 Tiller handle coverTiller handle cover
-
183GF-63624-0 Grommet exhaust housingGrommet exhaust housing
-
193KY-76119-0 Cord assyCord assy
-
203AHQ62000-0 ステアリングブラケットアッシステアリングブラケットアッシ
-
213GF-65012-0 ダウェルピン 8-16ダウェルピン 8-16
-
229153E3-1040 スタッドスタッド
-
23930403-1000 Nylon NutNylon Nut
-
249401E3-1000 WasherWasher
-
253GF-63201-0 New partNew part
-
263GF-63305-0 Conical spring washerConical spring washer
-
273GF-63025-0 SpacerSpacer
-
283GF-63102-0 BushingBushing
-
299401E3-1000 WasherWasher
-
303GF-63310-0 Lock nutLock nut
-
313GF-62004-0 Cord holderCord holder
-
323T5-06437-0 Tapping Screw, 6-16Tapping Screw, 6-16
-
333KY-62447-0 Plate, co-pilotPlate, co-pilot
-
343V1-60108-0 Bolt,6-16 Pre CoatedBolt,6-16 Pre Coated
-
353V5-62442-0 Nylon Nut(2T)M8 P1.25Nylon Nut(2T)M8 P1.25
-
363B7-63730-0 Washer, 8.5-24-1.5Washer, 8.5-24-1.5
-
373GF-62449-0 Disk, co-pilotDisk, co-pilot
-
383KY-62441-0 Friction leverFriction lever
-
393AC-63012-0 GripGrip
-
40346-66334-0 StopperStopper
-
413R3-62443-0 Washer, 8.1-20-0.8Washer, 8.1-20-0.8
-
423GF-62445-0 New partNew part
-
433GF-63205-0 Screw setScrew set
-
443GF-63193-0 Grip parts kitGrip parts kit
-
453GF-63062-0 Throttle shaft kitThrottle shaft kit
-
463GF-63067-0 Throttle link assy
945303-0400 E-Ring x1Throttle link assy
945303-0400 E-Ring x1 -
473GF-63032-0 Throttle friction assyThrottle friction assy
-
483GF-66160-0 Shift unit assy
945303-0400 E-Ring x1Shift unit assy
945303-0400 E-Ring x1 -
493GF-66158-0 Shift lever kitShift lever kit
-
503GF-66198-0 Cable bracket kitCable bracket kit
-
513GF-76175-0 Buzzer kitBuzzer kit
-
13KYQ63000-0 Tiller handle kitTiller handle kit
-
23KY-63600-0 スロットルワイヤスロットルワイヤ
-
33KY-66196-0 Shift cableShift cable
-
4398-06830-0 Safety Switch Ass'ySafety Switch Ass'y
-
5353-06821-0 Lock, lanyard stop switchLock, lanyard stop switch
-
63AH-72615-0 PTTスイッチアッシ (B)PTTスイッチアッシ (B)
-
73GF-76020-0 Main SwitchMain Switch
-
83GF-76219-0 メインスイッチキー NO.945メインスイッチキー NO.945
-
93GF-76205-0 Main switch key capMain switch key cap
-
103T5-76022-0 Cap, Main SwitchCap, Main Switch
-
113GF-71040-0 Pilot lamp assyPilot lamp assy
-
123GF-72019-0 Throttle decalThrottle decal
-
133GF-67578-1 Decal shiftDecal shift
-
143GF-72198-0 Warning lamp decalWarning lamp decal
-
153GF-72200-0 Stop switch decalStop switch decal
-
163GF-84339-0 Instruction decalInstruction decal
-
173GF-63320-0 Tiller handle coverTiller handle cover
-
183GF-63624-0 Grommet exhaust housingGrommet exhaust housing
-
193KY-76119-0 Cord assyCord assy
-
203AHQ62000-0 ステアリングブラケットアッシステアリングブラケットアッシ
-
213GF-65012-0 ダウェルピン 8-16ダウェルピン 8-16
-
229153E3-1040 スタッドスタッド
-
23930403-1000 Nylon NutNylon Nut
-
249401E3-1000 WasherWasher
-
253GF-63201-0 New partNew part
-
263GF-63305-0 Conical spring washerConical spring washer
-
273GF-63025-0 SpacerSpacer
-
283GF-63102-0 BushingBushing
-
299401E3-1000 WasherWasher
-
303GF-63310-0 Lock nutLock nut
-
313GF-62004-0 Cord holderCord holder
-
323T5-06437-0 Tapping Screw, 6-16Tapping Screw, 6-16
-
333KY-62447-0 Plate, co-pilotPlate, co-pilot
-
343V1-60108-0 Bolt,6-16 Pre CoatedBolt,6-16 Pre Coated
-
353V5-62442-0 Nylon Nut(2T)M8 P1.25Nylon Nut(2T)M8 P1.25
-
363B7-63730-0 Washer, 8.5-24-1.5Washer, 8.5-24-1.5
-
373GF-62449-0 Disk, co-pilotDisk, co-pilot
-
383KY-62441-0 Friction leverFriction lever
-
393AC-63012-0 GripGrip
-
40346-66334-0 StopperStopper
-
413R3-62443-0 Washer, 8.1-20-0.8Washer, 8.1-20-0.8
-
423GF-62445-0 New partNew part
-
433GF-63205-0 Screw setScrew set
-
443GF-63193-0 Grip parts kitGrip parts kit
-
453GF-63062-0 Throttle shaft kitThrottle shaft kit
-
463GF-63067-0 Throttle link assy
945303-0400 E-Ring x1Throttle link assy
945303-0400 E-Ring x1 -
473GF-63032-0 Throttle friction assyThrottle friction assy
-
483GF-66160-0 Shift unit assy
945303-0400 E-Ring x1Shift unit assy
945303-0400 E-Ring x1 -
493GF-66158-0 Shift lever kitShift lever kit
-
503GF-66198-0 Cable bracket kitCable bracket kit
-
513GF-76175-0 Buzzer kitBuzzer kit
