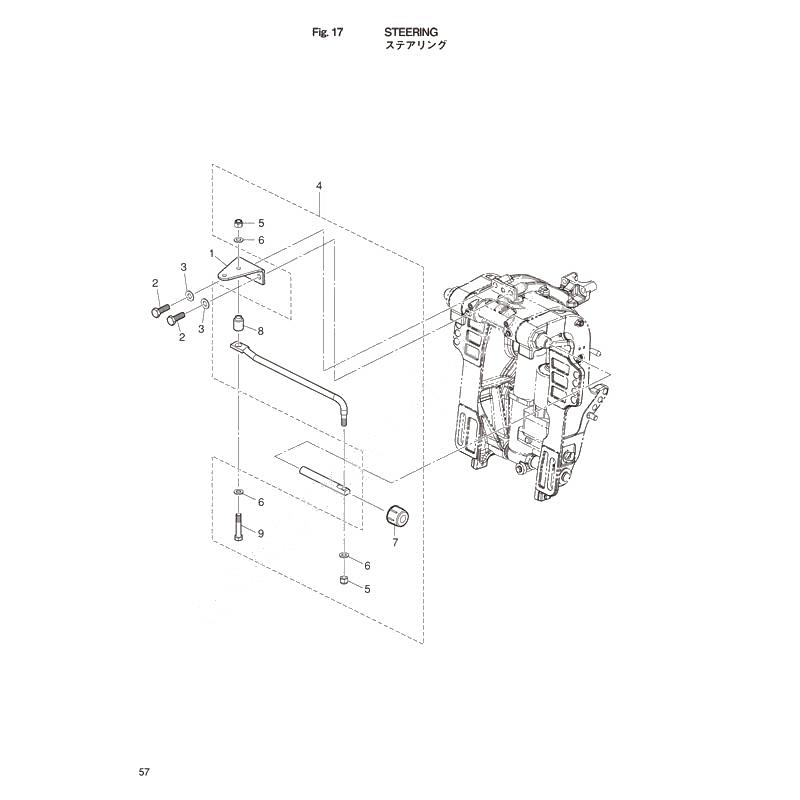

Steering для Tohatsu MFS50A - 2015 года выпуска
-
№АртикулНазвание
-
13KY-83830-0 ステアリングフックプレート
EPT Modelステアリングフックプレート
EPT Model -
2910103-1030 Bolt
EPT ModelBolt
EPT Model -
39401E3-1000 Washer
EPT ModelWasher
EPT Model -
43KY-84905-0 Drag link assy
EPT ModelDrag link assy
EPT Model -
5353-84918-0 Nylon Nut 3/8Nylon Nut 3/8
-
6353-84916-0 Washer 9.6-18-2Washer 9.6-18-2
-
73F3-84908-0 Seal Ring Drag LinkSeal Ring Drag Link
-
83B7-84914-0 Spacer Drag LinkSpacer Drag Link
-
9353-84917-0 BoltBolt
-
13KY-83830-0 ステアリングフックプレート
EPT Modelステアリングフックプレート
EPT Model -
2910103-1030 Bolt
EPT ModelBolt
EPT Model -
39401E3-1000 Washer
EPT ModelWasher
EPT Model -
43KY-84905-0 Drag link assy
EPT ModelDrag link assy
EPT Model -
5353-84918-0 Nylon Nut 3/8Nylon Nut 3/8
-
6353-84916-0 Washer 9.6-18-2Washer 9.6-18-2
-
73F3-84908-0 Seal Ring Drag LinkSeal Ring Drag Link
-
83B7-84914-0 Spacer Drag LinkSpacer Drag Link
-
9353-84917-0 BoltBolt
