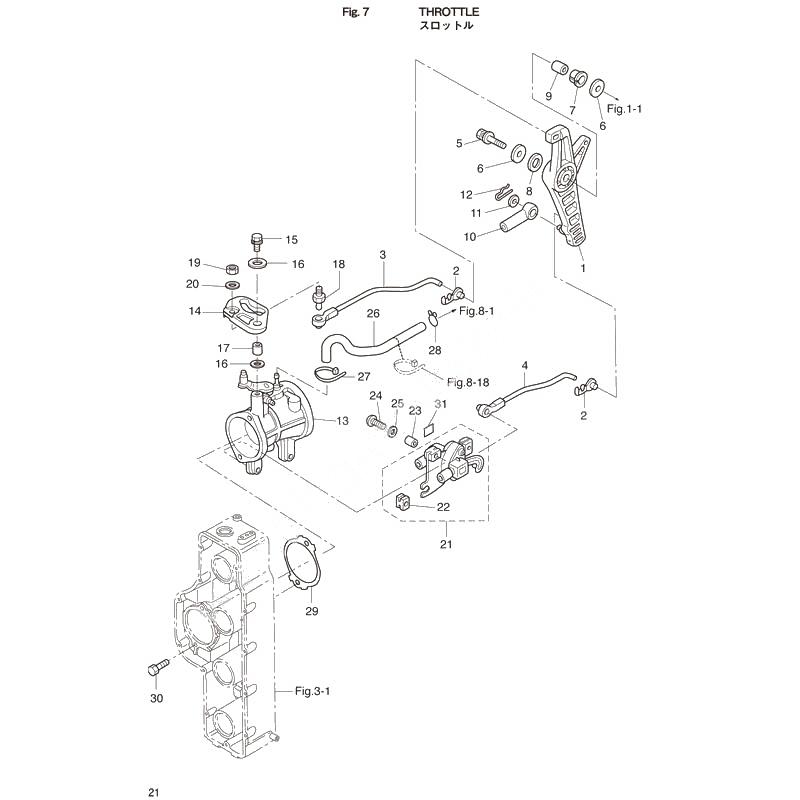

Throttle для Tohatsu MD115A2 - 2016 года выпуска
-
№АртикулНазвание
-
13B7B63711-3 Advancer ArmAdvancer Arm
-
23B7-63733-0 Rod Snap, 5-3Rod Snap, 5-3
-
33T9-63702-3 Throttle link rodThrottle link rod
-
3T9-63702-2 Throttle link rodThrottle link rod
-
43T9-10109-1 Tps linkTps link
-
3T9-10109-0 Tps linkTps link
-
5910103-6835 BoltBolt
-
63B7-63730-0 Washer, 8.5-24-1.5Washer, 8.5-24-1.5
-
73B7-63713-0 Bushing, 12-14-15.5Bushing, 12-14-15.5
-
83B7-63731-0 Washer, 12.5-24-1Washer, 12.5-24-1
-
93B7-63732-1 カラー 8.4-12-17カラー 8.4-12-17
-
3B7-63732-0 カラー 8.4-12-17カラー 8.4-12-17
-
103B7-83715-2 Cable JointCable Joint
-
113AA-83719-0 ワッシャ 8.5-18-1.6ワッシャ 8.5-18-1.6
-
12951603-0800 R-PinR-Pin
-
133HK-10100-0 Throttle body assyThrottle body assy
-
143T1-63718-1 Throttle CamThrottle Cam
-
3T1-63718-0 Throttle CamThrottle Cam
-
15910103-6625 BoltBolt
-
16346-67115-0 Washer 6.5-21-1Washer 6.5-21-1
-
173H6-63619-1 Collar, BracketCollar, Bracket
-
18346-05228-1 Ball JointBall Joint
-
19930203-0600 NutNut
-
20940103-0600 WasherWasher
-
213T5-10110-0 TPS Ass'y
スロットルポジションセンサーTPS Ass'y
スロットルポジションセンサー -
223T5-10107-0 Mount RubberMount Rubber
-
233T5-10128-0 Collar, 4.2-6-10.5Collar, 4.2-6-10.5
-
24921503-6420 ScrewScrew
-
253T5-10129-0 Washer, 4.2-12.5-0.8Washer, 4.2-12.5-0.8
-
2698AB-301000 ゴムホース 内径3mm,長さ1m
バルク部品(標準のホース長は420mm)ゴムホース 内径3mm,長さ1m
バルク部品(標準のホース長は420mm) -
273T5-84398-0 Band Lead Wire 104Band Lead Wire 104
-
28338-01133-0 ClipClip
-
293T1-10104-0 Gasket throttle bodyGasket throttle body
-
303T1-60108-0 ボルト 8-25プレコートボルト 8-25プレコート
-
313T5-72195-0 Lavel, TPSLavel, TPS
