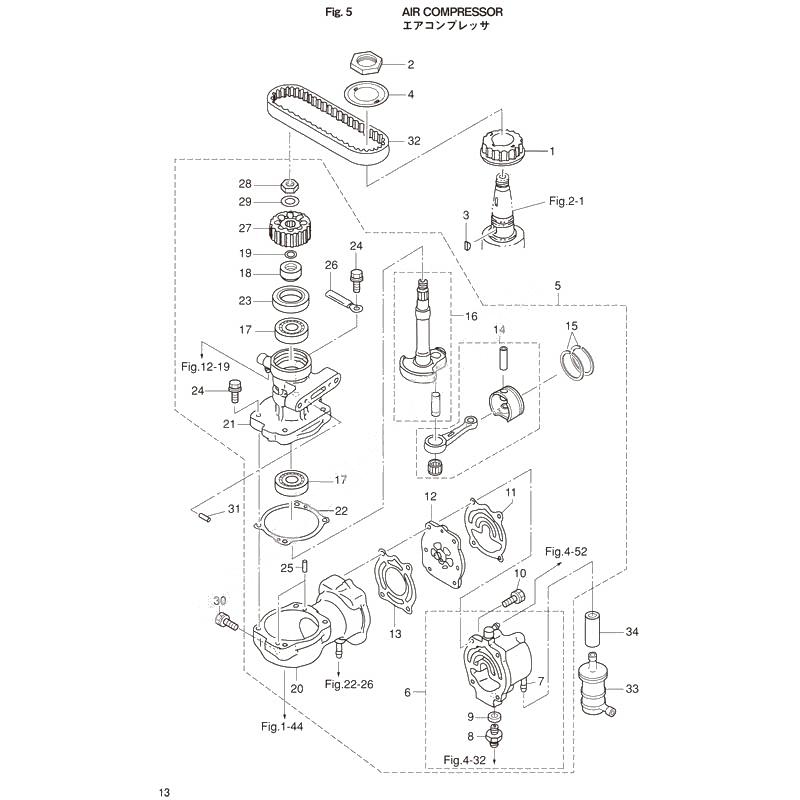

Air compressor для Tohatsu MD50B2 - 2016 года выпуска
-
№АртикулНазвание
-
13T5-10060-0 Drive PulleyDrive Pulley
-
23T5-10068-2 Nut pulleyNut pulley
-
33T5-10131-0 Key, Drive PulleyKey, Drive Pulley
-
43T5-10063-0 Belt GuideBelt Guide
-
53GFB10000-0 Air compressor assyAir compressor assy
-
63GFB10009-0 コンプレッサヘッド アッシコンプレッサヘッド アッシ
-
73T1-02093-1 NippleNipple
-
83T5-04308-0 Adapter, Hose JointAdapter, Hose Joint
-
93T5-04309-0 Metal Washer, 10.2-17-2Metal Washer, 10.2-17-2
-
10910124-7630 BoltBolt
-
113T5-10012-1 Gasket, Compressor Head
コンプレッサヘッドGasket, Compressor Head
コンプレッサヘッド -
123T5-10010-0 Valve Ass'yValve Ass'y
-
133T5-10019-0 Gasket, Valve Seat
バルブシートGasket, Valve Seat
バルブシート -
143GF-87330-0 Piston rings & conn rod air compressorPiston rings & conn rod air compressor
-
153T5-10025-0 Piston Ring,Air ComprassorPiston Ring,Air Comprassor
-
163GF-87331-0 Crankshaft assy air compressorCrankshaft assy air compressor
-
179601-0-6203 Ball BearingBall Bearing
-
183T1-10042-0 カラー 13.5-25-13カラー 13.5-25-13
-
193T5-10046-0 O-Ring, 1.9-13O-Ring, 1.9-13
-
203GFB10048-0 コンプレッサシリンダコンプレッサシリンダ
-
213T5B10051-0 Housing,CompressorHousing,Compressor
-
223T5-10054-0 Gasket, Compressor Housing
コンプレッサハウジングGasket, Compressor Housing
コンプレッサハウジング -
233T5-10041-0 Oil Seal,25-45-8Oil Seal,25-45-8
-
24910103-5625 BoltBolt
-
25334-65012-0 Dowel Pin 4-10Dowel Pin 4-10
-
26309-06972-0 Clamp,6.5-47.5PClamp,6.5-47.5P
-
273T5-10062-0 Driven PulleyDriven Pulley
-
28309-00132-0 Nut, MagnetoNut, Magneto
-
293B7-01116-0 Washer, 10.5-20-3.2Washer, 10.5-20-3.2
-
30910103-7835 BoltBolt
-
31334-65012-0 Dowel Pin 4-10Dowel Pin 4-10
-
323T5-10061-0 Drive BeltDrive Belt
-
333GF-10130-0 エアフィルタエアフィルタ
-
3498AT130-060 Rubber hose
エアコンプレッサ-エアフィルタRubber hose
エアコンプレッサ-エアフィルタ
