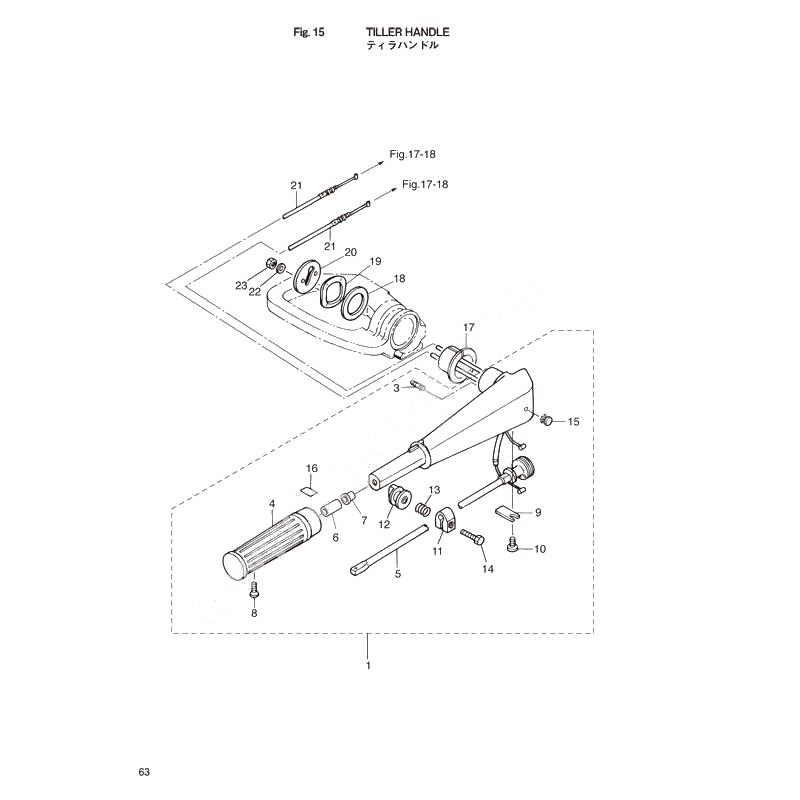

Tiller handle для Tohatsu MFS25C - 2016 года выпуска
-
№АртикулНазвание
-
13ACQ63005-1 ティラーハンドルサブアッシティラーハンドルサブアッシ
-
33B2-63104-1 StudStud
-
43R3-63012-0 グリップグリップ
-
53R3-63041-0 Throttle ShaftThrottle Shaft
-
6345-63048-0 Rubber Throttle Shaft ARubber Throttle Shaft A
-
7350-63046-0 Bushing 8.2-10-11Bushing 8.2-10-11
-
8921803-0525 ScrewScrew
-
93B2-63063-0 Supporter Throttle ShaftSupporter Throttle Shaft
-
109215E3-0612 ScrewScrew
-
921503-0612 ScrewScrew
-
113V1-63035-1 Friction PiceceFriction Picece
-
123V1-63077-0 Adjusting NutAdjusting Nut
-
133V1-63036-0 SpringSpring
-
149101E3-0625 New partNew part
-
910103-0625 New partNew part
-
15350-67154-0 プラスチック リベット 6.5プラスチック リベット 6.5
-
163AC-72019-0 スロットルデカルスロットルデカル
-
173R3-63102-0 Bushing, HandleBushing, Handle
-
183R3-63108-0 Washer, 39-52-1Washer, 39-52-1
-
193R3-63109-0 Wave Washer, 39.5-52-1.2Wave Washer, 39.5-52-1.2
-
203R3-63107-0 Plate, Steering HandlePlate, Steering Handle
-
213NW-63600-0 スロットルワイヤスロットルワイヤ
-
22940103-0600 WasherWasher
-
23930103-0600 NutNut
