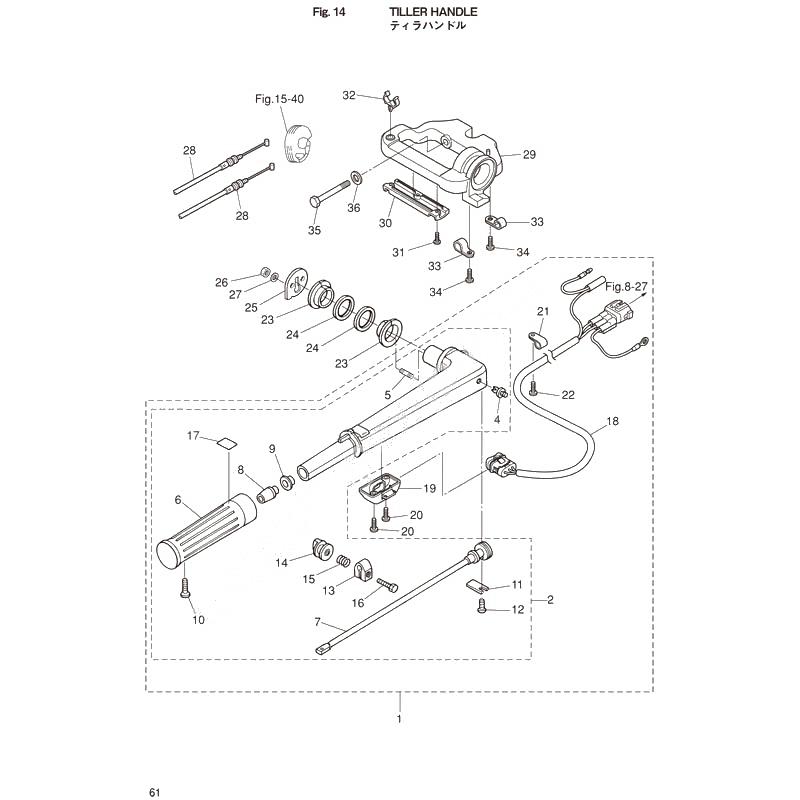

Tiller handle для Tohatsu MFS9.9D - 2016 года выпуска
-
№АртикулНазвание
-
23SBQ63003-0 Tiller handle assy
MF/EFモデルTiller handle assy
MF/EFモデル -
4350-67154-0 プラスチック リベット 6.5プラスチック リベット 6.5
-
53B2-63104-1 StudStud
-
63R3-63012-0 グリップグリップ
-
73V1-63041-0 Throttle ShaftThrottle Shaft
-
83H6-63048-0 Rubber, Shrottle ShaftRubber, Shrottle Shaft
-
93H6-63510-0 Bushing, 14-15.8-7Bushing, 14-15.8-7
-
10920803-0518 ScrewScrew
-
113B2-63063-0 Supporter Throttle ShaftSupporter Throttle Shaft
-
129215E3-0612 ScrewScrew
-
921503-0612 ScrewScrew
-
133V1-63035-1 Friction PiceceFriction Picece
-
143V1-63077-0 Adjusting NutAdjusting Nut
-
153V1-63036-0 SpringSpring
-
16910103-0625 BoltBolt
-
173V9-72019-0 Label,ThrottleLabel,Throttle
-
233V1-63102-0 BushingBushing
-
243V1-63108-1 WasherWasher
-
253SA-63107-0 CoverCover
-
26930103-0600 NutNut
-
27940103-0600 WasherWasher
-
283V1-63600-0 Throttle WireThrottle Wire
-
293V1Q62001-1 Steering bracketSteering bracket
-
303V1-62004-0 コードホルダーコードホルダー
-
31921503-0408 ScrewScrew
-
323V2-62004-0 コ-ドホルダ
EFモデルコ-ドホルダ
EFモデル -
353R3-62094-2 New partNew part
-
369401E3-1000 WasherWasher
