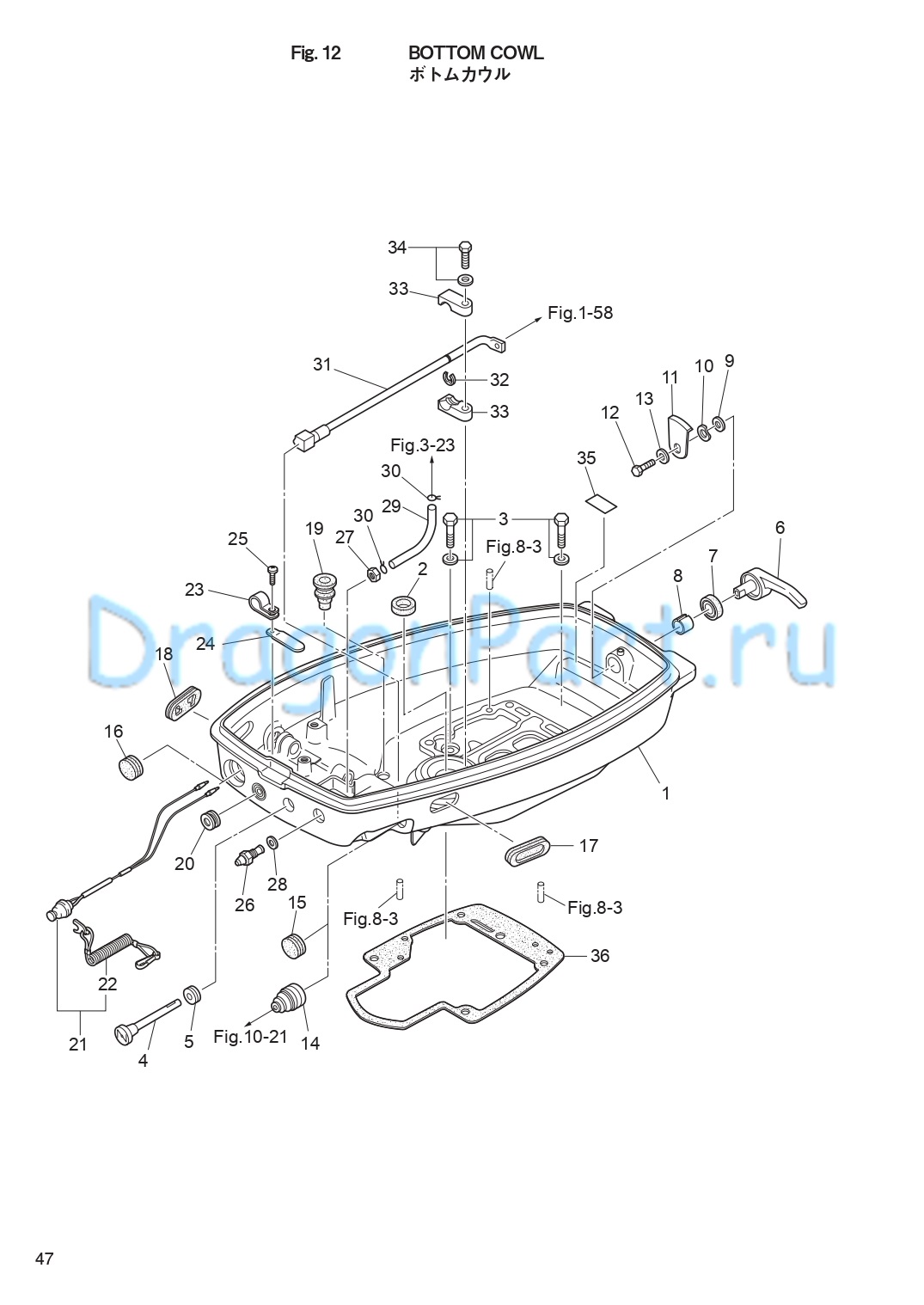

BOTTOM COWL для Tohatsu M15D2 - 2017 года выпуска
-
№АртикулНазвание
-
13M3Q67100-0 BOTTOM COWLBOTTOM COWL
-
2350-01215-1 OIL SEAL 12.8-25-7OIL SEAL 12.8-25-7
-
39101E3-5620 BOLTBOLT
-
43G2-67151-1 CHOKE RODCHOKE ROD
-
5350-67104-0 CHOKE ROD BUSHINGCHOKE ROD BUSHING
-
6338Q67141-0 HOOK LEVERHOOK LEVER
-
7338-67147-0 SEAL RING 13.8-22-3.7SEAL RING 13.8-22-3.7
-
8350-67105-0 HOOK LEVER BUSHING 14-16.5-17.7HOOK LEVER BUSHING 14-16.5-17.7
-
93C8-67146-0 WASHER 14-22-1WASHER 14-22-1
-
10941403-1400 WAVE WASHER d=14WAVE WASHER d=14
-
11345-67142-1 COVER HOOKCOVER HOOK
-
12910103-0612 BOLTBOLT
-
133C8-66308-0 WASHER 6-16-1.5WASHER 6-16-1.5
-
14345-66226-0 GROMMET 17-3
Throttle Shaft for MF/EF TypeGROMMET 17-3
Throttle Shaft for MF/EF Type -
17346-67165-0 GROMMET 68-20-2.8
Remote ControlGROMMET 68-20-2.8
Remote Control -
18353-67162-0 GROMMET 41-14-3
Battery CableGROMMET 41-14-3
Battery Cable -
193M2-66226-0 GROMMET 17-3
Shift RodGROMMET 17-3
Shift Rod -
21398-06830-0 STOP SWITCH ASSY
for MF/EF TypeSTOP SWITCH ASSY
for MF/EF Type -
22353-06821-0 * STOP SWITCH LANYARD ASSY* STOP SWITCH LANYARD ASSY
-
23336-06973-0 CLAMP 6-9.5L
for MF TypeCLAMP 6-9.5L
for MF Type -
25921503-5612 SCREWSCREW
-
263B2-70260-1 FUEL CONNECTOR (MALE)FUEL CONNECTOR (MALE)
-
27332-70261-0 NUT 10-P1.25NUT 10-P1.25
-
28336-70112-0 GASKET 10.2-16-0.5GASKET 10.2-16-0.5
-
2998AB-50-185 HOSE
Fuel Connector-Fuel Filter 98AB-501000HOSE
Fuel Connector-Fuel Filter 98AB-501000 -
30338-02215-0 CLIP Ø10CLIP Ø10
-
31350-63061-1 THROTTLE SHAFT
for MF/EF TypeTHROTTLE SHAFT
for MF/EF Type -
32945303-0600 E-RING d=6
for MF/EF TypeE-RING d=6
for MF/EF Type -
33350-63063-0 THROTTLE SHAFT SUPPORT
for MF/EF TypeTHROTTLE SHAFT SUPPORT
for MF/EF Type -
34910103-7630 BOLT
for MF/EF TypeBOLT
for MF/EF Type -
35361-72026-0 SPARK PLUG DECAL (BR7HS10)SPARK PLUG DECAL (BR7HS10)
-
36350-61012-2 DRIVE SHAFT HOUSING GASKETDRIVE SHAFT HOUSING GASKET
Все узлы модели:
- CYLINDER CRANK CASE
- PISTON CRANK SHAFT
- INTAKE MAINFOLD
- CARBURETOR
- RECOIL STARTER
- MAGNETO ELECTRIC PARTS
- DRIVE SHAFT HOUSING
- GEAR CASE
- BRACKET
- TILLER HANDLE
- • BOTTOM COWL
- SHIFT
- REMOTE CONTROL PARTS
- TOP COWL
- FUEL TANK
- COMPONENT PARTS OF REMOTE CONTROL
- COMPONENT PARTS OF REMOTE CONTROL (ELECTRIC PARTS)
- OPTIONAL PARTS ACCESSORIES
- ASSEMBLY KIT PARTS
