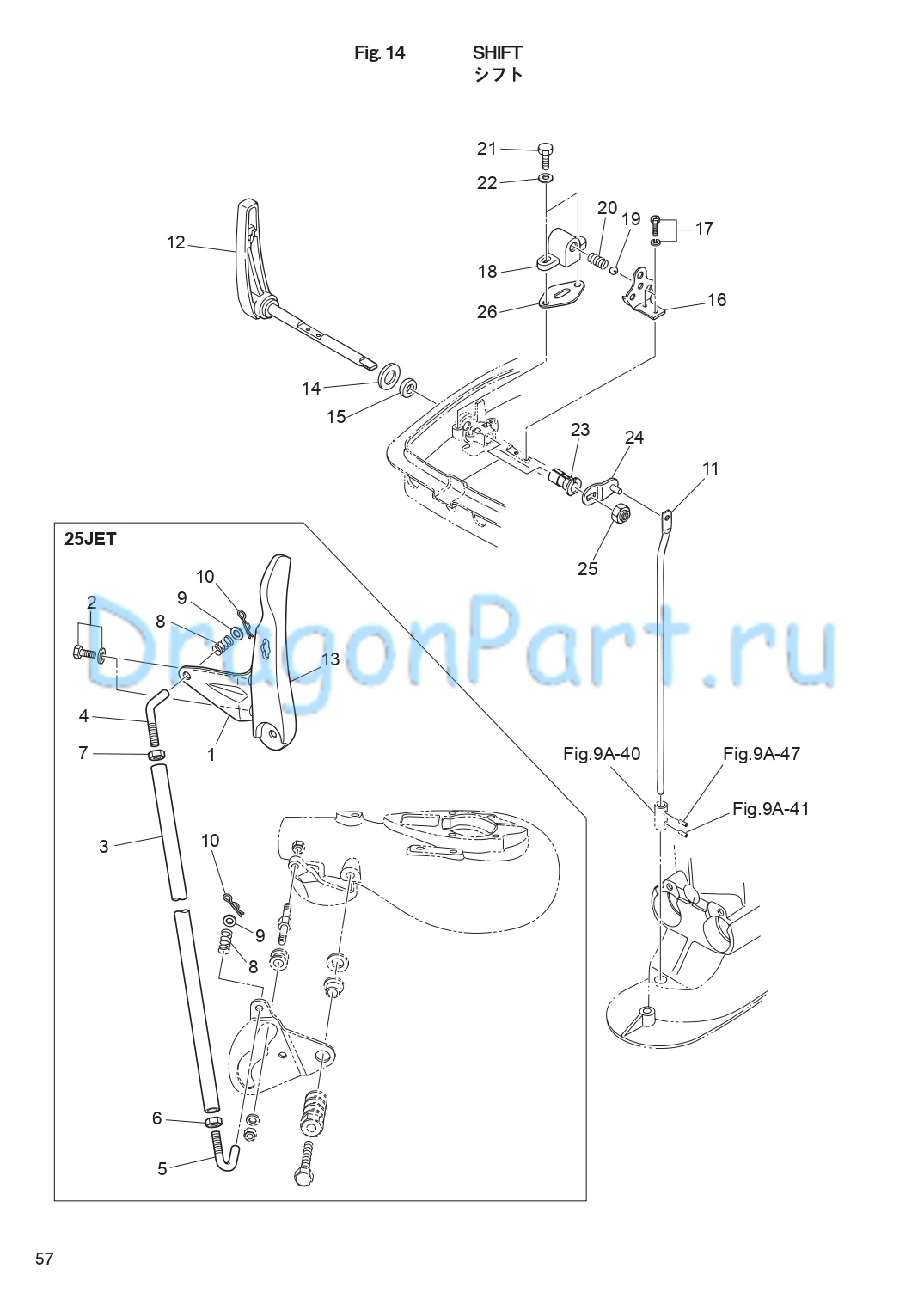

SHIFT для Tohatsu M25HJET - 2017 года выпуска
-
№АртикулНазвание
-
13FG-64293-0 PLATEPLATE
-
29101E3-5616 BOLTBOLT
-
33EF-66211-0 SHIFT RODSHIFT ROD
-
43EF-76076-0 LINK RODLINK ROD
-
53EG-76076-0 LINK RODLINK ROD
-
63EF-61114-0 NUTNUT
-
7930103-0600 NUTNUT
-
83EF-66336-0 SPRINGSPRING
-
9940103-0600 WASHERWASHER
-
103EF-65307-0 SNAP PINSNAP PIN
-
133FGQ66110-2 SHIFT LEVERSHIFT LEVER
-
14346-66138-0 SPACER 18.2-26-3SPACER 18.2-26-3
-
15345-66137-0 OIL SEAL 10-20-4OIL SEAL 10-20-4
-
16346-66121-0 SHIFT LEVER STOPPERSHIFT LEVER STOPPER
-
17910903-6512 BOLTBOLT
-
18345-66115-0 SHIFT LEVER STOP HOLDERSHIFT LEVER STOP HOLDER
-
19965002-1605 BALL 5/16BALL 5/16
-
20332-66112-0 SPRINGSPRING
-
219101F4-0616 BOLT
for EP/EF TypeBOLT
for EP/EF Type -
22940103-0600 WASHERWASHER
-
23346-67101-0 BUSHING 10-12.8-28.5BUSHING 10-12.8-28.5
-
26345-66119-0 SHIM t=0.2SHIM t=0.2
Все узлы модели:
- CYLINDER CRANK CASE
- PISTON CRANK SHAFT
- INTAKE MAINFOLD FUEL PUMP
- CARBURETOR
- RECOIL STARTER
- MAGNETO
- DRIVE SHAFT HOUSING
- GEAR CASE (DRIVE SHAFT)
- JET DRIVE
- BRACKET
- TILLER HANDLE
- BOTTOM COWL
- • SHIFT
- REMOTE CONTROL PARTS
- TOP COWL
- FUEL TANK
- COMPONENT PARTS OF REMOTE CONTROL
- COMPONENT PARTS OF REMOTE CONTROL (ELECTRIC PARTS)
- OPTIONAL PARTS (1)
- OPTIONAL PARTS (2)
- ASSEMBLY KIT PARTS
