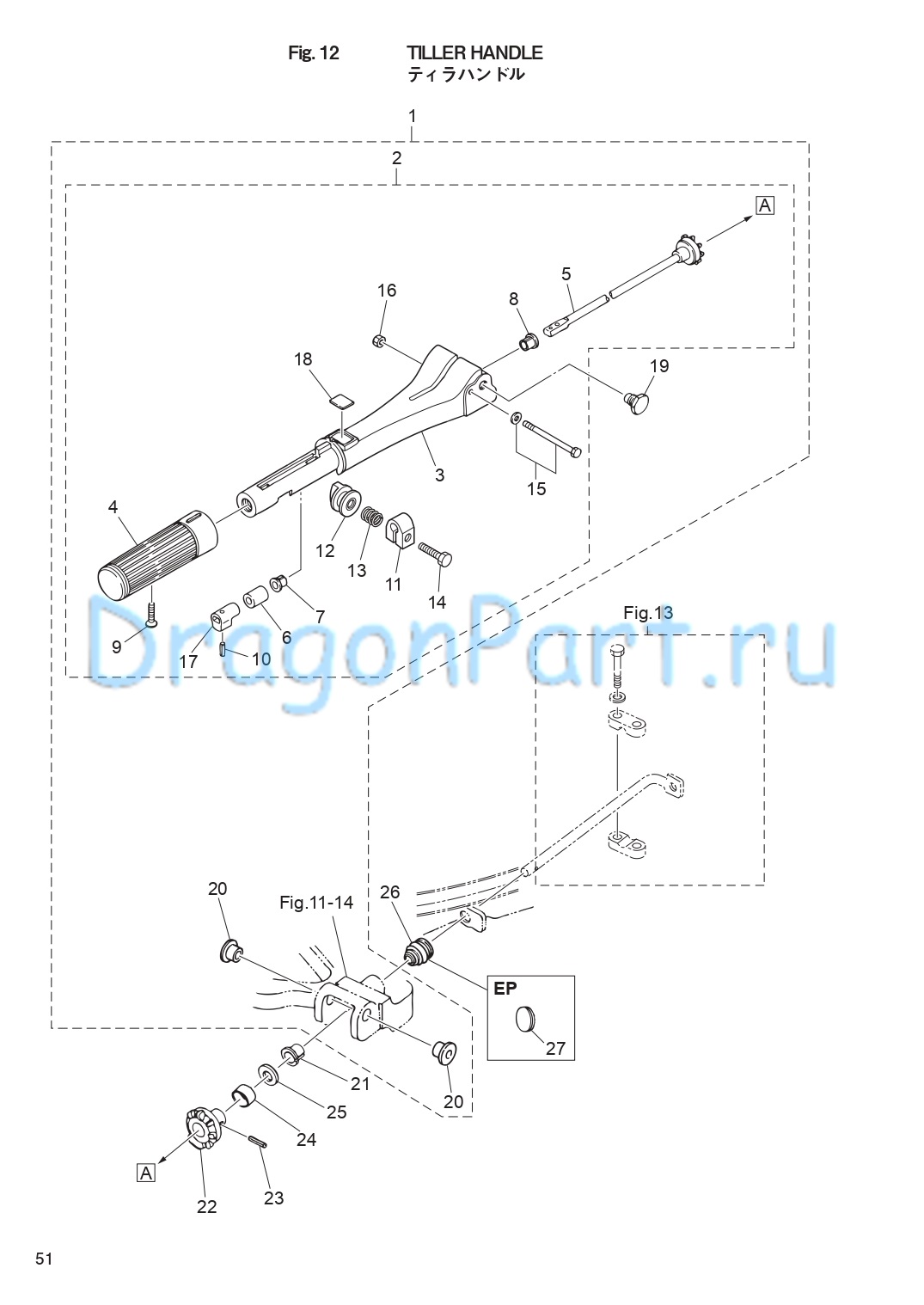

TILLER HANDLE для Tohatsu M30H - 2017 года выпуска
-
№АртикулНазвание
-
1398Q63003-3 TILLER HANDLE ASSY
for MF/EF TypeTILLER HANDLE ASSY
for MF/EF Type -
23M3Q63005-2 * TILLER HANDLE SUB-ASSY* TILLER HANDLE SUB-ASSY
-
33NTQ63011-0 ** TILLER HANDLE** TILLER HANDLE
-
4398-63012-0 ** GRIP** GRIP
-
5398-63041-0 ** THROTTLE SHAFT** THROTTLE SHAFT
-
6345-63048-0 ** THROTTLE SHAFT DAMPER** THROTTLE SHAFT DAMPER
-
7350-63046-0 ** BUSHING 8.4-10-11** BUSHING 8.4-10-11
-
83NT-63046-0 ** BUSHING** BUSHING
-
9921803-0525 ** SCREW** SCREW
-
10951403-0310 ** SPRING PIN 3-10** SPRING PIN 3-10
-
113V1-63035-1 ** FRICTION PIECE** FRICTION PIECE
-
123V1-63077-0 ** ADJUSTING NUT** ADJUSTING NUT
-
133V1-63036-0 ** SPRING** SPRING
-
14910103-0625 ** BOLT** BOLT
-
159101E3-5675 ** BOLT** BOLT
-
16930403-0600 ** NYLON NUT 6-P1.0** NYLON NUT 6-P1.0
-
17398-63053-0 ** SPACER** SPACER
-
18369-72019-1 ** THROTTLE DECAL** THROTTLE DECAL
-
19346-63201-3 * BOLT 9.7-11-12-8.5* BOLT 9.7-11-12-8.5
-
203NT-63207-0 * COLLAR* COLLAR
-
21350-63046-0 BUSHING 8.4-10-11BUSHING 8.4-10-11
-
22346-63064-0 UNIVERSAL PINIONUNIVERSAL PINION
-
23951403-0414 SPRING PIN 4-14SPRING PIN 4-14
-
24346-63066-1 COLLAR 15.9-17-9COLLAR 15.9-17-9
-
25940103-0800 WASHERWASHER
-
26345-66226-0 GROMMET 17-3GROMMET 17-3
-
27345-67117-0 GROMMET 17-2.7
for EP TypeGROMMET 17-2.7
for EP Type
Все узлы модели:
- CYLINDER CRANK CASE
- PISTON CRANK SHAFT
- INTAKE MAINFOLD FUEL PUMP
- CARBURETOR
- RECOIL STARTER
- MAGNETO
- ELECTRIC PARTS
- ELECTRIC PARTS (F TYPE)
- DRIVE SHAFT HOUSING
- GEAR CASE (DRIVE SHAFT)
- GEAR CASE (PROPELLER SHAFT)
- BRACKET
- • TILLER HANDLE
- BOTTOM COWL
- SHIFT
- REMOTE CONTROL PARTS
- TOP COWL
- FUEL TANK
- COMPONENT PARTS OF REMOTE CONTROL
- COMPONENT PARTS OF REMOTE CONTROL (ELECTRIC PARTS)
- OPTIONAL PARTS (1)
- OPTIONAL PARTS (2)
- ASSEMBLY KIT PARTS
