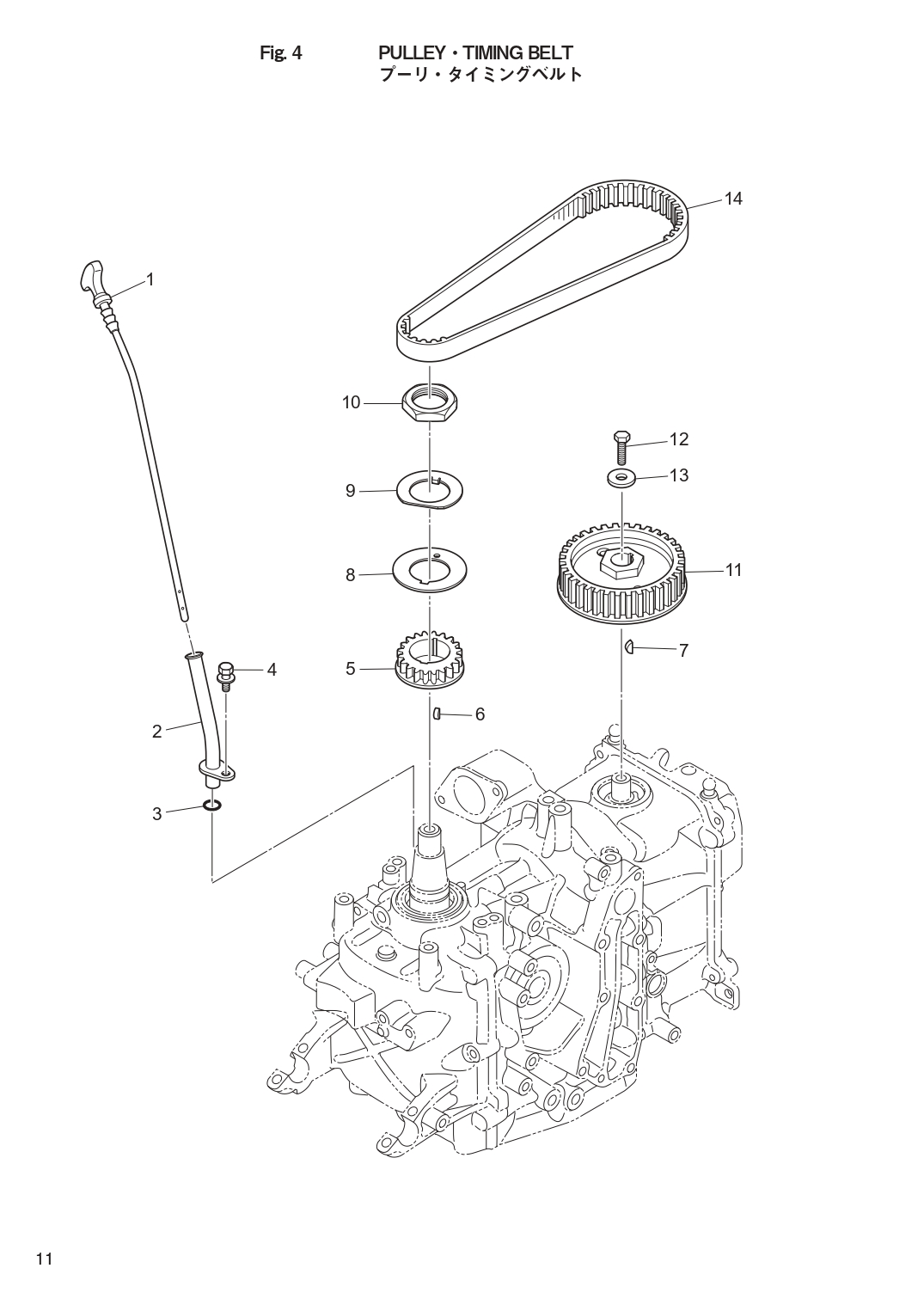

PULLEY TIMING BELT для Tohatsu MFS20E - 2017 года выпуска
-
№АртикулНазвание
-
13RS-07721-0 OIL LEVEL GAUGEOIL LEVEL GAUGE
-
23RS-07720-0 OIL LEVEL GAUGE GUIDEOIL LEVEL GAUGE GUIDE
-
33T5-10162-0 O-RING 1.9-9.8O-RING 1.9-9.8
-
4910103-5612 BOLTBOLT
-
53BJ-10060-0 DRIVE PULLEYDRIVE PULLEY
-
6309-00131-0 KEY 10-3.7-3KEY 10-3.7-3
-
7309-00131-0 KEY 10-3.7-3KEY 10-3.7-3
-
83BJ-10063-0 BELT GUIDEBELT GUIDE
-
93BJ-10069-0 LOCK WASHERLOCK WASHER
-
103T5-10068-2 NUTNUT
-
113H8-10062-2 DRIVEN PULLEYDRIVEN PULLEY
-
123AA-60108-0 PRE-COATED BOLT 6-20PRE-COATED BOLT 6-20
-
133H8-10066-0 WASHER 6.5-19-3.2WASHER 6.5-19-3.2
-
143RS-10045-0 TIMING BELTTIMING BELT
