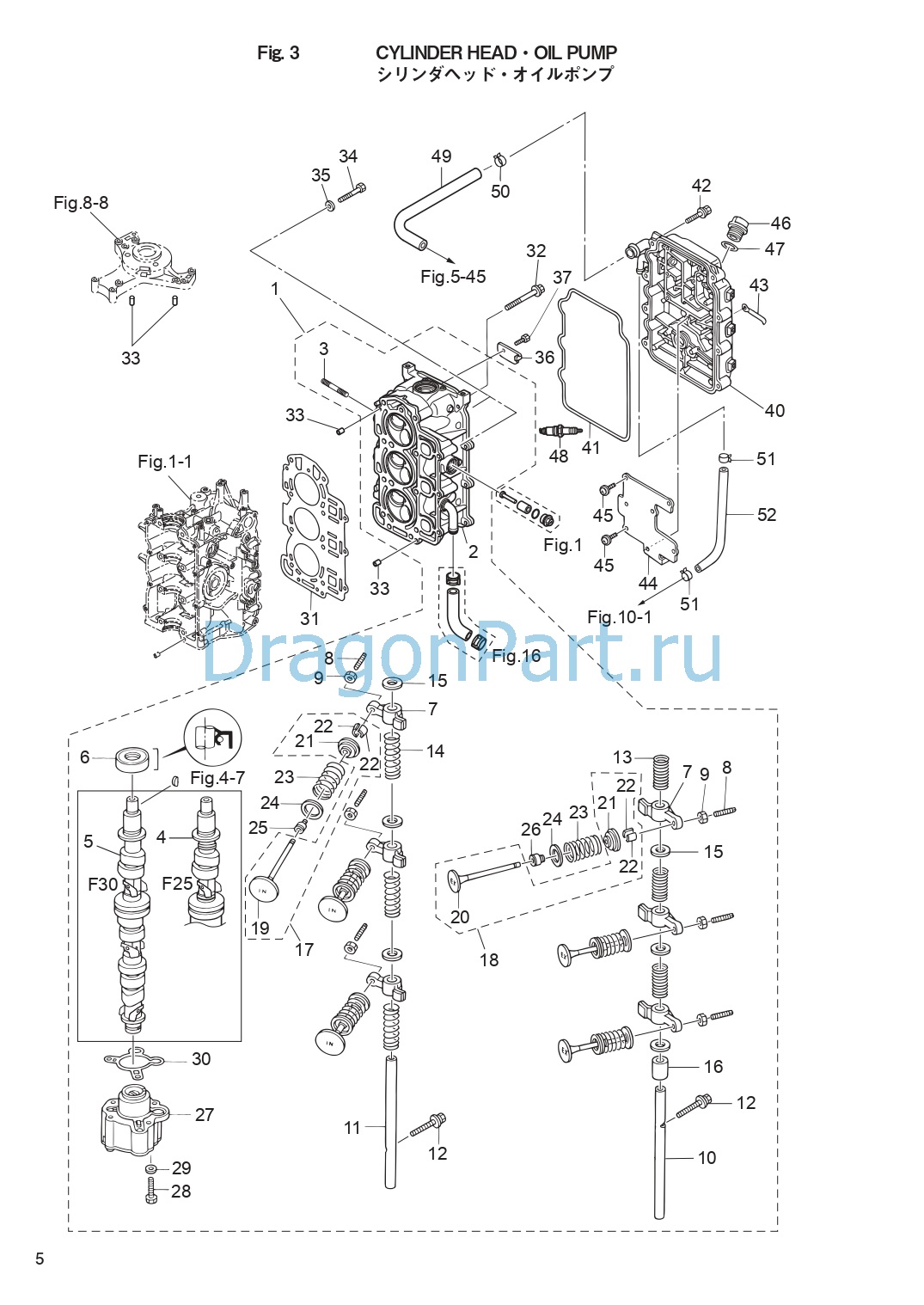

CYLINDER HEAD OIL PUMP для Tohatsu MFS25C - 2017 года выпуска
-
№АртикулНазвание
-
13NWB01000-0 CYLINDER HEAD COMPLETE 25
25psCYLINDER HEAD COMPLETE 25
25ps -
23NVB01001-0 * CYLINDER HEAD ASSY* CYLINDER HEAD ASSY
-
39153F4-0635 * STUD* STUD
-
43AD-07010-1 * CAMSHAFT ASSY* CAMSHAFT ASSY
-
63H8-07025-0 * OIL SEAL 18-35-8* OIL SEAL 18-35-8
-
73AE-07935-1 * ROCKER ARM* ROCKER ARM
-
83R0-07238-0 * ADJUSTING SCREW* ADJUSTING SCREW
-
93H8-07237-0 * ADJUSTING NUT* ADJUSTING NUT
-
103AE-07220-0 * ROCKER ARM SHAFT
Exhaust Side* ROCKER ARM SHAFT
Exhaust Side -
113AE-07226-0 * ROCKER ARM SHAFT
Intake Side* ROCKER ARM SHAFT
Intake Side -
12910124-5635 * BOLT* BOLT
-
133H8-07225-0 * ROCKER SHAFT SPRING L=30
Exhaust Side* ROCKER SHAFT SPRING L=30
Exhaust Side -
143H8-07229-0 * ROCKER SHAFT SPRING L=50
Intake Side* ROCKER SHAFT SPRING L=50
Intake Side -
153R3-07227-0 * WASHER 13.2-21.8-2* WASHER 13.2-21.8-2
-
163H8-07239-0 * COLLAR 13.1-15.9-22.5
Exhaust Side* COLLAR 13.1-15.9-22.5
Exhaust Side -
173AE-07895-0 * INTAKE VALVE KIT
Intake Side* INTAKE VALVE KIT
Intake Side -
183AE-07896-0 * EXHAUST VALVE KIT
Exhaust Side* EXHAUST VALVE KIT
Exhaust Side -
193AE-07901-0 ** INTAKE VALVE
Intake Side** INTAKE VALVE
Intake Side -
203AE-07902-0 ** EXHAUST VALVE
Exhaust Side** EXHAUST VALVE
Exhaust Side -
213AE-07921-0 ** RETAINER** RETAINER
-
223AE-07923-0 ** COTTER** COTTER
-
233AE-07203-0 * VALVE SPRING L=35* VALVE SPRING L=35
-
243H6-07205-0 * VALVE SPRING SEAT* VALVE SPRING SEAT
-
253R3-07204-0 * INTAKE VALVE STEM SEAL
Black* INTAKE VALVE STEM SEAL
Black -
263R3-07206-0 * EXHAUST VALVE STEM SEAL
Green* EXHAUST VALVE STEM SEAL
Green -
273AE-07600-0 * OIL PUMP ASSY* OIL PUMP ASSY
-
289101F4-0645 * BOLT* BOLT
-
299401E3-0600 * WASHER* WASHER
-
303R0-07639-0 * O-RING φ1.9
Outer* O-RING φ1.9
Outer -
313AD-01005-1 CYLINDER HEAD GASKETCYLINDER HEAD GASKET
-
323H8-01013-0 CYLINDER HEAD BOLT 8-60CYLINDER HEAD BOLT 8-60
-
33345-01111-0 DOWEL PIN 6-12DOWEL PIN 6-12
-
349161F4-0653 BOLTBOLT
-
359401E3-0600 WASHERWASHER
-
363R0-01094-0 PLATEPLATE
-
37910121-0612 BOLTBOLT
-
403ACB01020-0 CYLINDER HEAD COVER ASSYCYLINDER HEAD COVER ASSY
-
413R0-01024-0 CYLINDER HEAD COVER GASKETCYLINDER HEAD COVER GASKET
-
429101F4-5630 BOLTBOLT
-
433T4-06972-1 CLAMP 6.5-87PCLAMP 6.5-87P
-
443R0-07431-0 BREATHER CHAMBER COVERBREATHER CHAMBER COVER
-
45921521-0508 SCREWSCREW
-
463R0-71015-1 OIL FILLER CAPOIL FILLER CAP
-
473R0-07422-0 O-RING 3.1-24.4O-RING 3.1-24.4
-
489701-1-1103 SPARK PLUG(DCPR6E)
NGKSPARK PLUG(DCPR6E)
NGK -
493AC-07435-0 BREATHER HOSEBREATHER HOSE
-
503R0-07737-1 CLIP φ15.5CLIP φ15.5
-
513R0-07737-1 CLIP φ15.5CLIP φ15.5
-
5298AM120-290 HOSEHOSE
