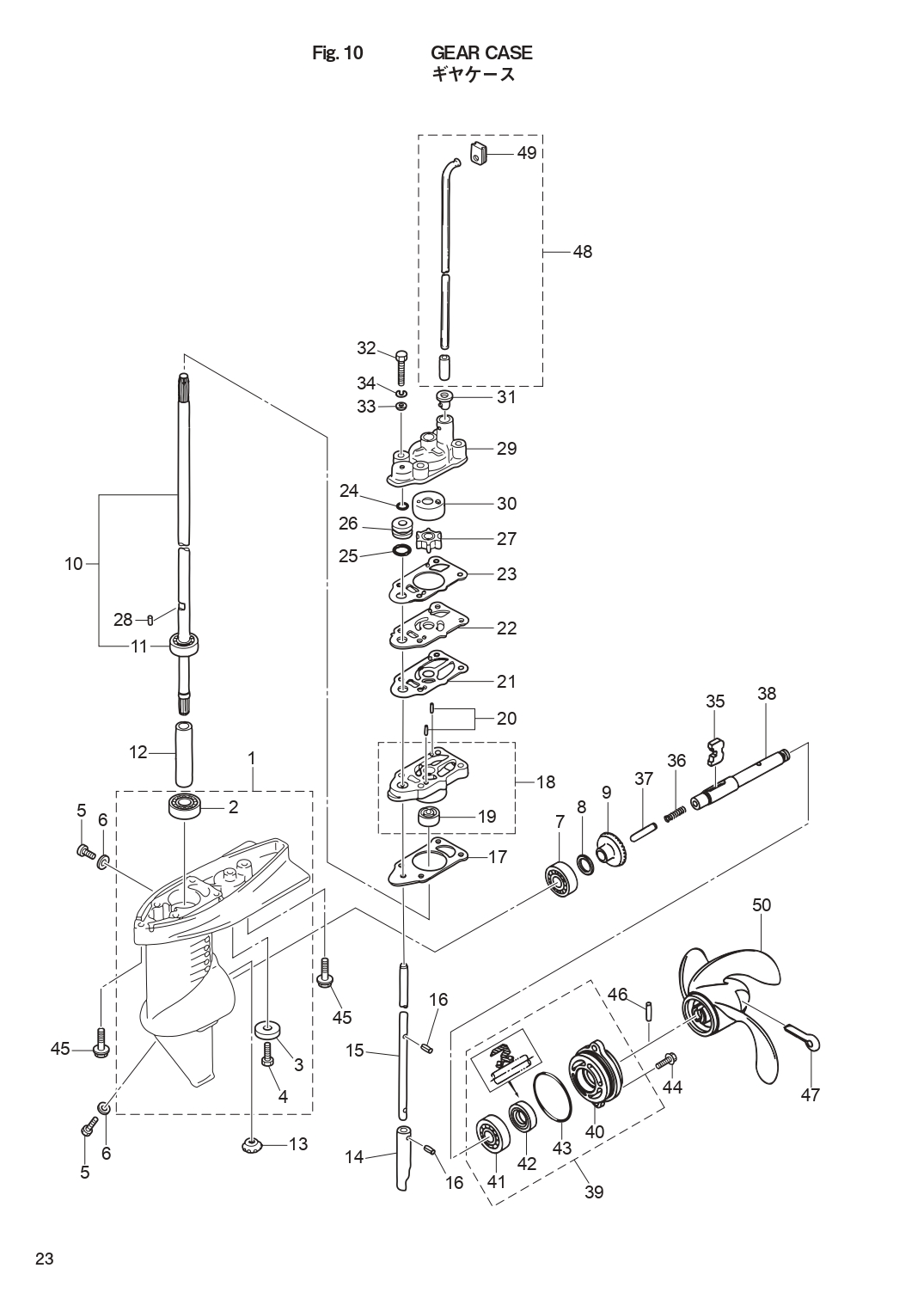

GEAR CASE для Tohatsu MFS3.5B - 2017 года выпуска
-
№АртикулНазвание
-
13BMQ60000-2 GEAR CASE ASSYGEAR CASE ASSY
-
29601-0-6000 * BALL BEARING 6000* BALL BEARING 6000
-
3338-60218-2 * ANODE* ANODE
-
4910103-0616 * BOLT* BOLT
-
5332-60005-2 PLUG 8-8PLUG 8-8
-
6332-60006-0 GASKET 8.1-15-1GASKET 8.1-15-1
-
79601-0-6004 BALL BEARING 6004BALL BEARING 6004
-
8369-64014-0 SHIM 21-28-0.1SHIM 21-28-0.1
-
8369-64015-0 SHIM 21-28-0.15SHIM 21-28-0.15
-
93GR-64010-0 BEVEL GEAR ASSY (A)BEVEL GEAR ASSY (A)
-
103F0-64301-0 DRIVE SHAFT ASSY (S)
for Transom "S"DRIVE SHAFT ASSY (S)
for Transom "S" -
103F0-64302-0 DRIVE SHAFT ASSY (L)
for Transom "L"DRIVE SHAFT ASSY (L)
for Transom "L" -
119601-0-6000 * BALL BEARING 6000* BALL BEARING 6000
-
123F0-64321-0 SPACER 10.1-15-72SPACER 10.1-15-72
-
133GR-64020-0 BEVEL GEAR BBEVEL GEAR B
-
143F0-66011-0 CLUTCH CAMCLUTCH CAM
-
153F0-66012-0 CAM ROD (S)
for Transom "S"CAM ROD (S)
for Transom "S" -
153F0-66013-0 CAM ROD (L)
for Transom "L"CAM ROD (L)
for Transom "L" -
16951407-0308 SPRING PIN 3-8SPRING PIN 3-8
-
173F0-65020-0 PUMP CASE GASKET (LOWER)PUMP CASE GASKET (LOWER)
-
183H2-65040-1 PUMP CASE ASSY (LOWER)PUMP CASE ASSY (LOWER)
-
193F0-60223-0 * OIL SEAL 10-22-8* OIL SEAL 10-22-8
-
203B2-65022-0 KEY φ3-11
Dowel PinKEY φ3-11
Dowel Pin -
213F0-65029-0 GUIDE PLATE GASKETGUIDE PLATE GASKET
-
223AB-65025-0 WATER PUMP GUIDE PLATEWATER PUMP GUIDE PLATE
-
233F0-65018-0 PUMP CASE GASKETPUMP CASE GASKET
-
24369-66021-1 O-RING 2.5-4.9O-RING 2.5-4.9
-
25301-66023-0 O-RING 2.4-9.5O-RING 2.4-9.5
-
263F0-66031-0 CAM ROD BUSHINGCAM ROD BUSHING
-
27369-65021-1 WATER PUMP IMPELLERWATER PUMP IMPELLER
-
28369-65022-0 KEY φ2-11KEY φ2-11
-
293F0-65016-0 PUMP CASE (UPPER)PUMP CASE (UPPER)
-
303F0-65011-0 PUMP CASE LINERPUMP CASE LINER
-
313F0-65032-0 GROMMETGROMMET
-
329161E3-0645 BOLTBOLT
-
33940103-0600 WASHERWASHER
-
34941303-0600 SPRING WASHERSPRING WASHER
-
353F0-64215-0 CLUTCHCLUTCH
-
363F0-64221-0 SPRINGSPRING
-
373F0-64223-0 PUSH RODPUSH ROD
-
383F0-64211-0 PROPELLER SHAFTPROPELLER SHAFT
-
393F0Q87323-1 PROPELLER SHAFT HOUSING ASSYPROPELLER SHAFT HOUSING ASSY
-
403F0Q60101-1 * PROPELLER SHAFT HOUSING* PROPELLER SHAFT HOUSING
-
419601-0-6001 * BALL BEARING 6001* BALL BEARING 6001
-
42309-60111-0 * OIL SEAL 12-24-8* OIL SEAL 12-24-8
-
43345-65015-0 * O-RING 3.2-47* O-RING 3.2-47
-
449101E3-5620 BOLTBOLT
-
453GU-60001-0 BOLT 6-30BOLT 6-30
-
46309-64126-1 SHEAR PIN 4-24SHEAR PIN 4-24
-
47951503-0435 SPLIT PIN 4-35SPLIT PIN 4-35
-
483AB-65191-0 WATER PIPE ASSY (S)
for Transom "S"WATER PIPE ASSY (S)
for Transom "S" -
483AB-65192-0 WATER PIPE ASSY (L)
for Transom "L"WATER PIPE ASSY (L)
for Transom "L" -
493AB-65031-0 * GROMMET* GROMMET
-
50314-64103-0 PROPELLER ASSY (4.5")
Plastic OPT 3 x 188 x 110PROPELLER ASSY (4.5")
Plastic OPT 3 x 188 x 110 -
50309-64106-0 PROPELLER ASSY (6")
Plastic OPT 3 x 188 x 145PROPELLER ASSY (6")
Plastic OPT 3 x 188 x 145 -
503F0-64101-0 PROPELLER ASSY (7")
Plastic STD 3 x 188 x 178PROPELLER ASSY (7")
Plastic STD 3 x 188 x 178 -
503F0B64512-0 PROPELLER ASSY (6")
Aluminum W/Rubber Hub OPT 3 x 188 x 145PROPELLER ASSY (6")
Aluminum W/Rubber Hub OPT 3 x 188 x 145
