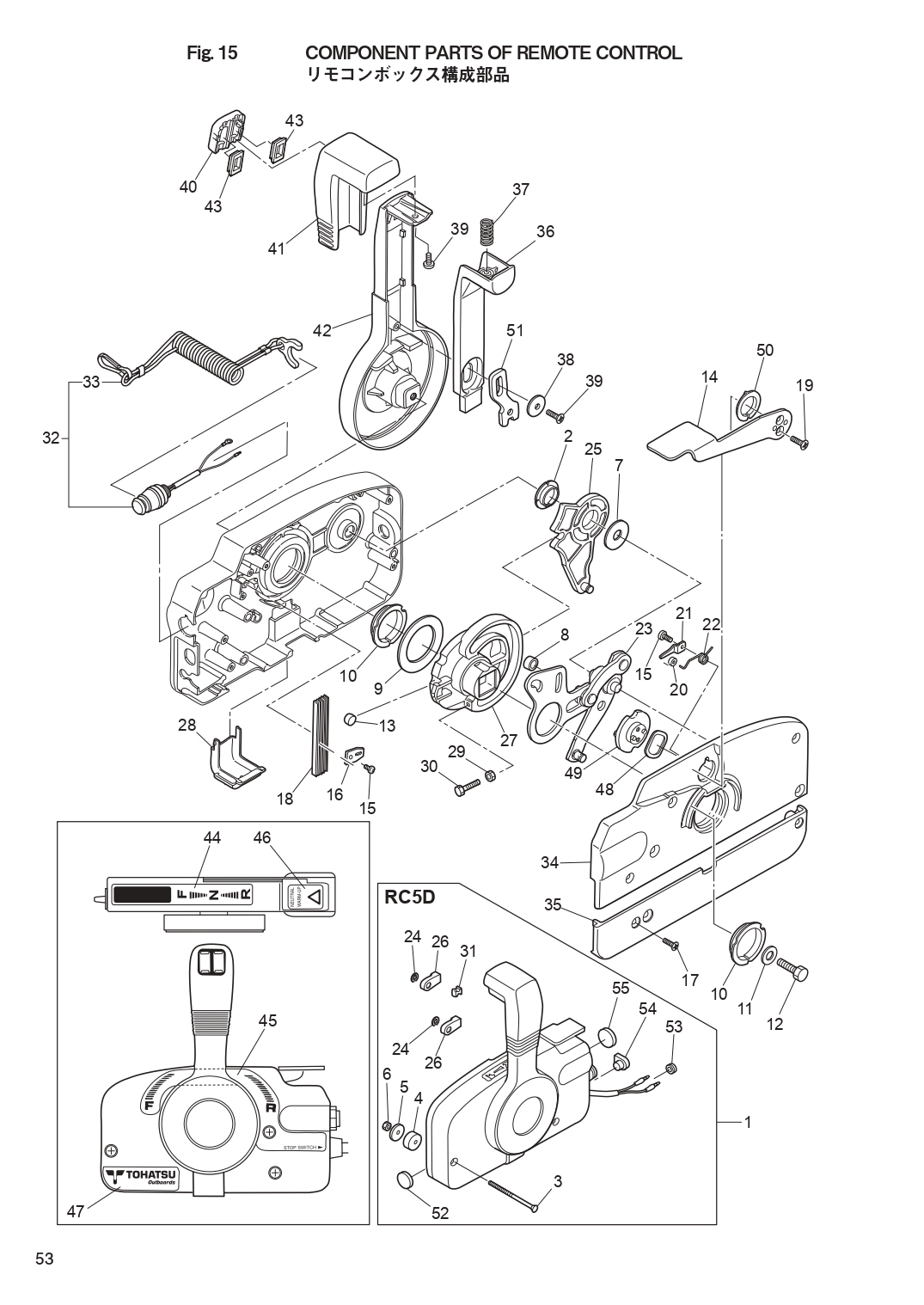

COMPONENT PARTS OF REMOTE CONTROL для Tohatsu MFS4C - 2017 года выпуска
-
№АртикулНазвание
-
13B7Q84360-2 REMOTE CONTROL HEAD ASSY (RC5D)REMOTE CONTROL HEAD ASSY (RC5D)
-
23A3-84432-0 * BUSHING* BUSHING
-
33A3-84375-0 * SCREW* SCREW
-
43A3-84374-0 * SPACER* SPACER
-
5353-84371-0 * WASHER* WASHER
-
6930103-0600 * NUT* NUT
-
73A3-84383-0 * WASHER* WASHER
-
83A3-84421-0 * ROLLER* ROLLER
-
93A3-84422-0 * THRUST PLATE* THRUST PLATE
-
103A3-84431-0 * BUSHING* BUSHING
-
11940103-0800 * WASHER* WASHER
-
123A3-84442-0 * BOLT* BOLT
-
13353-84388-0 * DETENT ROLLER* DETENT ROLLER
-
143B7Q84312-0 * FREE THROTTLE LEVER* FREE THROTTLE LEVER
-
15921503-0406 * SCREW* SCREW
-
163A3-84423-0 * DETENT RETAINER* DETENT RETAINER
-
17921603-0518 * SCREW* SCREW
-
183A3-84307-0 * DETENT SPRING* DETENT SPRING
-
19921603-0512 * SCREW* SCREW
-
203A3-84424-0 * FREE THROTTLE ROLLER* FREE THROTTLE ROLLER
-
213A3-84426-0 * ROLLER RETAINER* ROLLER RETAINER
-
223A3-84425-0 * FREE THROTTLE SPRING* FREE THROTTLE SPRING
-
233A3-84365-1 * THROTTLE ARM* THROTTLE ARM
-
24945303-0600 * E-RING d=6* E-RING d=6
-
253A3-84381-0 * SHIFT GEAR ASSY* SHIFT GEAR ASSY
-
263A3-83314-2 * CABLE TERMINAL* CABLE TERMINAL
-
273A3-84364-2 * DRIVE GEAR* DRIVE GEAR
-
283A3-84429-0 * WIRE COVER* WIRE COVER
-
29930103-0500 * NUT* NUT
-
30910103-0525 * BOLT* BOLT
-
313A3-84376-0 * GROMMET* GROMMET
-
32398-06830-0 * STOP SWITCH ASSY* STOP SWITCH ASSY
-
33353-06821-0 ** STOP SWITCH LANYARD ASSY** STOP SWITCH LANYARD ASSY
-
343B7Q84441-0 * REAR HOUSING* REAR HOUSING
-
353B7Q84366-0 * REAR PANEL* REAR PANEL
-
363A3-84401-0 * NEUTRAL LOCK ARM* NEUTRAL LOCK ARM
-
373A3-84403-0 * NEUTRAL LOCK SPRING* NEUTRAL LOCK SPRING
-
383A3-84407-0 * WASHER* WASHER
-
39921503-0510 * SCREW* SCREW
-
403A3-84451-0 * TILT SWITCH COVER* TILT SWITCH COVER
-
413A3-84404-0 * GRIP* GRIP
-
423B7Q84343-0 * CONTROL LEVER* CONTROL LEVER
-
433A3-84452-0 * TILT SWITCH PLUG* TILT SWITCH PLUG
-
443N5-84336-0 * SHIFT POSITION DECAL* SHIFT POSITION DECAL
-
453N5-84465-0 * SHIFT POSITION SIDE DECAL* SHIFT POSITION SIDE DECAL
-
463N5-84331-0 * DECAL (LEVER)* DECAL (LEVER)
-
473N5-84333-0 * DECAL (TOHATSU)* DECAL (TOHATSU)
-
483A3-84368-0 * WAVE WASHER* WAVE WASHER
-
493A3-84391-0 * FREE THROTTLE DRUM* FREE THROTTLE DRUM
-
503A3-84435-0 * BUSHING* BUSHING
-
513A3-84406-0 * PLATE* PLATE
-
52361-84414-0 * GROMMET* GROMMET
-
53369-84418-0 * GROMMET* GROMMET
-
54353-84321-0 * GROMMET* GROMMET
-
55369-84416-0 * GROMMET* GROMMET
