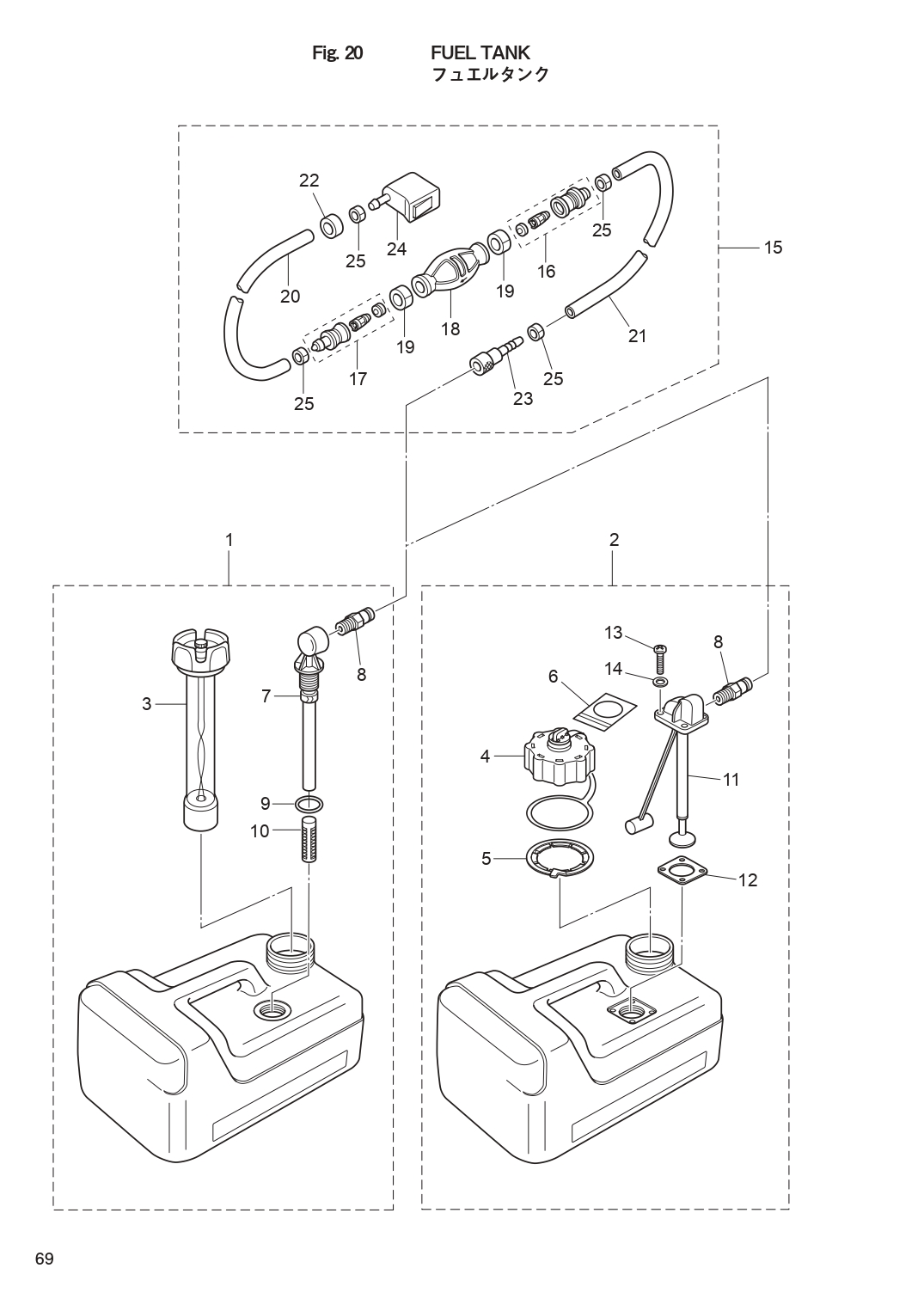

FUEL TANK для Tohatsu MFS9.8B - 2017 года выпуска

№

Артикул

Название
1

3B2-70167-1 FUEL TANK ASSY 12L
STD

FUEL TANK ASSY 12L
STD

16 760 ₽
2

3V1-70167-2 FUEL TANK ASSY 12L
Low Permeation Parts for USA Model

FUEL TANK ASSY 12L
Low Permeation Parts for USA Model

21 040 ₽
3

3B2-70050-2 * FUEL GAUGE VENT CAP ASSY (12L)
STD

* FUEL GAUGE VENT CAP ASSY (12L)
STD

3 770 ₽
4

3AC-70052-1 * FUEL TANK CAP ASSY
Low Permeation Parts for USA Model

* FUEL TANK CAP ASSY
Low Permeation Parts for USA Model

3 940 ₽
5

3AC-70055-0 * RETAINING RING
for USA Model

* RETAINING RING
for USA Model

690 ₽
6

3AC-70352-1 INSTRUCTION TAG
for USA Model

INSTRUCTION TAG
for USA Model

210 ₽
7

3B2-70155-0 *PICK-UP ELBOW ASSY (12L)
STD

*PICK-UP ELBOW ASSY (12L)
STD

1 450 ₽
8

3E0-70270-0 * QUICK-CONNECTOR (MALE)

* QUICK-CONNECTOR (MALE)

2 730 ₽
9

3C7-70199-0 * O-RING
STD

* O-RING
STD

270 ₽
10

3C7-70113-0 * FILTER
STD

* FILTER
STD

710 ₽
11

3V1-70157-0 * FUEL PICK-UP ASSY W/GAUGE
for USA Model

* FUEL PICK-UP ASSY W/GAUGE
for USA Model

3 120 ₽
12

3AC-70150-0 * GASKET
for USA Model

* GASKET
for USA Model

520 ₽
13

3AC-70140-0 * SCREW
for USA Model

* SCREW
for USA Model

150 ₽
14

3AC-70145-0 * WASHER
for USA Model

* WASHER
for USA Model

120 ₽
15

3H6-70200-2 PRIMER BULB ASSY
STD

PRIMER BULB ASSY
STD

15 180 ₽
15

3AD-70200-2 PRIMER BULB ASSY
Low Permeation Parts for USA Model

PRIMER BULB ASSY
Low Permeation Parts for USA Model

14 740 ₽
16

3C7-70220-1 * JOINT ASSY (INLET)

* JOINT ASSY (INLET)

800 ₽
17

3C7-70224-1 * JOINT ASSY (OUTLET)

* JOINT ASSY (OUTLET)

800 ₽
18

3C7-70211-1 *PRIMER BULB
STD

*PRIMER BULB
STD

1 710 ₽
18

3GF-70211-1 * PRIMER BULB
Low Permeation Parts for USA Model

* PRIMER BULB
Low Permeation Parts for USA Model

5 810 ₽
19

3C7-70217-0 * CLAMP

* CLAMP

280 ₽
20

98AB-70-700 * HOSE
STD 98AB-701000

* HOSE
STD 98AB-701000

800 ₽
20

3GF-70241-1 * LOW PERMEATION HOSE L=700
Low Permeation Parts USA EPA-KRI-15G

* LOW PERMEATION HOSE L=700
Low Permeation Parts USA EPA-KRI-15G

2 960 ₽
21

98AB-701600 * HOSE
STD 98AB-701000 x2

* HOSE
STD 98AB-701000 x2

950 ₽
21

3GF-70240-1 * LOW PERMEATION HOSE L=1600
Low Permeation Parts USA EPA-KRI-15G

* LOW PERMEATION HOSE L=1600
Low Permeation Parts USA EPA-KRI-15G

5 900 ₽
22

3GR-70280-0 * FUEL CONNECTOR MARK
Yellow for USA Model see Owners Manual

* FUEL CONNECTOR MARK
Yellow for USA Model see Owners Manual

330 ₽
23

3GF-70281-0 * FUEL CONNECTOR

* FUEL CONNECTOR

2 790 ₽
24

3GR-70250-0 * FUEL CONNECTOR

* FUEL CONNECTOR

3 850 ₽
25

332-70201-0 * CLAMP

* CLAMP

270 ₽
