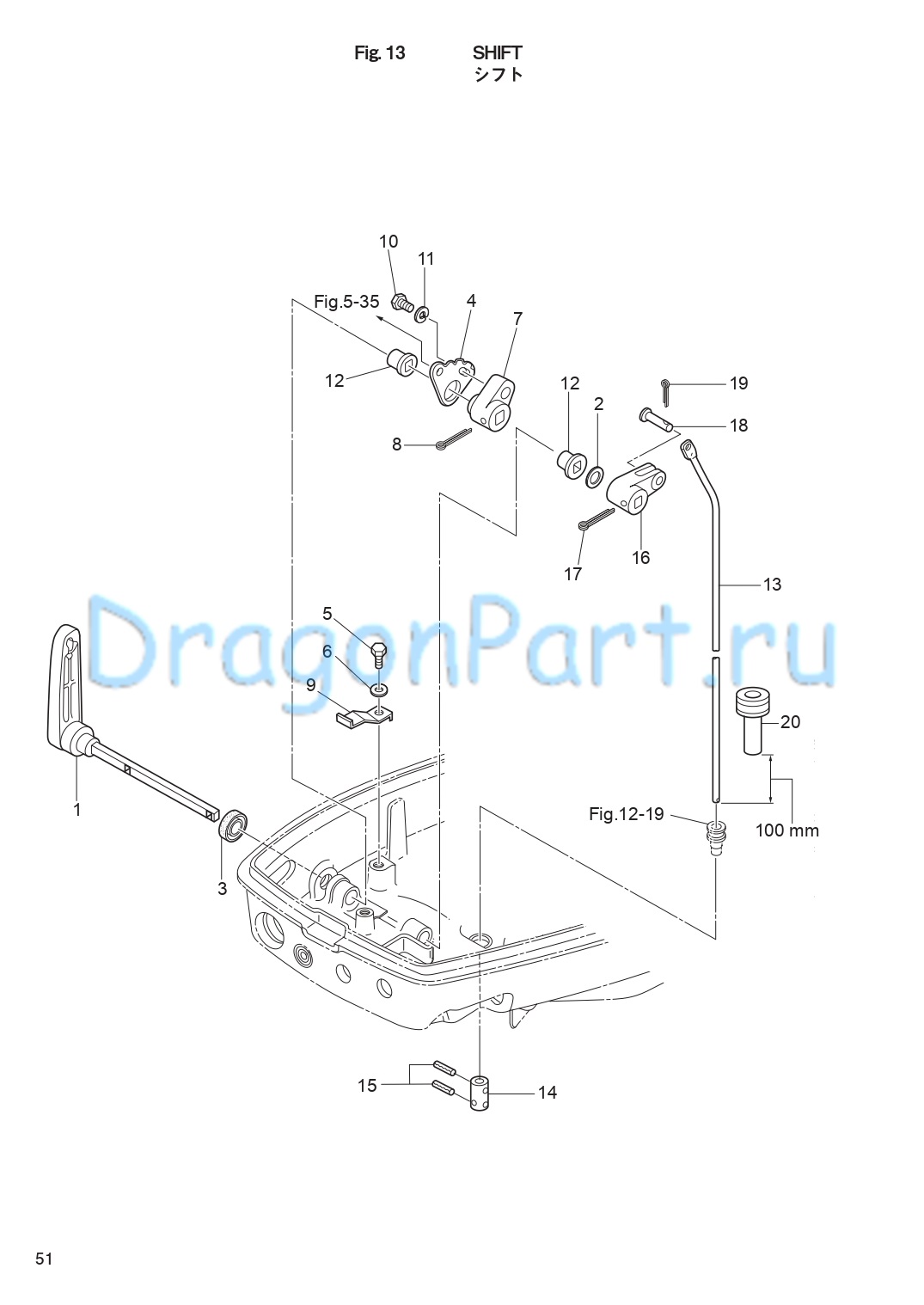

SHIFT для Tohatsu M15D2 - 2018 года выпуска
-
№АртикулНазвание
-
1350-66110-0 SHIFT LEVERSHIFT LEVER
-
2941403-1200 WAVE WASHER d=12WAVE WASHER d=12
-
33K9-66137-0 OIL SEAL 14-20-4.5OIL SEAL 14-20-4.5
-
4350-66121-0 SHIFT DETENTSHIFT DETENT
-
59101F4-0616 BOLTBOLT
-
6940103-0600 WASHERWASHER
-
7350-66115-0 SHIFT LEVER STOP ADJUSTSHIFT LEVER STOP ADJUST
-
8951503-2522 SPLIT PIN 2.5-22SPLIT PIN 2.5-22
-
93M4-66113-0 SHIFT DETENT SPRINGSHIFT DETENT SPRING
-
109101F4-0616 BOLTBOLT
-
11941303-0600 SPRING WASHERSPRING WASHER
-
12350-67101-0 BUSHINGBUSHING
-
13350-66214-0 SHIFT ROD (S)
for Transom "S"SHIFT ROD (S)
for Transom "S" -
13350-66215-0 SHIFT ROD (L)
for Transom "L" & "UL"SHIFT ROD (L)
for Transom "L" & "UL" -
14350-66241-0 SHIFT ROD JOINTSHIFT ROD JOINT
-
15951403-0312 SPRING PIN 3-12SPRING PIN 3-12
-
16350-66225-0 SHIFT ROD LEVERSHIFT ROD LEVER
-
17951503-2520 SPLIT PIN 2.5-20SPLIT PIN 2.5-20
-
18350-66223-0 PINPIN
-
19951503-1610 SPLIT PIN 1.6-10SPLIT PIN 1.6-10
-
203B7-67179-0 DRAIN PLUG (ENGINE BASEMENT)DRAIN PLUG (ENGINE BASEMENT)
