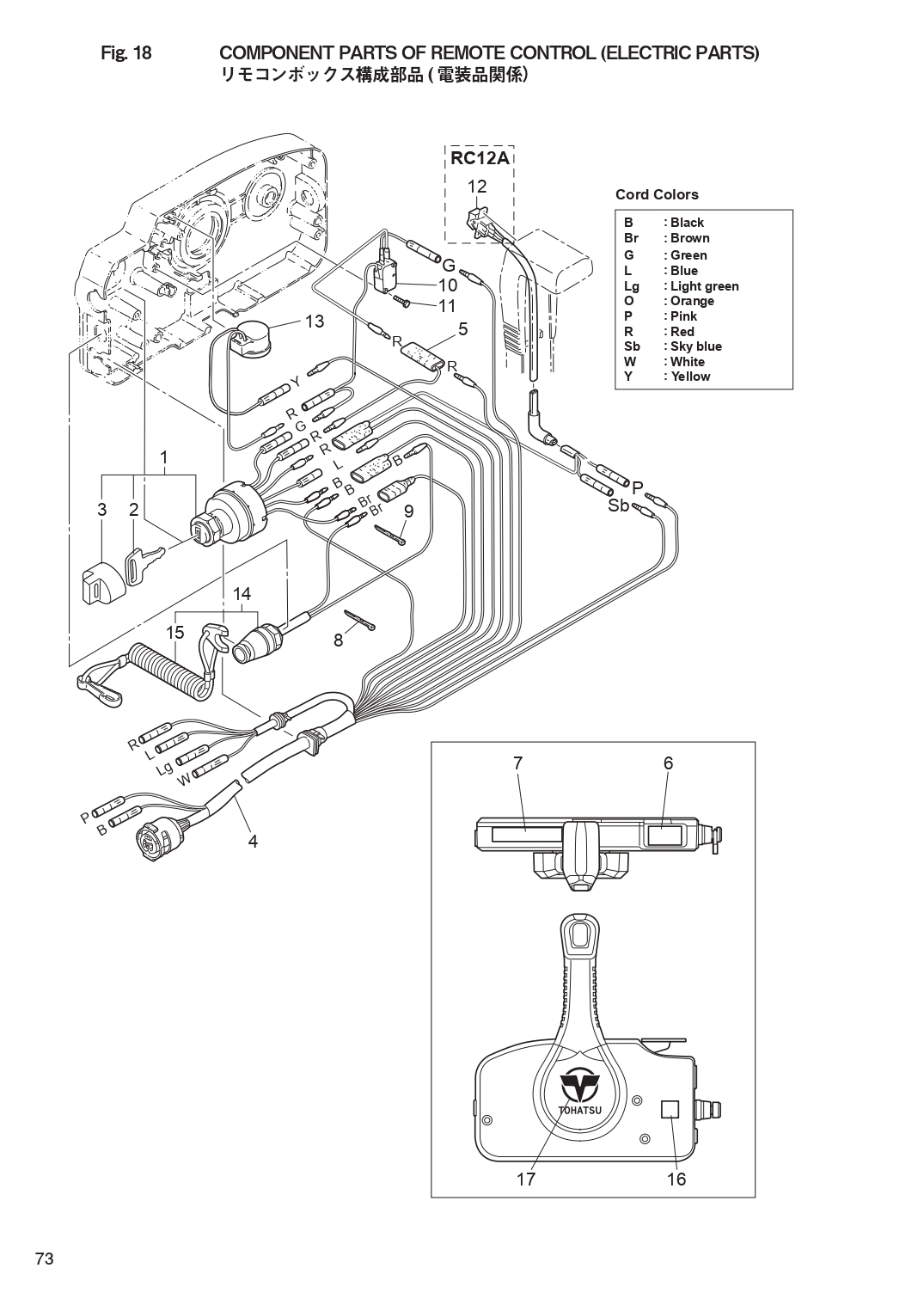

COMPONENT PARTS OF REMOTE CONTROL (ELECTRIC PARTS) для Tohatsu MFS15E - 2018 года выпуска
-
№АртикулНазвание
-
13GF-76020-0 MAIN SWITCH ASSYMAIN SWITCH ASSY
-
23GF-76217-0 * MAIN SWITCH KEY* MAIN SWITCH KEY
-
23GF-76218-0 * MAIN SWITCH KEY* MAIN SWITCH KEY
-
23GF-76219-0 * MAIN SWITCH KEY* MAIN SWITCH KEY
-
33GF-76205-0 * MAIN SWITCH KEY COVERING CAP* MAIN SWITCH KEY COVERING CAP
-
43A3-76115-1 CORD ASSY L=6200CORD ASSY L=6200
-
5353-72546-0 ASSIST CORD (RED) L=200ASSIST CORD (RED) L=200
-
63U2-84331-0 DECAL (LEVER)DECAL (LEVER)
-
73U2-84336-0 SHIFT POSITION DECALSHIFT POSITION DECAL
-
83A3-84398-0 BANDBAND
-
93U2-84398-0 BANDBAND
-
103A3-76086-1 NEUTRAL SWITCH (REMOTE CONT)NEUTRAL SWITCH (REMOTE CONT)
-
11921503-5316 SCREWSCREW
-
123U2-72615-0 PTT SWITCH ASSY
RC12APTT SWITCH ASSY
RC12A -
133C8-76171-0 OVERHEAT BUZZEROVERHEAT BUZZER
-
143A3-06830-0 STOP SWITCH ASSYSTOP SWITCH ASSY
-
15353-06821-0 * STOP SWITCH LANYARD ASSY* STOP SWITCH LANYARD ASSY
-
163U2-72200-0 STOP SWITCH DECALSTOP SWITCH DECAL
-
173U2-84334-0 REMOTE CONTROL LOGO DECALREMOTE CONTROL LOGO DECAL
