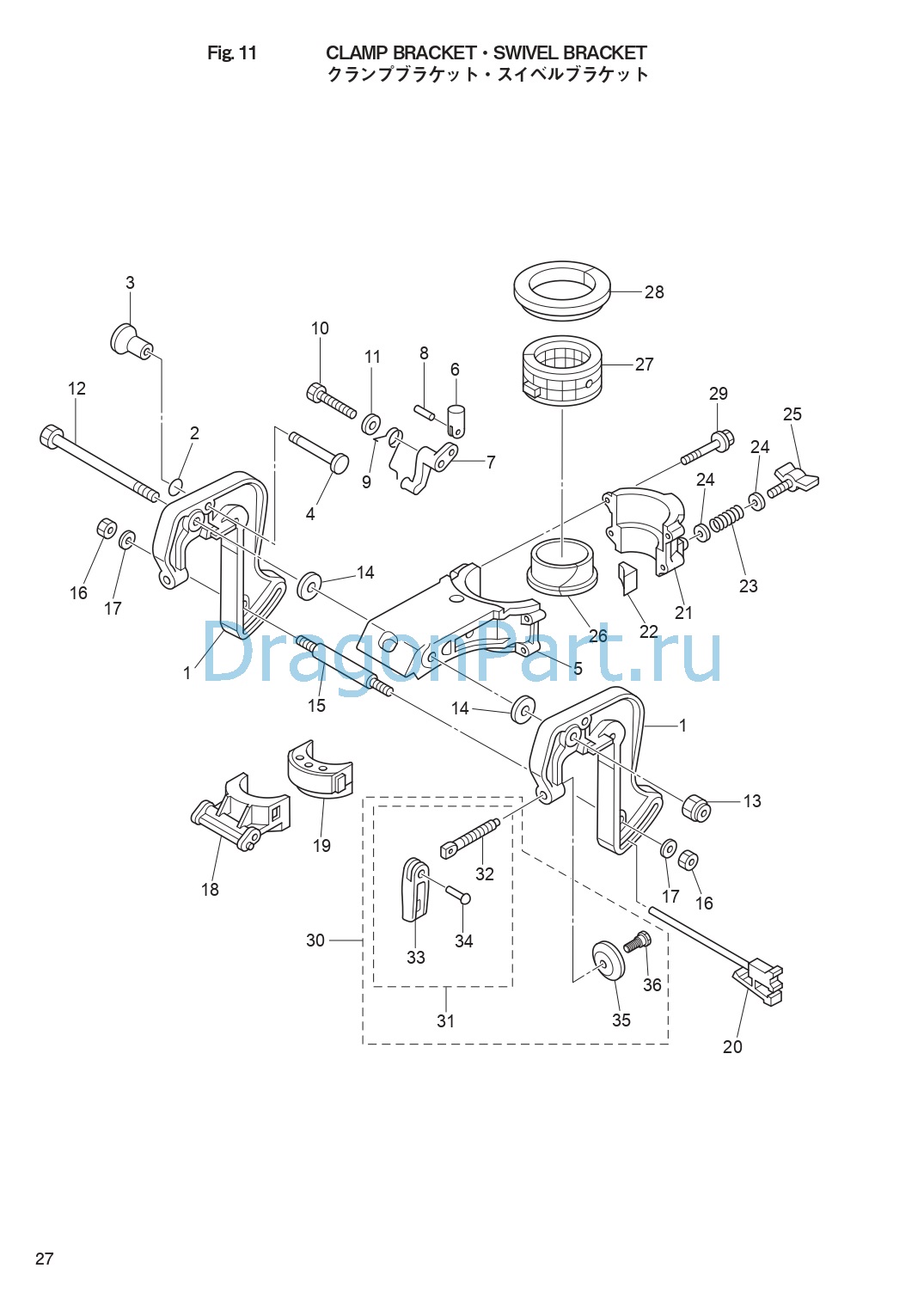

CLAMP BRACKET SWIVEL BRACKET для Tohatsu MFS2.5B - 2018 года выпуска
-
№АртикулНазвание
-
13ABQ62111-2 CLAMP BRACKETCLAMP BRACKET
-
2301-66023-0 O-RING 2.4-9.5O-RING 2.4-9.5
-
3309-62463-0 KNOBKNOB
-
43AB-62464-3 TILT STOPPERTILT STOPPER
-
53ABQ62391-1 SWIVEL BRACKETSWIVEL BRACKET
-
63AB-66334-1 STOPPERSTOPPER
-
73AB-63068-0 LEVERLEVER
-
8951403-0212 SPRING PIN 2-12SPRING PIN 2-12
-
93AB-66336-0 SPRINGSPRING
-
109161E3-0650 BOLTBOLT
-
119401E3-0600 WASHERWASHER
-
12309-62115-2 BOLT 8-122BOLT 8-122
-
13930403-0800 NYLON NUT 8-P1.25NYLON NUT 8-P1.25
-
14307-62116-1 WASHER 8.5-28-1WASHER 8.5-28-1
-
15309-62117-1 DISTANCE PIECEDISTANCE PIECE
-
16930103-0600 NUTNUT
-
179401E3-0600 WASHERWASHER
-
183AB-62212-0 THRUST SUPPORTERTHRUST SUPPORTER
-
193AB-61336-1 DAMPER (LOWER)DAMPER (LOWER)
-
203F0-62160-0 THRUST ROD ASSYTHRUST ROD ASSY
-
213ABQ62392-1 SWIVEL BRACKETSWIVEL BRACKET
-
22309-62441-2 FRICTION PIECEFRICTION PIECE
-
23309-62446-1 SPRINGSPRING
-
249401E3-0600 WASHERWASHER
-
253GT-62442-0 FRICTION KNOBFRICTION KNOB
-
263AB-62321-1 BUSHINGBUSHING
-
27393-62416-1 BUSHINGBUSHING
-
283H6-62325-0 THRUST BUSHINGTHRUST BUSHING
-
293V1-60001-1 BOLT 6-35BOLT 6-35
-
303GTQ62105-1 CLAMP SCREW KITCLAMP SCREW KIT
-
313GTQ62108-1 * CLAMP SCREW ASSY* CLAMP SCREW ASSY
-
32369-62106-1 ** CLAMP SCREW** CLAMP SCREW
-
333ABQ62102-0 ** CLAMP SCREW HANDLE** CLAMP SCREW HANDLE
-
343C8-62104-2 ** RIVET 3-22** RIVET 3-22
-
35332-62101-1 * CLAMP SCREW PAD* CLAMP SCREW PAD
-
363C8-62107-0 * SHOULDER BOLT* SHOULDER BOLT
