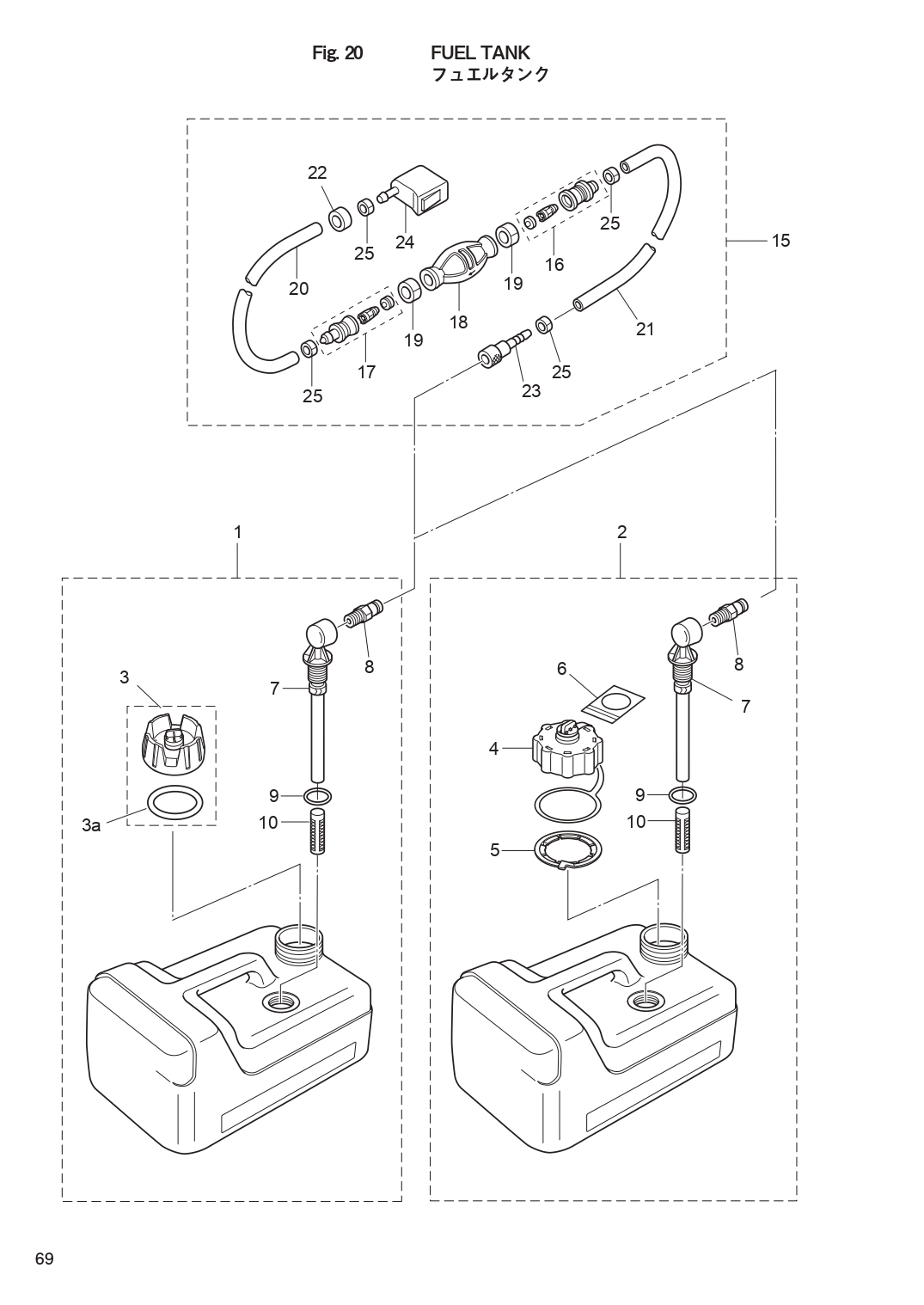

FUEL TANK для Tohatsu MFS8B - 2018 года выпуска
-
№АртикулНазвание
-
13RS-70167-0 FUEL TANK ASSY 12L
STDFUEL TANK ASSY 12L
STD -
23UA-70167-0 FUEL TANK ASSY 12L
Low Permeation Parts for USA ModelFUEL TANK ASSY 12L
Low Permeation Parts for USA Model -
33RS-70020-0 * FUEL TANK CAP ASSY (12L)
STD* FUEL TANK CAP ASSY (12L)
STD -
3a3RS-70021-0 ** TANK FILLER CAP GASKET** TANK FILLER CAP GASKET
-
43AC-70052-1 FUEL TANK CAP ASSY
for USA ModelFUEL TANK CAP ASSY
for USA Model -
53AC-70055-0 RETAINING RING
for USA ModelRETAINING RING
for USA Model -
63AC-70352-1 INSTRUCTION TAG
for USA ModelINSTRUCTION TAG
for USA Model -
73B2-70155-0 PICK-UP ELBOW ASSY (12L)
STDPICK-UP ELBOW ASSY (12L)
STD -
83E0-70270-0 QUICK-CONNECTOR (MALE)QUICK-CONNECTOR (MALE)
-
93C7-70199-0 O-RING
STDO-RING
STD -
103C7-70113-0 FILTER
STDFILTER
STD -
153H6-70200-2 PRIMER BULB ASSY
STDPRIMER BULB ASSY
STD -
153AD-70200-2 PRIMER BULB ASSY
Low Permeation Parts for USA ModelPRIMER BULB ASSY
Low Permeation Parts for USA Model -
163C7-70220-1 * JOINT ASSY (INLET)* JOINT ASSY (INLET)
-
173C7-70224-1 * JOINT ASSY (OUTLET)* JOINT ASSY (OUTLET)
-
183C7-70211-1 PRIMER BULB
STDPRIMER BULB
STD -
183GF-70211-1 * PRIMER BULB
Low Permeation Parts for USA Model* PRIMER BULB
Low Permeation Parts for USA Model -
193C7-70217-0 * CLAMP* CLAMP
-
2098AB-70-700 * HOSE
STD 98AB-701000* HOSE
STD 98AB-701000 -
203GF-70241-1 * LOW PERMEATION HOSE L=700
Low Permeation Parts for USA Model* LOW PERMEATION HOSE L=700
Low Permeation Parts for USA Model -
2198AB-701600 * HOSE
STD 98AB-701000 x2* HOSE
STD 98AB-701000 x2 -
213GF-70240-1 * LOW PERMEATION HOSE L=1600
Low Permeation Parts for USA Model* LOW PERMEATION HOSE L=1600
Low Permeation Parts for USA Model -
223GR-70280-0 * FUEL CONNECTOR MARK
Yellow for USA Model see Owners Manual* FUEL CONNECTOR MARK
Yellow for USA Model see Owners Manual -
233GF-70281-0 * FUEL CONNECTOR* FUEL CONNECTOR
-
233GF-70281-0 * FUEL CONNECTOR* FUEL CONNECTOR
-
243GR-70250-0 * FUEL CONNECTOR* FUEL CONNECTOR
-
25332-70201-0 * CLAMP* CLAMP
