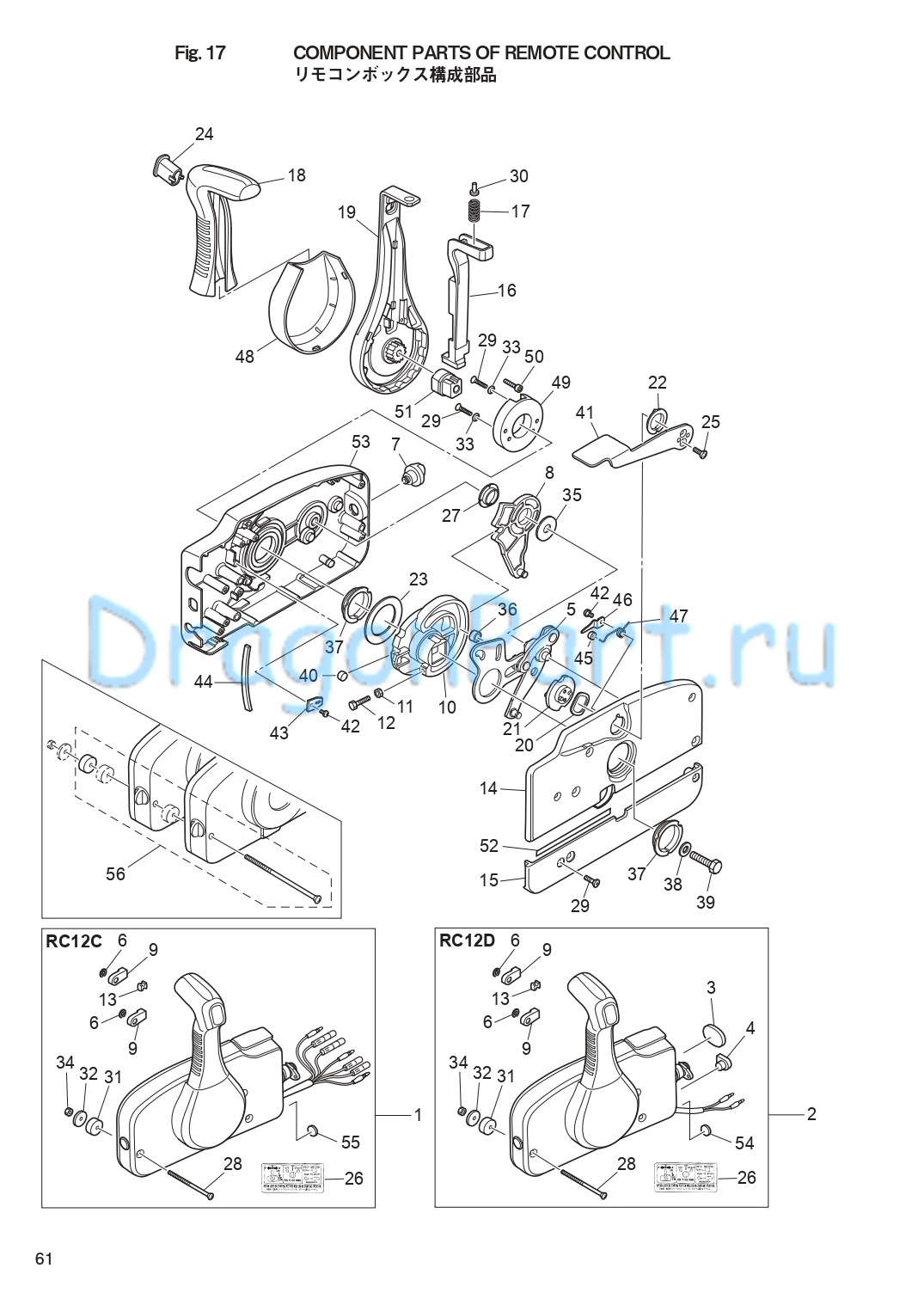

COMPONENT PARTS OF REMOTE CONTROL для Tohatsu M15D2 - 2019 года выпуска
-
№АртикулНазвание
-
23U2B84360-0 REMOTE CONTROL HEAD ASSY(RC12D)
OPTREMOTE CONTROL HEAD ASSY(RC12D)
OPT -
33U2-84416-0 * GROMMET
RC12D* GROMMET
RC12D -
4353-84321-0 * GROMMET
RC12D* GROMMET
RC12D -
53A3-84365-1 * THROTTLE ARM* THROTTLE ARM
-
6945303-0600 * E-RING d=6* E-RING d=6
-
73U2-84414-0 * GROMMET* GROMMET
-
83A3-84381-0 * SHIFT GEAR ASSY* SHIFT GEAR ASSY
-
93A3-83314-2 * CABLE TERMINAL* CABLE TERMINAL
-
103A3-84364-2 * DRIVE GEAR* DRIVE GEAR
-
11930103-0500 * NUT* NUT
-
12910103-0525 * BOLT* BOLT
-
133A3-84376-0 * GROMMET* GROMMET
-
143U2B84441-0 * REAR HOUSING* REAR HOUSING
-
153U2B84366-0 * REAR PANEL* REAR PANEL
-
163U2-84401-0 * NEUTRAL LOCK ARM* NEUTRAL LOCK ARM
-
173A3-84403-0 * NEUTRAL LOCK SPRING* NEUTRAL LOCK SPRING
-
183U2-84404-0 * GRIP* GRIP
-
193U2-84343-0 * CONTROL LEVER* CONTROL LEVER
-
203A3-84368-0 * WAVE WASHER* WAVE WASHER
-
213A3-84391-0 * FREE THROTTLE DRUM* FREE THROTTLE DRUM
-
223A3-84435-0 * BUSHING* BUSHING
-
233A3-84422-0 * THRUST PLATE* THRUST PLATE
-
243U2-84452-0 * TILT SWITCH PLUG* TILT SWITCH PLUG
-
25921603-0512 * SCREW* SCREW
-
263U2-84339-0 INSTRUCTION DECALINSTRUCTION DECAL
-
273A3-84432-0 * BUSHING* BUSHING
-
283U2-84375-0 *SCREW*SCREW
-
293VK-84375-0 *SCREW*SCREW
-
303VL-84375-0 *SCREW*SCREW
-
313A3-84374-0 * SPACER* SPACER
-
32353-84371-0 * WASHER* WASHER
-
333U2-84371-0 *WASHER*WASHER
-
34930103-0600 * NUT* NUT
-
353A3-84383-0 * WASHER* WASHER
-
363A3-84421-0 * ROLLER* ROLLER
-
373U2-84431-0 * BUSHING* BUSHING
-
38940103-0800 * WASHER* WASHER
-
393U2-84442-0 * BOLT* BOLT
-
40353-84388-0 * DETENT ROLLER* DETENT ROLLER
-
413U2B84312-0 * FREE THROTTLE LEVER* FREE THROTTLE LEVER
-
42921503-0406 * SCREW* SCREW
-
433A3-84423-0 * DETENT RETAINER* DETENT RETAINER
-
443A3-84307-0 * DETENT SPRING* DETENT SPRING
-
453A3-84424-0 * FREE THROTTLE ROLLER* FREE THROTTLE ROLLER
-
463A3-84426-0 * ROLLER RETAINER* ROLLER RETAINER
-
473A3-84425-0 * FREE THROTTLE SPRING* FREE THROTTLE SPRING
-
483VK-63107-0 *COVER*COVER
-
493U2-63506-0 *HOLDER*HOLDER
-
503U2-84917-0 *BOLT*BOLT
-
513U2-77367-0 *JOINT*JOINT
-
523U2-72187-0 *CAUTION DECAL(SIGP)*CAUTION DECAL(SIGP)
-
533U2B84440-0 *FRONT HOUSING*FRONT HOUSING
-
54369-84418-0 * GROMMET
RC12D* GROMMET
RC12D -
563A3-81301-0 TWIN REMOTE CONTROL KIT
for Twin OutboardsTWIN REMOTE CONTROL KIT
for Twin Outboards
