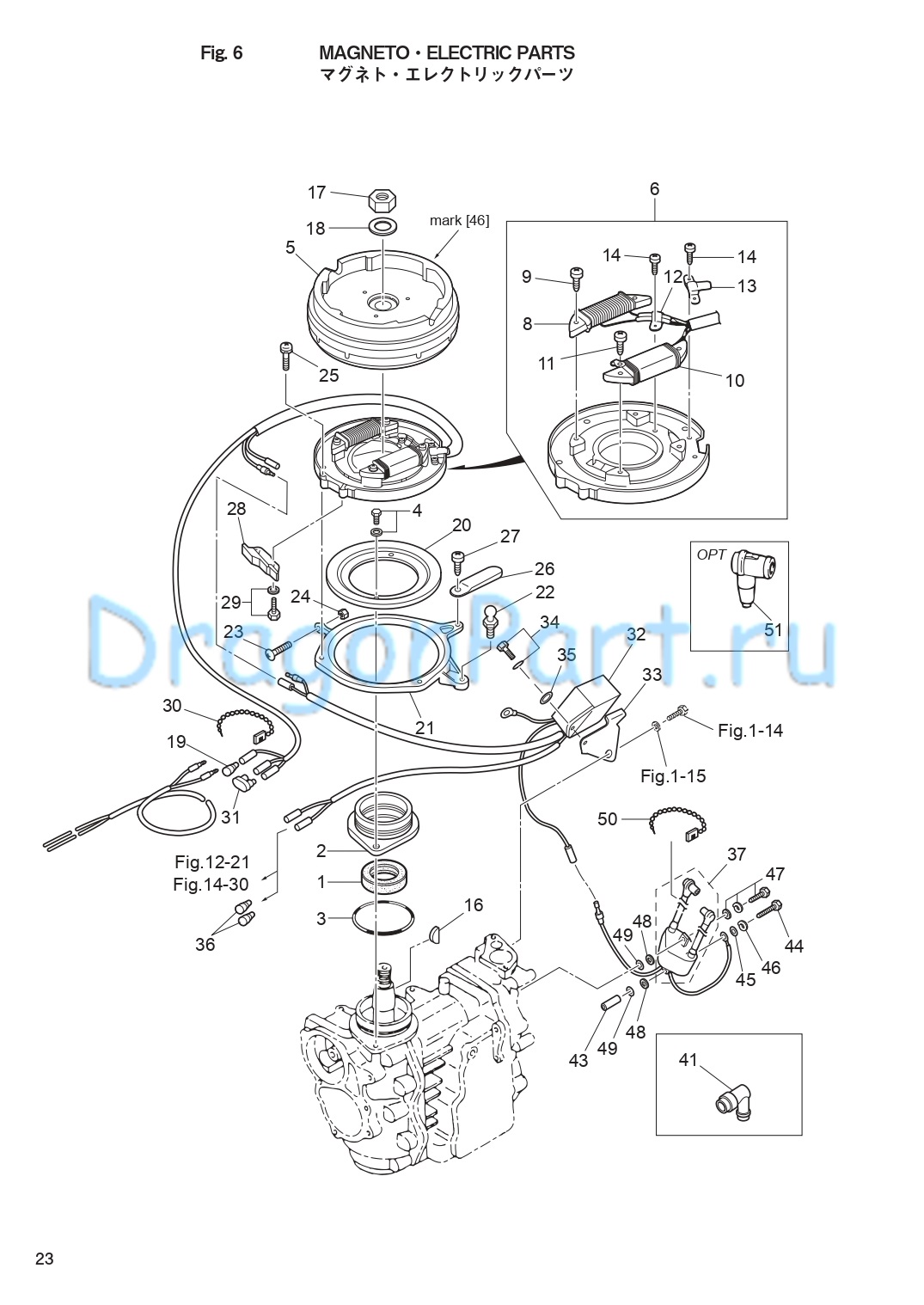

MAGNETO ELECTRIC PARTS для Tohatsu M18E2 - 2019 года выпуска
-
№АртикулНазвание
-
1350-00121-0 OIL SEAL 25-45-8OIL SEAL 25-45-8
-
2350-01401-0 MAGNETO BASEMENTMAGNETO BASEMENT
-
3338-01403-0 O-RING 2-55.5O-RING 2-55.5
-
4910121-6620 BOLTBOLT
-
53M3-06001-1 FLYWHEEL
FF 5114 mark 46FLYWHEEL
FF 5114 mark 46 -
63G2-06002-1 COIL PLATE ASSY W/ALTERNATORCOIL PLATE ASSY W/ALTERNATOR
-
83G2-06023-1 * ALTERNATOR ASSY* ALTERNATOR ASSY
-
9921521-6530 * SCREW
Alternator Assy* SCREW
Alternator Assy -
103G3-06021-1 * EXCITER COIL* EXCITER COIL
-
11921521-6525 * SCREW
Exciter Coil* SCREW
Exciter Coil -
123G2-06025-1 * HOLDER* HOLDER
-
13350-06025-0 * HOLDER* HOLDER
-
14921521-6406 SCREW
HolderSCREW
Holder -
16334-00131-0 KEY
MagnetoKEY
Magneto -
17931121-1600 NUTNUT
-
18334-00133-0 WASHER 17-30-1.6WASHER 17-30-1.6
-
193A3-76037-0 CABLE TERMINAL PLUGCABLE TERMINAL PLUG
-
20346-63722-2 GUIDE PLATEGUIDE PLATE
-
21350-63723-0 SETTING RINGSETTING RING
-
22346-05228-1 BALL JOINTBALL JOINT
-
23921503-0525 SCREWSCREW
-
24930103-0500 NUTNUT
-
25921521-6510 SCREWSCREW
-
263PR-06972-0 CLAMP 6.5-47.5PCLAMP 6.5-47.5P
-
27921503-5510 SCREWSCREW
-
283M3-63718-0 THROTTLE CAMTHROTTLE CAM
-
29910103-5514 BOLTBOLT
-
30336-76091-0 LEAD WIRE BAND 100LEAD WIRE BAND 100
-
31353-76037-0 CABLE TERMINAL PLUGCABLE TERMINAL PLUG
-
323G2-06060-2 CD UNIT
CU 2556CD UNIT
CU 2556 -
333G2-06061-1 CD UNIT BRACKETCD UNIT BRACKET
-
34910103-6616 BOLTBOLT
-
353C8-66308-0 WASHER 6-16-1.5WASHER 6-16-1.5
-
363A3-76037-0 CABLE TERMINAL PLUG
for EP TypeCABLE TERMINAL PLUG
for EP Type -
373G2-06040-4 IGNITION COIL W/R-CAPIGNITION COIL W/R-CAP
-
41346-06999-0 PLUG CAP W/RESISTANCEPLUG CAP W/RESISTANCE
-
47910103-7630 BOLTBOLT
-
49940103-0600 WASHERWASHER
-
50336-76091-0 LEAD WIRE BAND 100LEAD WIRE BAND 100
-
513C7-06921-0 PLUG CAP W/RESISTANCE
OPTPLUG CAP W/RESISTANCE
OPT
