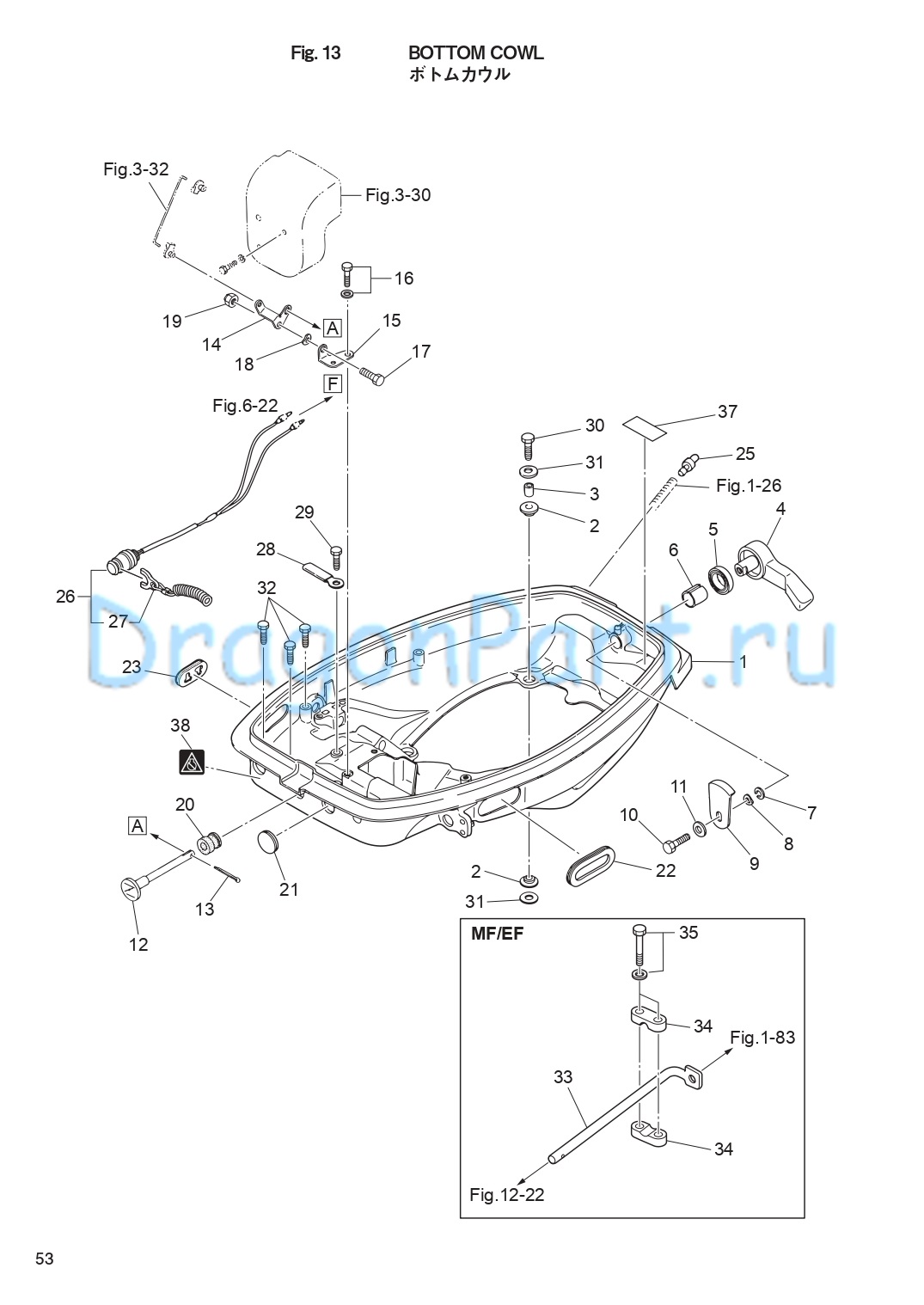

BOTTOM COWL для Tohatsu M25H - 2019 года выпуска
-
№АртикулНазвание
-
13KMQ67100-0 BOTTOM COWLBOTTOM COWL
-
2346-67113-0 MOUNT 8.5-14-2.5MOUNT 8.5-14-2.5
-
3346-67114-1 SPACER 6.2-9-15.7SPACER 6.2-9-15.7
-
4338Q67141-0 HOOK LEVERHOOK LEVER
-
5338-67147-0 SEAL RING 13.8-22-3.7SEAL RING 13.8-22-3.7
-
6350-67105-0 HOOK LEVER BUSHING 14-16.5-17.7HOOK LEVER BUSHING 14-16.5-17.7
-
73C8-67146-0 WASHER 14-22-1WASHER 14-22-1
-
8941403-1400 WAVE WASHER d=14WAVE WASHER d=14
-
9345-67142-1 COVER HOOKCOVER HOOK
-
10910103-0612 BOLTBOLT
-
113C8-66308-0 WASHER 6-16-1.5WASHER 6-16-1.5
-
12346-67151-1 CHOKE RODCHOKE ROD
-
13951503-0212 SPLIT PIN 2-12SPLIT PIN 2-12
-
14346-67152-0 CHOKE LEVERCHOKE LEVER
-
15346-67153-0 CHOKE LEVER BRACKETCHOKE LEVER BRACKET
-
16910103-5612 BOLTBOLT
-
17910103-0614 BOLTBOLT
-
18941403-0600 WAVE WASHER d=6WAVE WASHER d=6
-
19930403-0600 NYLON NUT 6-P1.0NYLON NUT 6-P1.0
-
20346-67104-0 CHOKE ROD BUSHINGCHOKE ROD BUSHING
-
21345-67161-0 GROMMET 22-3GROMMET 22-3
-
22346-83732-0 GROMMET 68-20-3
for EP TypeGROMMET 68-20-3
for EP Type -
22346-67165-0 GROMMET 68-20-2.8
for MF/EF TypeGROMMET 68-20-2.8
for MF/EF Type -
23353-67162-0 GROMMET 41-14-3GROMMET 41-14-3
-
253BA-01138-0 NIPPLE 6.8-3-10NIPPLE 6.8-3-10
-
26398-06830-0 STOP SWITCH ASSY
for MF/EF TypeSTOP SWITCH ASSY
for MF/EF Type -
27353-06821-0 * STOP SWITCH LANYARD ASSY* STOP SWITCH LANYARD ASSY
-
28336-06973-0 CLAMP 6-9.5L
for MF TypeCLAMP 6-9.5L
for MF Type -
29921503-5612 SCREW
for MF TypeSCREW
for MF Type -
309101E3-0630 BOLTBOLT
-
31346-67115-0 WASHER 6.5-21-1WASHER 6.5-21-1
-
32910121-0612 BOLTBOLT
-
33346-63061-2 THROTTLE SHAFT
for MF/EF TypeTHROTTLE SHAFT
for MF/EF Type -
34345-63063-0 THROTTLE SHAFT SUPPORT
for MF/EF TypeTHROTTLE SHAFT SUPPORT
for MF/EF Type -
35910103-7630 BOLTBOLT
-
37361-72026-0 SPARK PLUG DECAL (BR7HS10)SPARK PLUG DECAL (BR7HS10)
-
383AC-72200-0 STOP SWITCH DECALSTOP SWITCH DECAL
