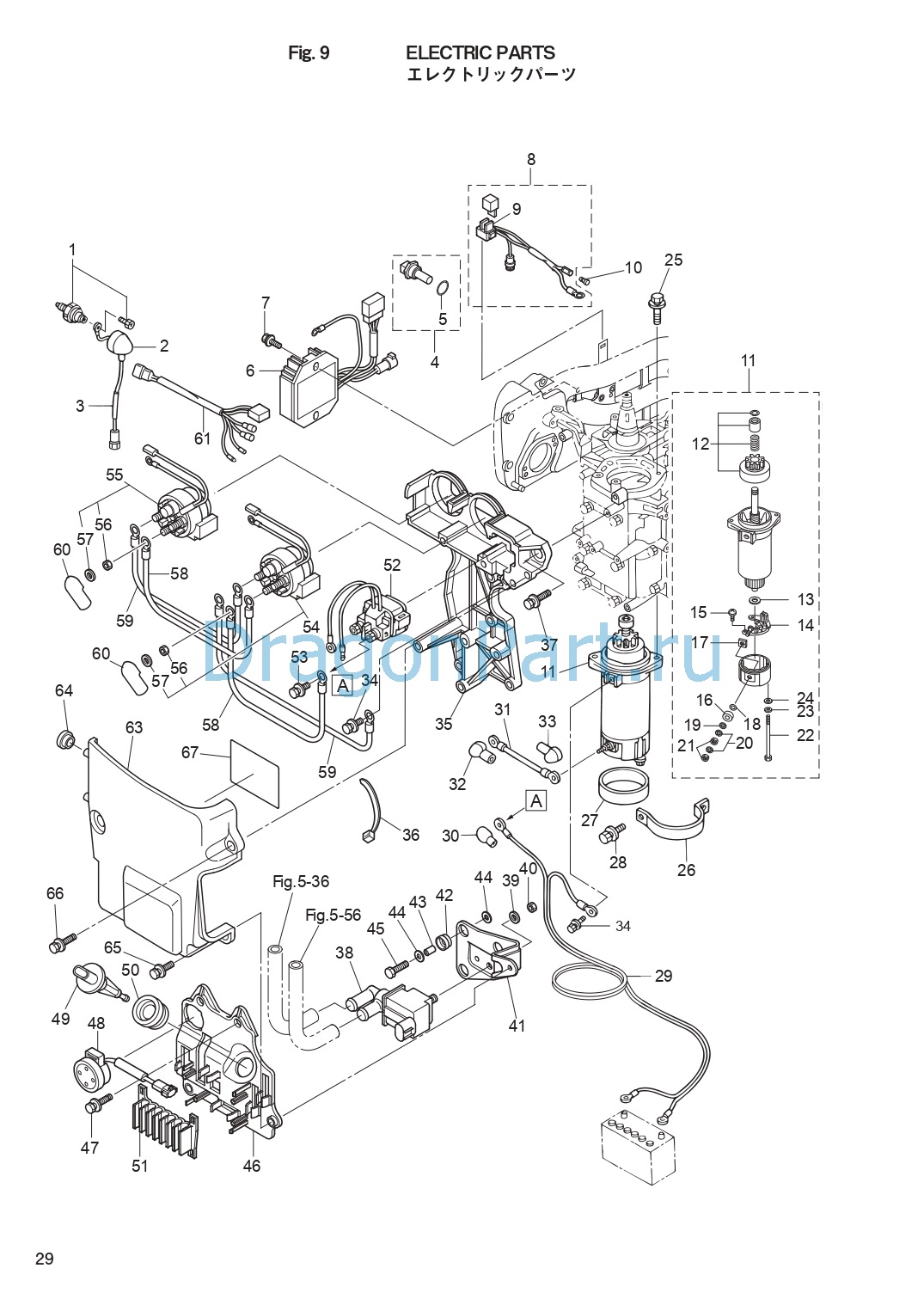

ELECTRIC PARTS для Tohatsu MFS30C - 2019 года выпуска
-
№АртикулНазвание
-
13H6-07611-0 OIL PRESSURE SWITCHOIL PRESSURE SWITCH
-
23KY-07612-0 GROMMETGROMMET
-
33AC-07613-0 OIL PRESSURE SWITCH LEAD WIRE L=160OIL PRESSURE SWITCH LEAD WIRE L=160
-
43Y9-72514-0 WATER TEMPERATURE SENSORWATER TEMPERATURE SENSOR
-
53G9-66136-0 * O-RING 2-10* O-RING 2-10
-
63AC-76065-2 RECTIFIER COMPLETE
except MF TypeRECTIFIER COMPLETE
except MF Type -
7910103-5625 BOLT
except MF TypeBOLT
except MF Type -
83AC-76066-0 FUSE WIRE ASSY
except MF TypeFUSE WIRE ASSY
except MF Type -
93T5-76247-0 * FUSE 20A* FUSE 20A
-
103A3-76037-0 CABLE TERMINAL PLUG
except MF TypeCABLE TERMINAL PLUG
except MF Type -
113RS-76010-0 STARTER MOTOR ASSY
except MF TypeSTARTER MOTOR ASSY
except MF Type -
123RS-76015-0 * PINION ASSY* PINION ASSY
-
133GF-75015-0 * WASHER* WASHER
-
143GF-75014-0 * BRUSH HOLDER ASSY* BRUSH HOLDER ASSY
-
15921521-6408 * SCREW* SCREW
-
163GF-75016-0 * BUSHING 1* BUSHING 1
-
173GF-75017-0 * BUSHING 2* BUSHING 2
-
183GF-75018-0 * O-RING* O-RING
-
19940103-0600 * WASHER* WASHER
-
20941303-0600 * SPRING WASHER* SPRING WASHER
-
21930203-0600 * NUT* NUT
-
223GF-75019-0 * BOLT* BOLT
-
23941321-0500 * SPRING WASHER* SPRING WASHER
-
24940221-0500 * WASHER* WASHER
-
25910103-5830 BOLT
except MF TypeBOLT
except MF Type -
263R0-76009-0 STARTER MOTOR BAND
except MF TypeSTARTER MOTOR BAND
except MF Type -
273C8-76007-0 DAMPER
except MF TypeDAMPER
except MF Type -
28910103-5820 BOLT
except MF TypeBOLT
except MF Type -
293AC-76120-0 BATTERY CABLE L=2500
except MF TypeBATTERY CABLE L=2500
except MF Type -
303AA-76145-0 TERMINAL CAP 13-13-28
Red Battery Cable except MF TypeTERMINAL CAP 13-13-28
Red Battery Cable except MF Type -
313R3-76141-0 STARTER CABLE L=270
except MF TypeSTARTER CABLE L=270
except MF Type -
323Y1-76145-0 TERMINAL CAP 8-13-28
Red Starter Solenoid except MF TypeTERMINAL CAP 8-13-28
Red Starter Solenoid except MF Type -
333Y0-76145-0 TERMINAL CAP 8-18-28
Red Starter Motor except MF TypeTERMINAL CAP 8-18-28
Red Starter Motor except MF Type -
34910103-5612 BOLT
Starter Modor, Bracket except MF TypeBOLT
Starter Modor, Bracket except MF Type -
353AC-06901-0 BRACKETBRACKET
-
363T5-84398-0 BAND 104BAND 104
-
37910103-5625 BOLTBOLT
-
383AC-10211-0 ISC VALVE
Idle Speed Control ValveISC VALVE
Idle Speed Control Valve -
39940103-0600 WASHERWASHER
-
40930103-0600 NUTNUT
-
413AC-02501-0 PLATEPLATE
-
423AC-06920-0 RUBBER MOUNT 11.8-14-1.5RUBBER MOUNT 11.8-14-1.5
-
433A0-76079-0 COLLAR 6.2-9-7.4COLLAR 6.2-9-7.4
-
443C8-66308-0 WASHER 6-16-1.5WASHER 6-16-1.5
-
45910103-0620 BOLTBOLT
-
463AC-62004-0 CORD HOLDERCORD HOLDER
-
47910103-5625 BOLTBOLT
-
483AC-76171-0 OVERHEAT BUZZER
for MF/EF TypeOVERHEAT BUZZER
for MF/EF Type -
493AC-10215-0 MAT SENSOR
Manifold Air Temperature SensorMAT SENSOR
Manifold Air Temperature Sensor -
503AC-04319-0 GROMMET 8-2.5GROMMET 8-2.5
-
513AC-06135-0 HOLDERHOLDER
-
523H8-76040-0 STARTER SOLENOID
except MF TypeSTARTER SOLENOID
except MF Type -
53910103-5610 BOLT
except MF TypeBOLT
except MF Type -
543AC-72580-0 PTT SOLENOID SWITCH (A)
UP for PTT ModelPTT SOLENOID SWITCH (A)
UP for PTT Model -
553AC-72581-0 PTT SOLENOID SWITCH (B)
DN for PTT ModelPTT SOLENOID SWITCH (B)
DN for PTT Model -
56930103-0600 * NUT* NUT
-
57941303-0600 * SPRING WASHER* SPRING WASHER
-
583C7-72583-0 SOLENOID SWITCH CORD (B) L=150
Red(+) for PTT ModelSOLENOID SWITCH CORD (B) L=150
Red(+) for PTT Model -
593C8-72583-1 SOLENOID SWITCH CORD (B) L=150
Red(-) for PTT ModelSOLENOID SWITCH CORD (B) L=150
Red(-) for PTT Model -
603Y1-76145-0 TERMINAL CAP 8-13-28
Red Starter Solenoid for PTT ModelTERMINAL CAP 8-13-28
Red Starter Solenoid for PTT Model -
613AC-72569-0 EXTENSION CORD (PTT)
for PTT ModelEXTENSION CORD (PTT)
for PTT Model -
633AC-06919-0 COVER ASSYCOVER ASSY
-
64309-65032-0 GROMMET 10.2-8GROMMET 10.2-8
-
65910103-5616 BOLTBOLT
-
66910103-5620 BOLTBOLT
-
673AC-72028-0 WIRING DIAGRAM DECALWIRING DIAGRAM DECAL
