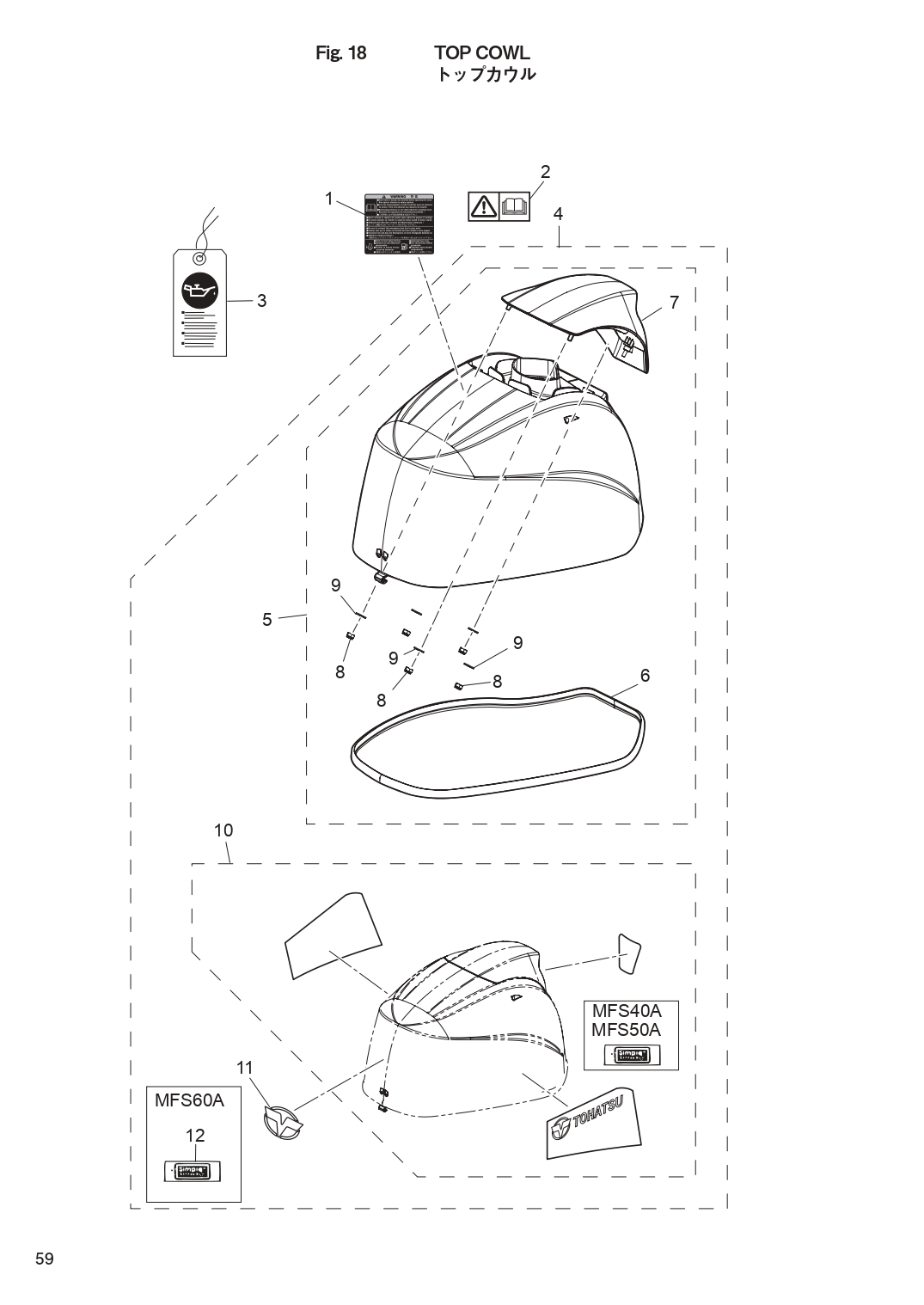

TOP COWL для Tohatsu MFS60A - 2019 года выпуска
-
№АртикулНазвание
-
13R0-72180-0 CAUTION DECAL (A)CAUTION DECAL (A)
-
13UW-72180-0 CAUTION DECAL (A)
for White ModelCAUTION DECAL (A)
for White Model -
23F0-72185-0 CAUTION DECAL
for EX/EU ModelCAUTION DECAL
for EX/EU Model -
33VJ-72044-0 OIL CAUTION TAGOIL CAUTION TAG
-
43URW67630-0 TOP COWL ASSY
for White ModelTOP COWL ASSY
for White Model -
43URQ67630-0 TOP COWL ASSYTOP COWL ASSY
-
53URQ67640-0 * TOP COWL SUB-ASSY* TOP COWL SUB-ASSY
-
53URW67640-0 * TOP COWL SUB-ASSY
for White Model* TOP COWL SUB-ASSY
for White Model -
63KY-67501-1 ** TOP COWL SEAL** TOP COWL SEAL
-
73KYQ67521-0 ** TILT HANDLE** TILT HANDLE
-
73KYW67521-0 ** TILT HANDLE
for White Model** TILT HANDLE
for White Model -
8930403-0600 ** NYLON NUT 6-P1.0** NYLON NUT 6-P1.0
-
93C8-66308-0 ** WASHER 6-16-1.5** WASHER 6-16-1.5
-
103UR-87801-0 * DECAL SET(MFS60A/AW)* DECAL SET(MFS60A/AW)
-
113UR-67580-0 * LOGO DECAL* LOGO DECAL
-
123UR-67538-0 * SIMPLIQ DECAL* SIMPLIQ DECAL
-
123WM-67538-0 * SIMPLIQ DECAL
for White Model* SIMPLIQ DECAL
for White Model
Все узлы модели:
- OPTIONAL PARTS (2)
- RIGGIN KIT (1)
- RIGGIN KIT (2)
- ASSEMBLY KIT PARTS
- CYLINDER CRANK CASE
- PISTON CRANK SHAFT
- CYLINDER HEAD OIL PUMP
- PULLEY TIMING BELT
- INTAKE MAINFOLD
- FUEL SYSTEM
- MAGNETO
- ELECTRIC PARTS (STARTER MOTOR)
- ELECTRIC PARTS
- DRIVE SHAFT (HOUSING)
- GEAR CASE (DRIVE SHAFT)
- GEAR CASE (PROPELLER SHAFT)
- BRACKET
- POWER TRIM AND TILT
- BOTTOM COWL
- SHIFT THROTTLE
- STEERING
- • TOP COWL
- FUEL TANK
- MULTI TILLER HANDLE
- COMPONENT PARTS OF REMOTE CONTROL
- COMPONENT PARTS OF REMOTE CONTROL (ELECTRIC PARTS)
- OPTIONAL PARTS ACCESSORIES
- OPTIONAL PARTS (1)
