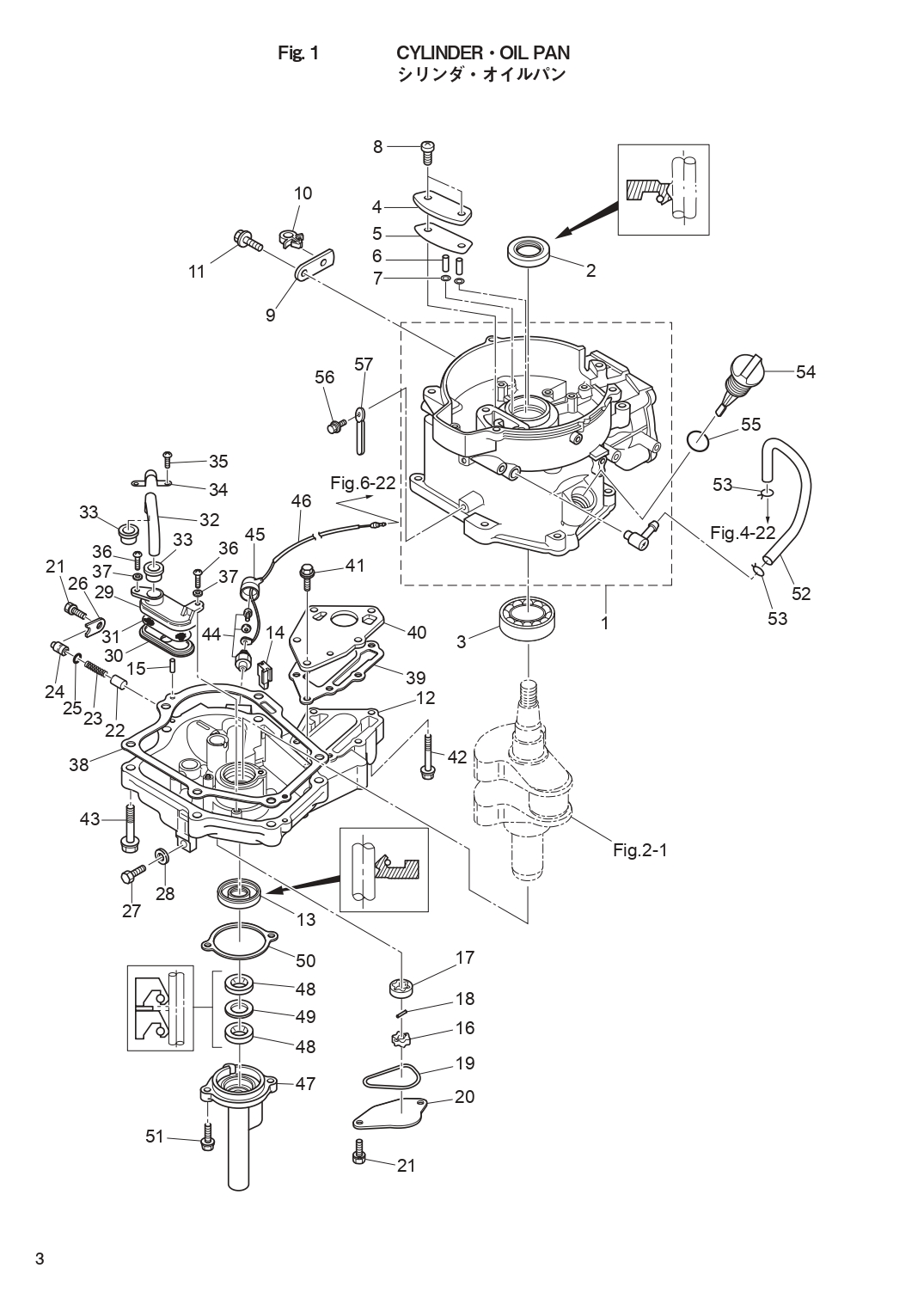

CYLINDER OIL PAN для Tohatsu MFS6C - 2019 года выпуска
-
№АртикулНазвание
-
23AB-00121-0 OIL SEAL 20-35-7OIL SEAL 20-35-7
-
39601-3-6205 BALL BEARING 6205
Upper BearingBALL BEARING 6205
Upper Bearing -
43ASB07431-0 BREATHER CHAMBER COVERBREATHER CHAMBER COVER
-
53AS-07432-0 GASKETGASKET
-
63R1-07439-0 COLLAR 8-10-20.1COLLAR 8-10-20.1
-
7941403-0500 WAVE WASHER d=5WAVE WASHER d=5
-
8921521-6616 SCREWSCREW
-
93GR-63505-0 CABLE HOLDERCABLE HOLDER
-
103GR-06973-0 CLAMP 6-9.5LCLAMP 6-9.5L
-
11910103-5612 BOLTBOLT
-
123AS-07709-0 OILPAN SUB-ASSYOILPAN SUB-ASSY
-
133GR-00122-0 OIL SEAL 25-40-8OIL SEAL 25-40-8
-
143H6-07404-0 GROMMETGROMMET
-
15345-01111-0 DOWEL PIN 6-12DOWEL PIN 6-12
-
163H6-07601-0 OIL PUMP ROTOR (INNER)OIL PUMP ROTOR (INNER)
-
173H6-07602-0 OIL PUMP ROTOR (OUTER)OIL PUMP ROTOR (OUTER)
-
183H6-07603-0 PINPIN
-
193R1-07605-0 O-RING φ3.1O-RING φ3.1
-
203H6-07606-0 OIL PUMP COVEROIL PUMP COVER
-
21910121-6616 BOLT
Oil Pump Cover Plunger CoverBOLT
Oil Pump Cover Plunger Cover -
223H6-07621-0 PLUNGER CONTROLPLUNGER CONTROL
-
233H6-07622-0 SPRINGSPRING
-
243H6-07623-0 SEATSEAT
-
25345-66021-0 O-RING 1.9-6.8O-RING 1.9-6.8
-
263H6-67115-0 PLUNGER COVERPLUNGER COVER
-
273H6-07705-1 DRAIN BOLT 10-14 P1.25DRAIN BOLT 10-14 P1.25
-
283H6-07406-0 WASHER 10.2-19-1WASHER 10.2-19-1
-
293H6-07411-0 STRAINER BODYSTRAINER BODY
-
303H6-07412-0 STRAINER CAPSTRAINER CAP
-
313H6-07413-0 MESHMESH
-
323H6-07415-0 PIPEPIPE
-
333H6-07416-0 SEALSEAL
-
343H6-07417-0 STRAINER STOPPERSTRAINER STOPPER
-
35921521-6512 SCREWSCREW
-
363C8-02420-0 BOLT 5-16BOLT 5-16
-
37940121-0500 WASHERWASHER
-
383H6-07402-0 OILPAN GASKETOILPAN GASKET
-
393H6-02305-0 EXHAUST COVER GASKETEXHAUST COVER GASKET
-
403H6-02302-1 EXHAUST COVER (INNER)EXHAUST COVER (INNER)
-
419101F4-5620 BOLTBOLT
-
429101F4-5640 BOLTBOLT
-
43910124-5840 BOLTBOLT
-
443H6-07611-0 OIL PRESSURE SWITCHOIL PRESSURE SWITCH
-
453KY-07612-0 GROMMETGROMMET
-
463GR-07613-0 OIL PRESSURE SWITCH LEAD WIRE L=240OIL PRESSURE SWITCH LEAD WIRE L=240
-
47369-01210-4 CRANKCASE HEADCRANKCASE HEAD
-
483GR-01215-0 OIL SEAL 10.1-25-7OIL SEAL 10.1-25-7
-
49369-01217-0 SPACER 19-24.8-1SPACER 19-24.8-1
-
50369-01214-0 CRANKCASE HEAD GASKETCRANKCASE HEAD GASKET
-
51910103-5620 BOLTBOLT
-
523R1-07435-0 BREATHER HOSEBREATHER HOSE
-
533C7-02215-0 CLIP φ12CLIP φ12
-
543H6-07421-0 OIL LEVEL GAUGEOIL LEVEL GAUGE
-
553H6-07422-0 O-RING 2.6-18.7O-RING 2.6-18.7
-
56910103-5612 BOLTBOLT
-
573PR-06972-0 CLAMP 6.5-47.5PCLAMP 6.5-47.5P
