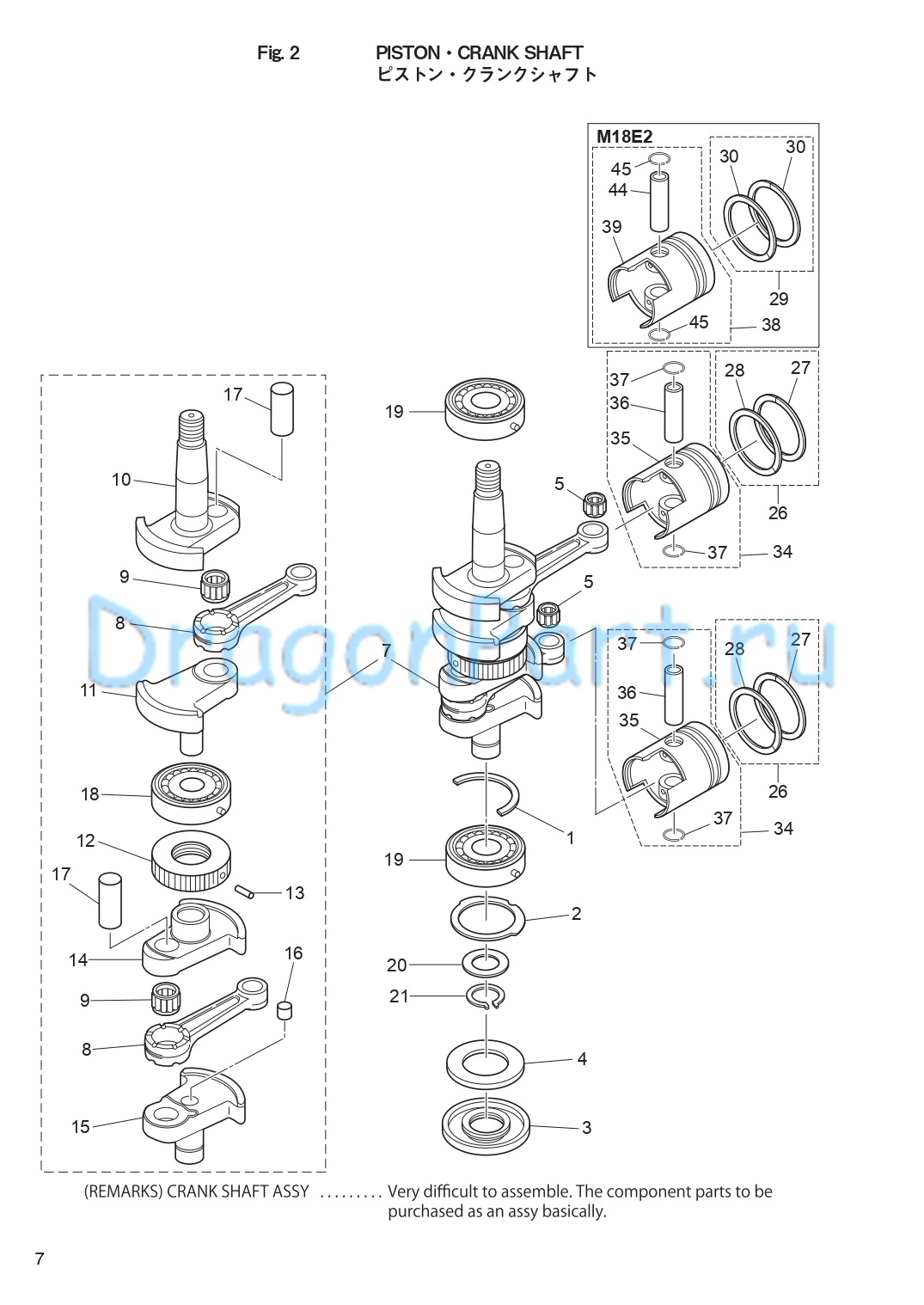

PISTON CRANK SHAFT для Tohatsu M15D2 - 2020 года выпуска
-
№АртикулНазвание
-
1350-00115-0 THRUST PLATETHRUST PLATE
-
2350-00107-0 THRUST PLATETHRUST PLATE
-
33M2-00122-0 OIL SEAL 25-62-9.5OIL SEAL 25-62-9.5
-
4362-00128-0 OIL SEALING RING 34-56.5-7.5OIL SEALING RING 34-56.5-7.5
-
53M3-00042-0 ROLLER BEARING 14-18-20
Small EndROLLER BEARING 14-18-20
Small End -
73M2-00069-1 CRANKSHAFT SUB-ASSYCRANKSHAFT SUB-ASSY
-
8350-00040-0 * CONNECTING ROD* CONNECTING ROD
-
93G4-00043-0 * ROLLER BEARING 20-26-16
Big End* ROLLER BEARING 20-26-16
Big End -
103M2-00031-1 * CRANKSHAFT A* CRANKSHAFT A
-
11350-00032-1 * CRANKSHAFT B* CRANKSHAFT B
-
12350-00051-1 * LABYRINTH PACKING* LABYRINTH PACKING
-
13951407-0308 * SPRING PIN 3-8* SPRING PIN 3-8
-
14350-00033-1 * CRANKSHAFT C* CRANKSHAFT C
-
15350-00034-2 * CRANKSHAFT D* CRANKSHAFT D
-
16350-00062-0 * SEALING PLUG
Crankshaft D* SEALING PLUG
Crankshaft D -
17350-00061-1 * CRANK PIN* CRANK PIN
-
189603-3-6305 * BALL BEARING
Center* BALL BEARING
Center -
199603-3-6305 BALL BEARING
Upper, LowerBALL BEARING
Upper, Lower -
20346-00116-0 SPACER 25.2-34-1.6SPACER 25.2-34-1.6
-
21945102-2500 C-RINGC-RING
-
263M2-87123-0 PISTON RING SET
STDPISTON RING SET
STD -
263M2-87124-0 PISTON RING SET (0.5 O/S)
OPTPISTON RING SET (0.5 O/S)
OPT -
273G2-00011-0 * PISTON RING
STD 1st* PISTON RING
STD 1st -
273G2-00014-0 * PISTON RING (0.5 O/S)
OPT 1st* PISTON RING (0.5 O/S)
OPT 1st -
28351-00011-0 * PISTON RING
STD 2nd* PISTON RING
STD 2nd -
28351-00014-0 * PISTON RING (0.5 O/S)
OPT 2nd* PISTON RING (0.5 O/S)
OPT 2nd -
343M2-87130-0 PISTON REPAIR KIT
STDPISTON REPAIR KIT
STD -
343M2-87131-0 PISTON REPAIR KIT (0.5 O/S)
OPTPISTON REPAIR KIT (0.5 O/S)
OPT -
35351-00001-2 * PISTON
STD* PISTON
STD -
35351-00004-2 * PISTON (0.5 O/S)
OPT* PISTON (0.5 O/S)
OPT -
36332-00021-1 * PISTON PIN* PISTON PIN
-
37350-00024-1 * PISTON PIN CLIP* PISTON PIN CLIP
